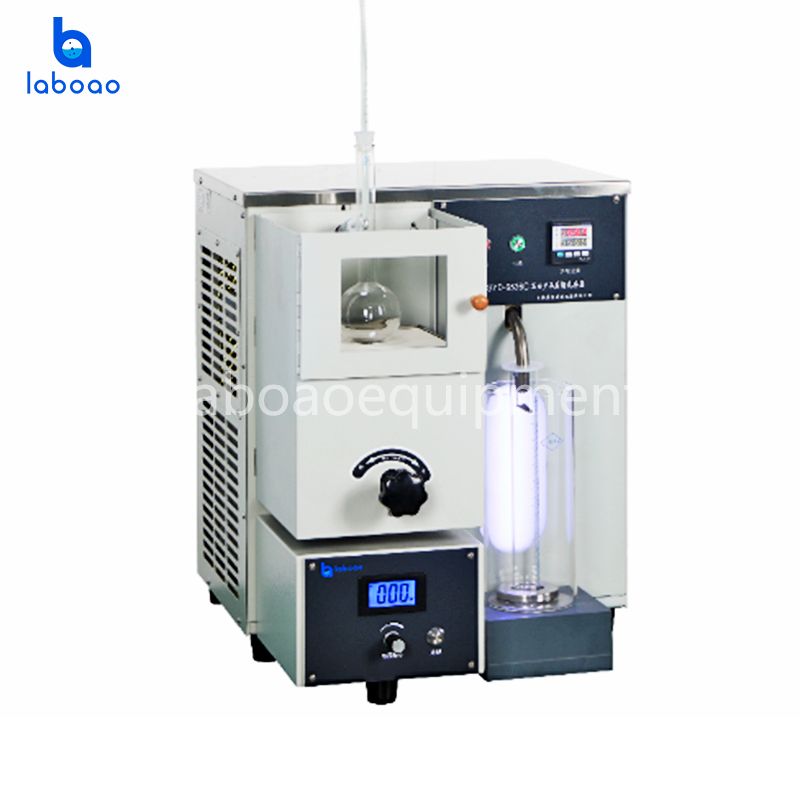

Petroleum Product Vacuum Distillation Tester

This instrument is used to measure the boiling point range of petroleum products that can partially or completely evaporate when the maximum temperature of the liquid reaches 400°C under reduced pressure.
  • BrandLABOAO
  • ModelLYD-9168A
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download


DESCRIPTION

This instrument is designed and made as per the national standard of People’s Republic of China GB/T 9168—1997(2004)Standard Test Method for Distillation of Petroleum Products at Reduced Pressure. It is used to determine the range of boiling points for petroleum products that can be partially or completely vaporized at a maximum liquid temperature of 400℃.

FEATURES

1. The vacuum degree is automatically controlled by the system, which can ensure the high vacuum and high stability of the system during the experiment.

2. With built-in condensate trap and semiconductor refrigeration technology, the temperature of condensate trap can be reduced to - 40 ℃ in 20 to 30 minutes.

3. The system automatically controls the cooling water temperature within ± 3 ℃ of the set temperature. After the experiment, the water in the circulating system will automatically flow back to the water tank. The water tank is equipped with liquid level observation window and overflow hole to prevent excessive water addition. The water tank is equipped with a liquid level switch, which refuses to heat and start the water pump without water.

4. The heating power of distillation flask is simple and intuitive, and can be adjusted at any time, with an adjustment accuracy of 0.5%.

5. The built-in upper and lower limit function of the instrument ensures the safety of the glass instrument.

6. Built in condensate automatic recovery system, the oil vapor captured in the condensate trap during the experiment will automatically flow into the recovery bottle after liquefaction with the temperature rise of the cold trap at the end of the experiment, which is convenient for users to remove and measure.

7. The system is equipped with nitrogen interface. After the experiment, the system will prompt the user to open the nitrogen valve to avoid the danger of air entering the vacuum system.

SPECIFICATIONS

Model

LYD-9168A

Power   supply

AC220V   50Hz.

Total   power consumption

1800W

Power   of flask heating furnace

(0500)W;   adjustable

Temperature   control range of condensate circulating water

Ambient+5℃(Min. 30℃)~80℃±3; adjustable

Working   Mode of condensate trap

Semiconductor   refrigeration.

Minimum   temperature

- 40 ;

Absolute   pressure setting

2mmhg,   5mmhg, 10mmhg, 20mmhg, 50mmhg

Absolute   pressure measurement range

(2.00-170.00)   mmHg ± 0.01 mmHg automatic constant pressure

Working   environment

Temperature:   15   ~ 35 ,

relative   humidity: 85%

Dimension

800mm×500mm×900mm

Net   Weight

78kg
