Using American Marlow semiconductor refrigeration sheet, the maximum temperature change rate is more than 5 degrees per second, and the number of cycles is more than 1,000,000 times. The product integrates various advanced technologies. Android operating system, color full-touch screen, gradient experiment, built-in WIFI module, mobile phone APP control, email reminder function, big data storage and expansion function, etc.
1. Adopt the special long-life Peltier module for the temperature circulator;
2. The engineering reinforced aluminum module treated by anodic oxidation technology not only retains the rapid thermal conductivity, but also has enough corrosion resistance;
3. Rapid rise and cooling rate, the fastest rise and cooling rate of 5 ℃ / s, save precious time experiment;

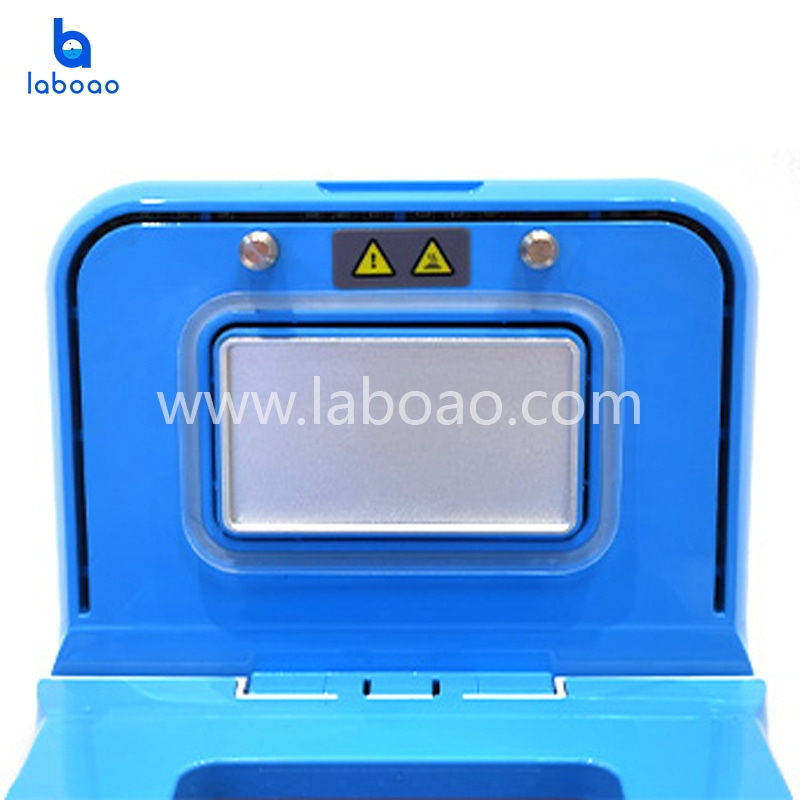

4. Retractable hot cover, suitable for test tubes of different heights;

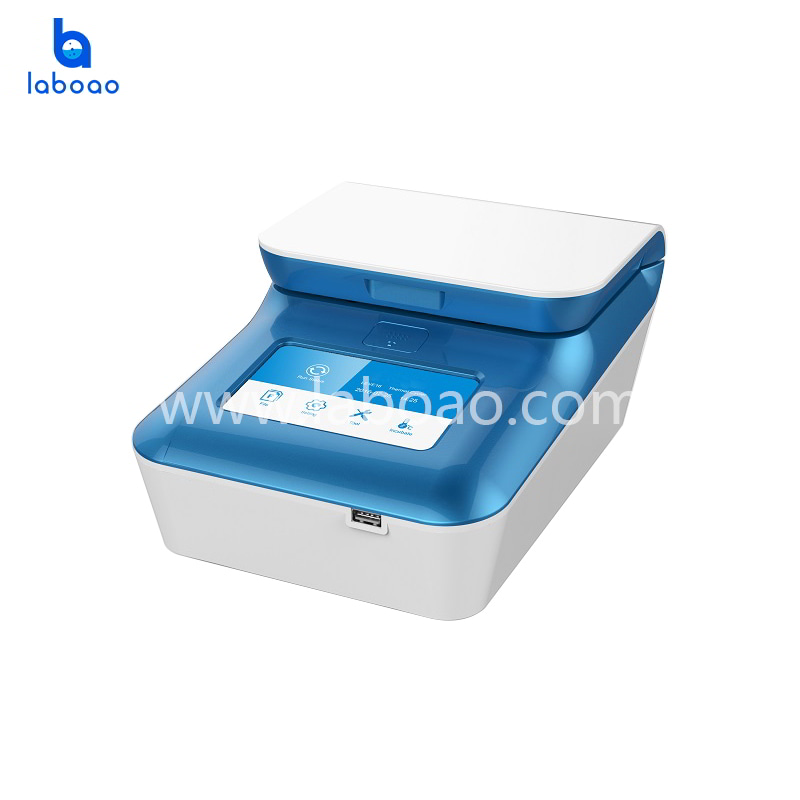

5. Color capacitive touch screen control, high definition TFT display (5 inches, 800 480 pixels), graphical menu navigation interface, extremely simple operation;
6. Built-in 11 standard program file templates, can quickly edit required files;
7. The program USES folder management, can be built directory;
8.Real-time display of program progress and remaining time, support intermediate programming of PCR instrument;
9. One-button rapid incubation function, to meet the needs of denaturation, enzyme digestion/enzyme ligation, ELISA and other experiments;
10. The hot cover temperature and working mode can be set to meet different experimental requirements;
11. Automatic power off protection. After the power is restored, the unfinished cycle will be executed automatically to ensure the safe operation of the whole process of amplification;
12. USB interface, support U inventory/PCR data, or use USB mouse to control PCR instrument;
13. Support U disk and LAN update software;
14. Built-in WIFI module enables one computer or mobile phone to control multiple PCR devices at the same time through network connection;
15. Support the function of sending email reminders after the end of the experimental program.
Model | LPCR-16G | LPCR-32G |

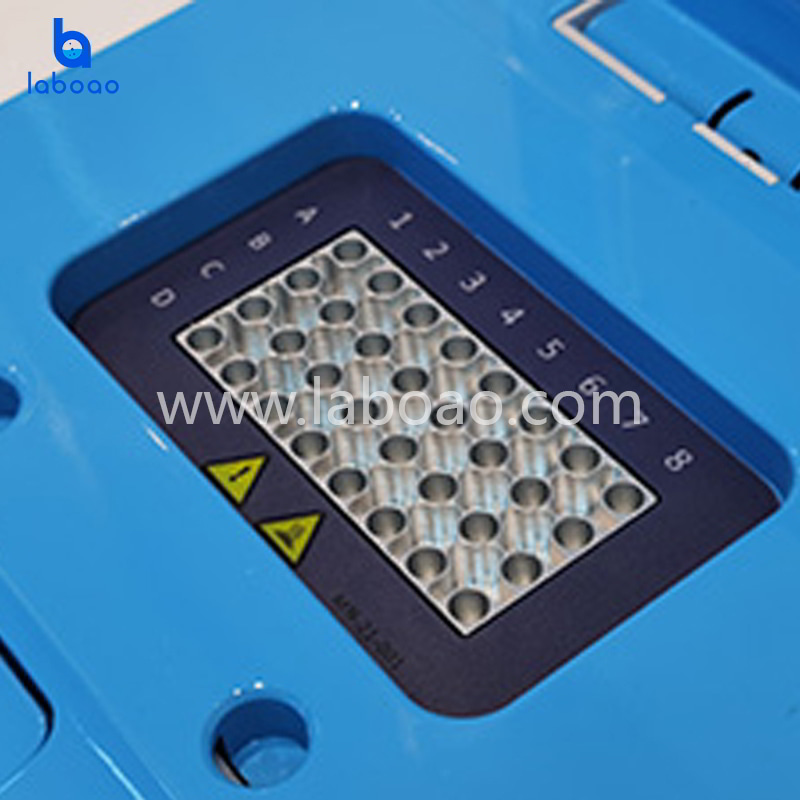

Capacity | 16×0.2ml(4×4arrangement) | 32×0.2ml(4×8arrangement) |
Tube | 0.2 ml single pipe | 0.2ml single tube, 8 tubes |
Temperature Range | 4~100℃ | |
MAX. Heating Rate | 5℃/s | |
MAX. Cooling Rate | 4℃/s | |
Uniformity | ≤±0.2℃ | |
Accuracy | ≤±0.2℃ | |
Display Resolution | 0.1℃ | |
Temperature Control | Block\Tube | |
Ramping Rate Adjustable | 0.1~5℃ | |
Gradient Temp. Range | — | 30~100℃ |
Gradient Spread | — | 1~30℃ |
Hot Lid Temperature | 30~110℃ | |
Number of Programs | 10000 +(USB FLASH) | |
Max. No. of Step | 30 | |
Max. No. of Cycle | 100 | |
Time Increment/Decrement | 1 Sec ~ 600 Sec | |
Temp. Increment/Decrement | 0.1~10.0℃ | |
Pause Function | Yes | |
Auto Data Protection | Yes | |
Hold at 4℃ | Forever | |
Language | Chinese/English | |
Computer Software | Yes | |
Mobile APP | Yes | |
LCD | 5 inch,800×480 pels, 65K colors | |
Communication | USB2.0 , WIFI | |
Dimensions | 267mm×190mm×115mm (L×W×H) | |
Weight | 3kg | 3.2kg |
Power Supply | 85~264VAC , 47~63Hz , 120 W | 85~264VAC , 47~63Hz , 200 W |
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
