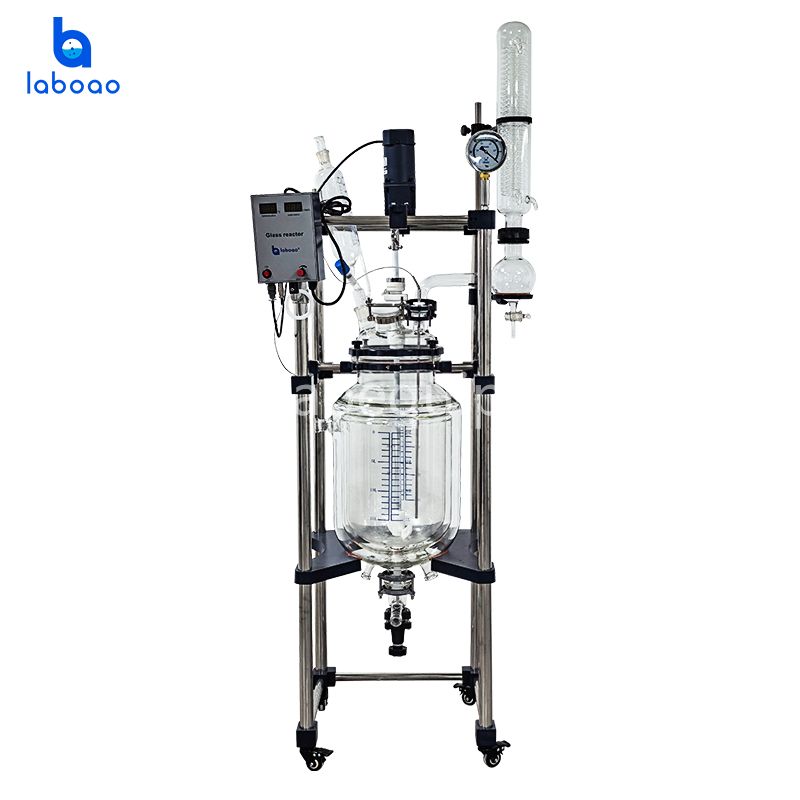

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
1.A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2.Wide range of temperature operations, from -60°C to 250°C.
3.Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4.The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5.Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6.Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.
8.The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.
30L, inner diameter 330mm,outer diameter 365mm, inner length 481mm
6ports of cover
Φ50mm flange port
50# ball mill port
Constant pressure funnel port
40# standard port
34# standard port
Temperature measure port
Φ45mm flange port
Solid feeding port
Φ80mm flange port，inner diameter Φ60mm matched with PTFE cover
Φ17*1000H(mm), leafing 190mm
Φ100*700H(mm), down with Φ60mm flange port
upper with Φ60mm flange port，left with 50# ball mill plug
Constant pressure funnel
2L, upper with 29# standard port matched with glass plug, down with 40# standard plug
34# standard plug valve，vent nozzle (pagoda connector), outer diameter 12mm
In and out circulation port of the sandwich
Φ45 flange port matched with ring flange, 4 points outside the wire adapter
Φ75mm flanger port，Φ33mm baiting port，inclined discharging port, (pagoda connector)Φ34mm，from floor 350mm
Vacuum suction nozzle
padoga connector,outer diameter 12mm
In and out circulation nozzle of condenser coil
padoga connector,outer diameter 15mm
Overall dimension (W*L*H)
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of jacketed glass reactor machine.
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
We assure you purchase our products are 100% certified products.
Provide 7*24 hours service telephone & support email to help you solve problems quickly.
Provide equipment installation, adjustment, operation training, etc.
1 Year Warranty
Free maintenance and accessories within warranty period(not caused by human factors).
