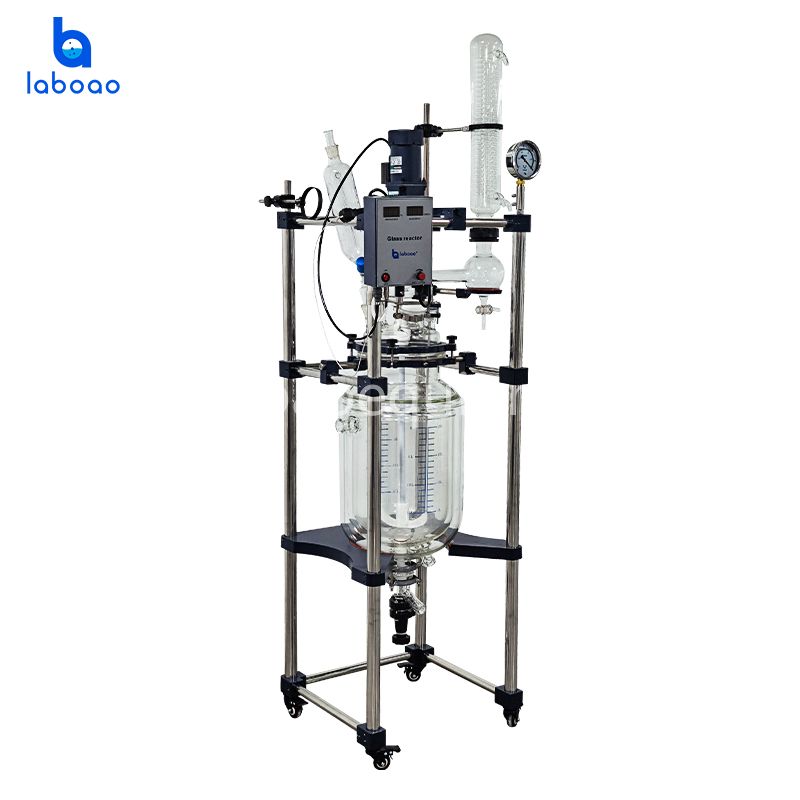

10-100L Three Layer Jacketed Glass Reactor

The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution.
  • BrandLABOAO
  • ModelLGR-T Series
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution. The inner jacket of the three-layer glass reactor is used for heating or cooling. The outer jacket is used for vacuuming, and the refrigerating or heating temperature of the materials in the kettle can be maintained as much as possible under the vacuum state of the outer interlayer. The materials are reacted in the reaction kettle, and after the reaction, the materials are discharged from the PTFE outlet at the bottom of the kettle.

FEATURES

1. Explosion-proof: explosion-proof motor and explosion-proof frequency converter;

2. Mechanical seal: The internal mechanical seal is a combination of moving and static rings, which is wear-resistant and corrosion-resistant, and has good sealing performance;

3. Stainless steel clamp: the kettle body and the kettle cover are connected by a stainless steel clamp for easy disassembly;

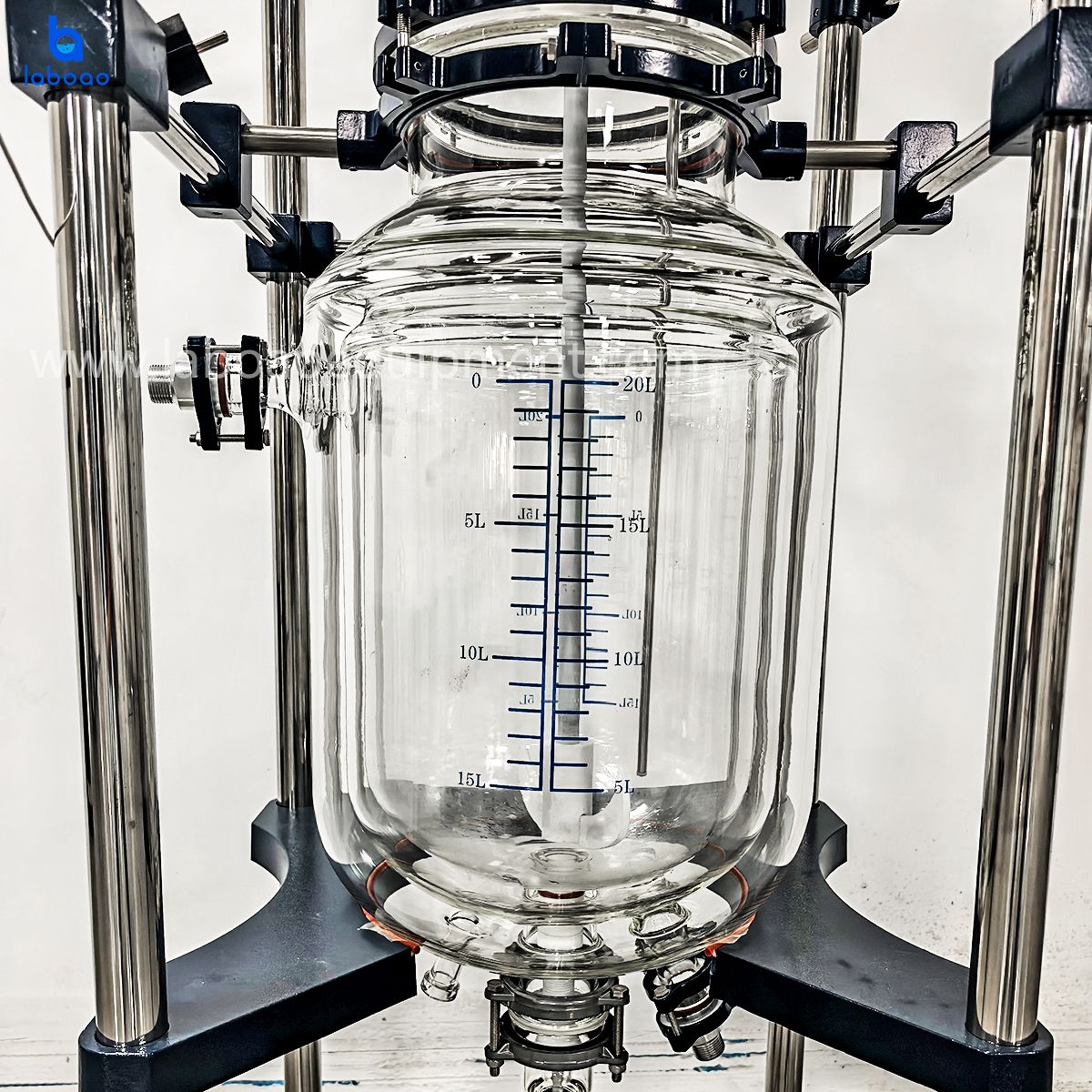

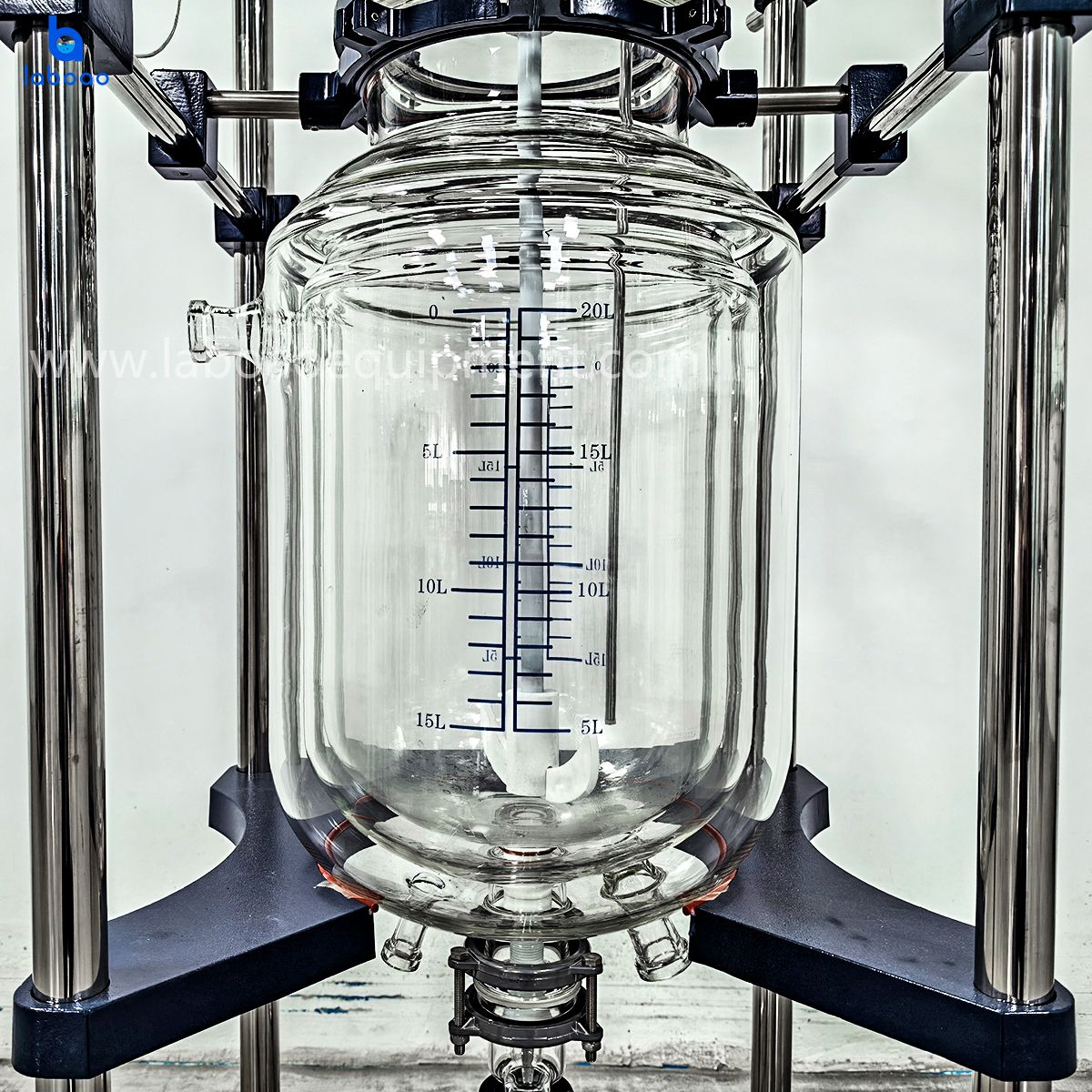

4. Three-layer kettle body: GG17 high borosilicate glass is used, which has good chemical and physical properties. High temperature 250℃ to low temperature -80℃ in large temperature range;

5. Circulating medium import and export: the interface adopts the screw type, which is convenient to connect the temperature control equipment;

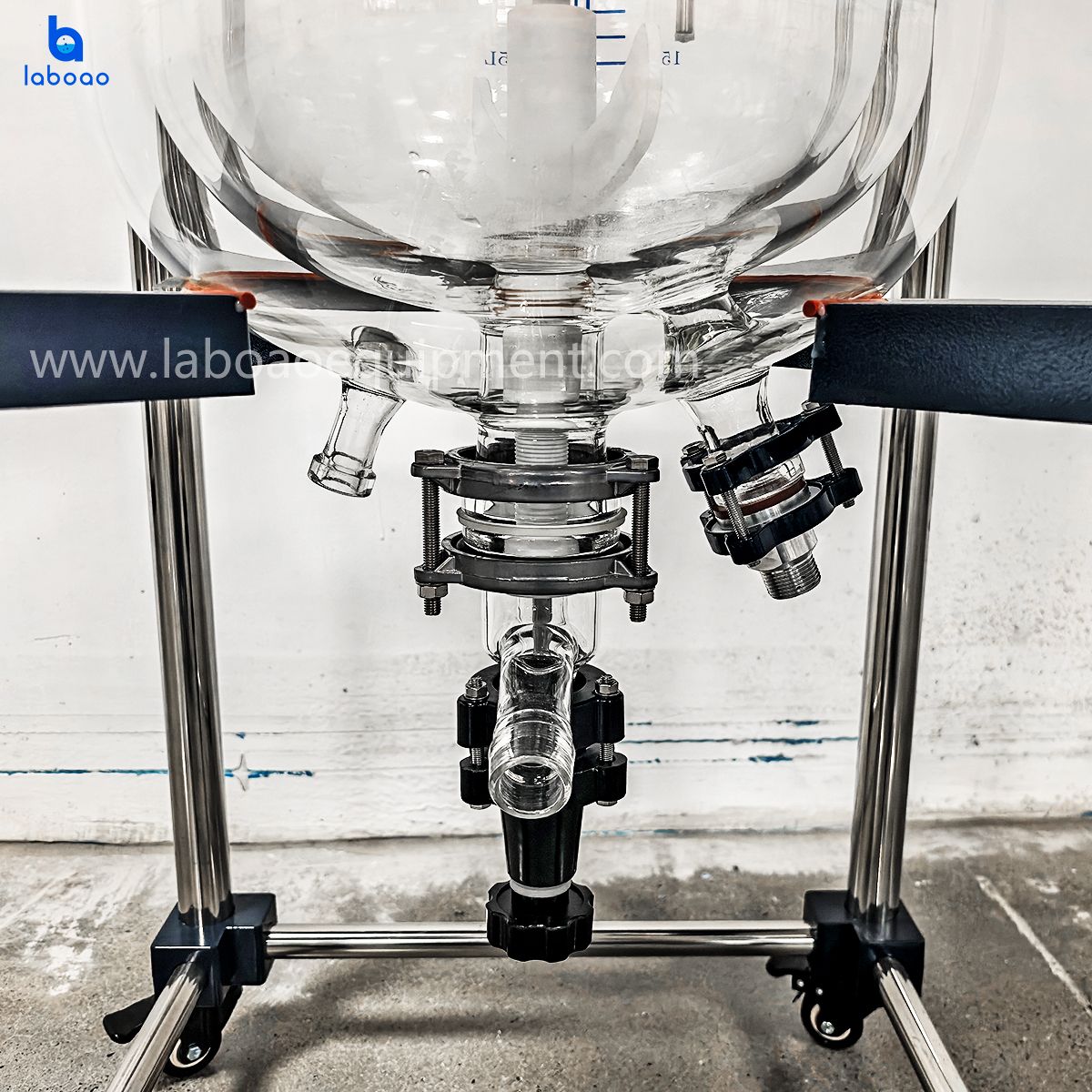

6. Discharge valve: Top-up oblique discharge method, the valve core is made of PTFE, no pollution, no corrosion.

SPECIFICATIONS

Model

LGR-10T

LGR-20T

LGR-30T

LGR-50T

LGR-100T

Material   capacity

10L

20L

30L

50L

100L

Jacket capacity

4

5

8

15

20

Motor power

120W

200w

Rotating speed

0-400rpm

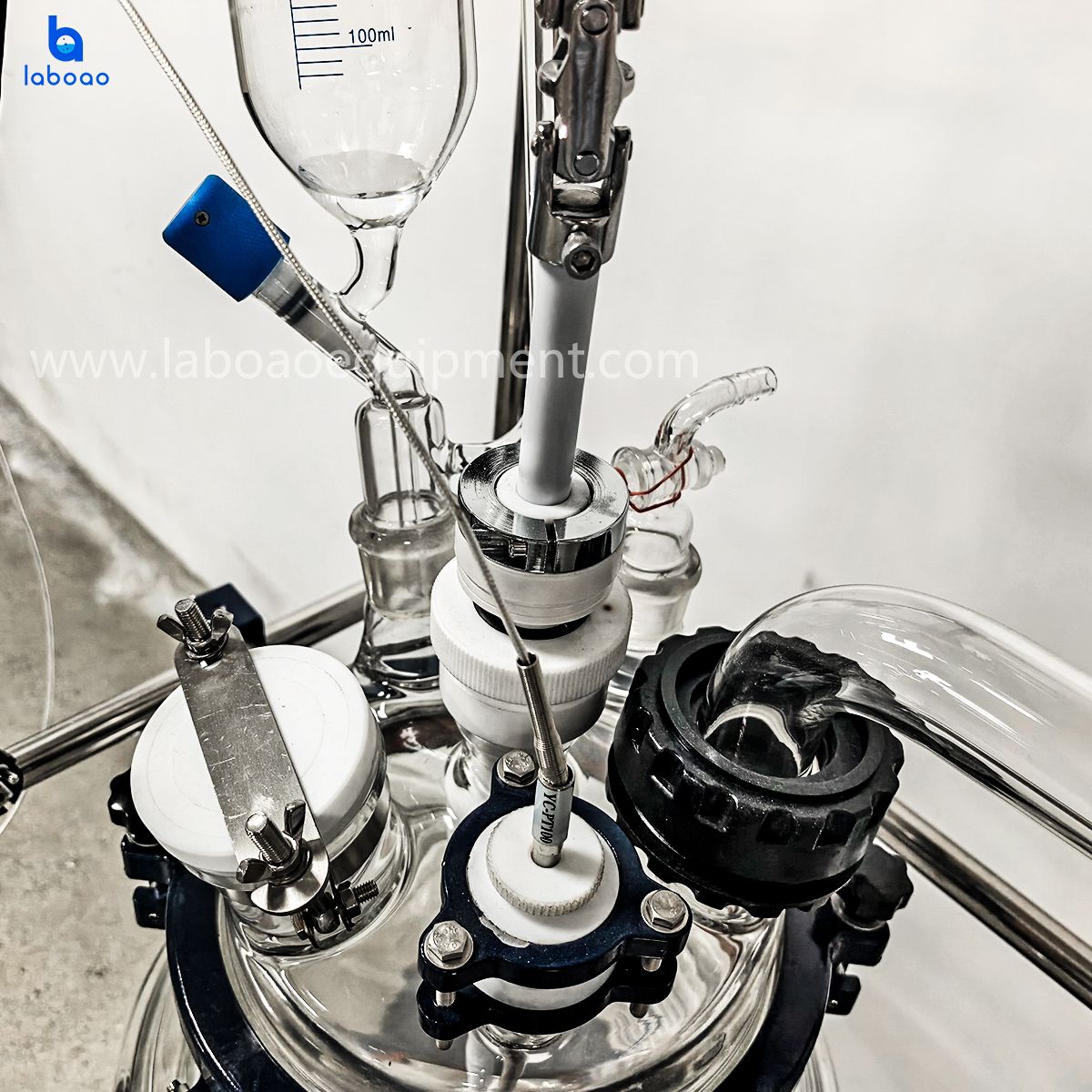

Reaction bottle   cover port

5 ports(Stirring,   temperature measurement, liquid feeding, solid feeding, emptying)

Frame material

304 Stainless   steel

Temperature   measurement

T Teflon PT100,   no break, accuracy ±0.1

PTFE stirring   paddle

Single-layer   push

Double-layer   push

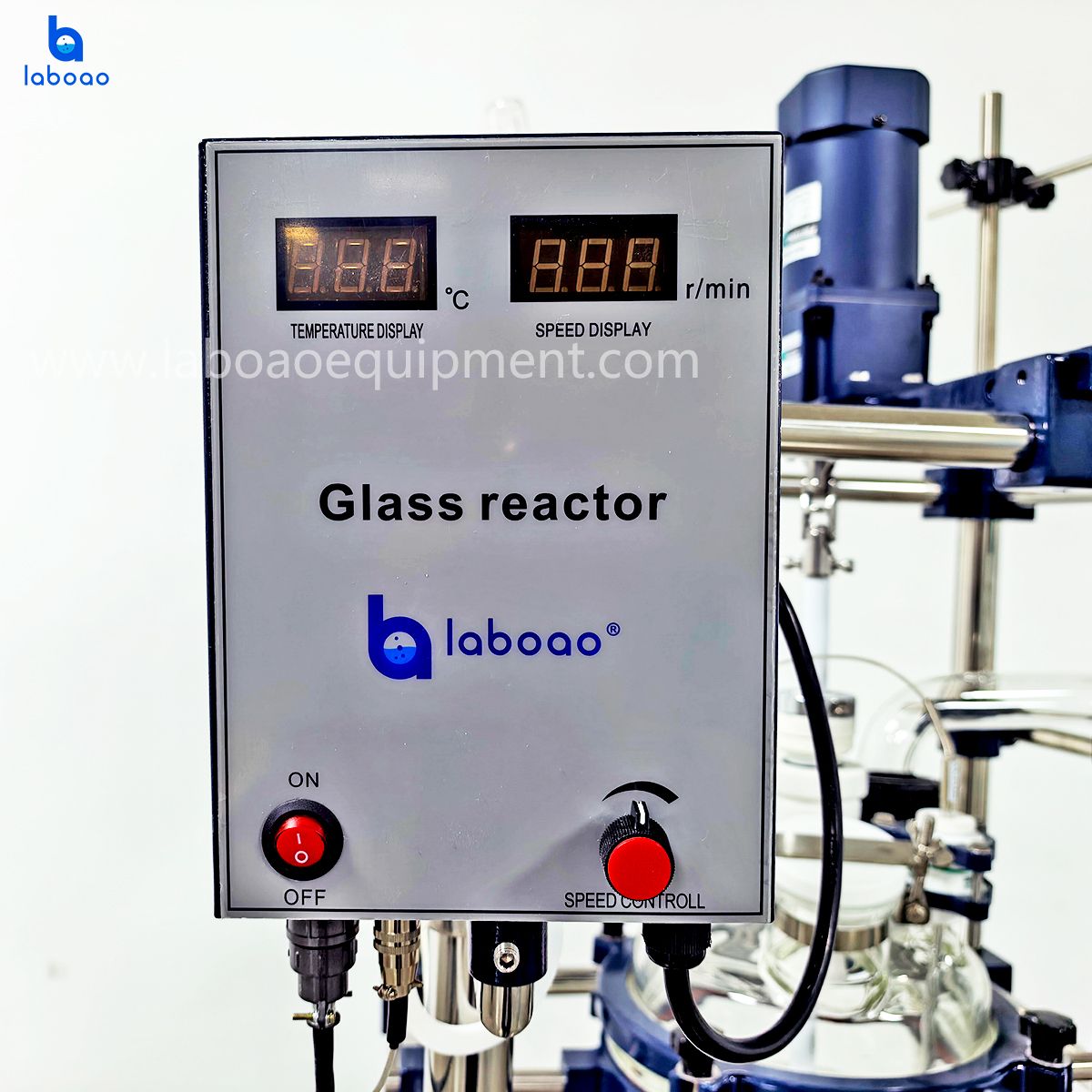

Temperature   display

Digital Display

Discharge valve

No dead ends

Liquid feed   valve

34#

Sealing method

Self-lubricating   mechanical seal to prevent wear debris from falling off

Vacuum

-0.098Mpa

Explosion-proof   motors

Optional

Explosion-proof   inverter

Optional

Ambient   temperature

5~40

Power

220V 50HZ
