200L Jacketed Glass Reactor

High borosilicate glass reactor vessels with bottom valve Glass dome with ports for inlet, solid feed, vacuum, etc. PTFE coated stirrer, mechanical seal Adjustable speed stirrer drive CE and ISO certificate.
  • BrandLABOAO
  • ModelLGR-200L
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.


FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

SPECIFICATIONS

Model

LGR-200L

Kettle volume

200L inner diameter 600mm, outer diameter 650mm,inner   length 840mm

Jacketed volume

about 40L

Voltage/frequency

220V/50HZ

Stirring power

750W  1/5

Stirring speed

0-280r/min

Temperature   range vessel can bear

-80  to 250

Temperature   accuracy

±1

Vacuum degree

0.098Mpa   Negative pressure

Cover diameter

Φ340mm

6ports of cover

Stirring port

Φ60mm flange   port

Condenser reflux   port

50# ball mill   port

Adding dropwise   elbow port

50# ball mill   port

Relief port

34# standard   port

Temperature   measure port

Φ45mm flange   port

Solid feeding   port

Φ80mm flange   portinner diameter Φ60mm matched with PTFE   cover

Stirring  paddle

Φ20*1300H(mm),   leafing 240mm

Condenser size

Φ160*600H(mm),   down with Φ60mm flange port

Condensation   area

0.95

Reflux elbow

upper with Φ60mm   flange portleft with 50# ball mill plugright with 24# standard port matched with functional   valve, down with 50# ball mill plug valve

Adding dropwise   bottle

5L,tubular,   upper with 29# standard port matched with vent valve *2, 34# standard port   matched with glass plug

Receiving bottle

10Lupper with 50# ball mill port24# standard port matched with vent valve*2, down with   glass baiting valve

Relief valve

34# standard   plug  valvevent nozzle (pogada connector), outer diameter 12mm

In and out   circulation port of the sandwich

Φ45mm flange   port matched with ring flange, 6 points outside the wire adapter

Baiting port

Φ100mm flangeΦ65mm baiting portinclined   discharged port (pagoda connector), Φ40mmfrom floor 300mm

Vacuum suction   nozzle

padoga   connector,outer diameter 12mm

In and out   circulation nozzle of condenser coil

padoga   connector,outer diameter 15mm

Overall   dimension (W*L*H)

1250*930*2800mm

Net weight

175kg

Packing   dimension

2200*790*875mm 1385*880*910mm, 2.63m³

Packing weight

271kg (159+112)


WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of jacketed glass reactor machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

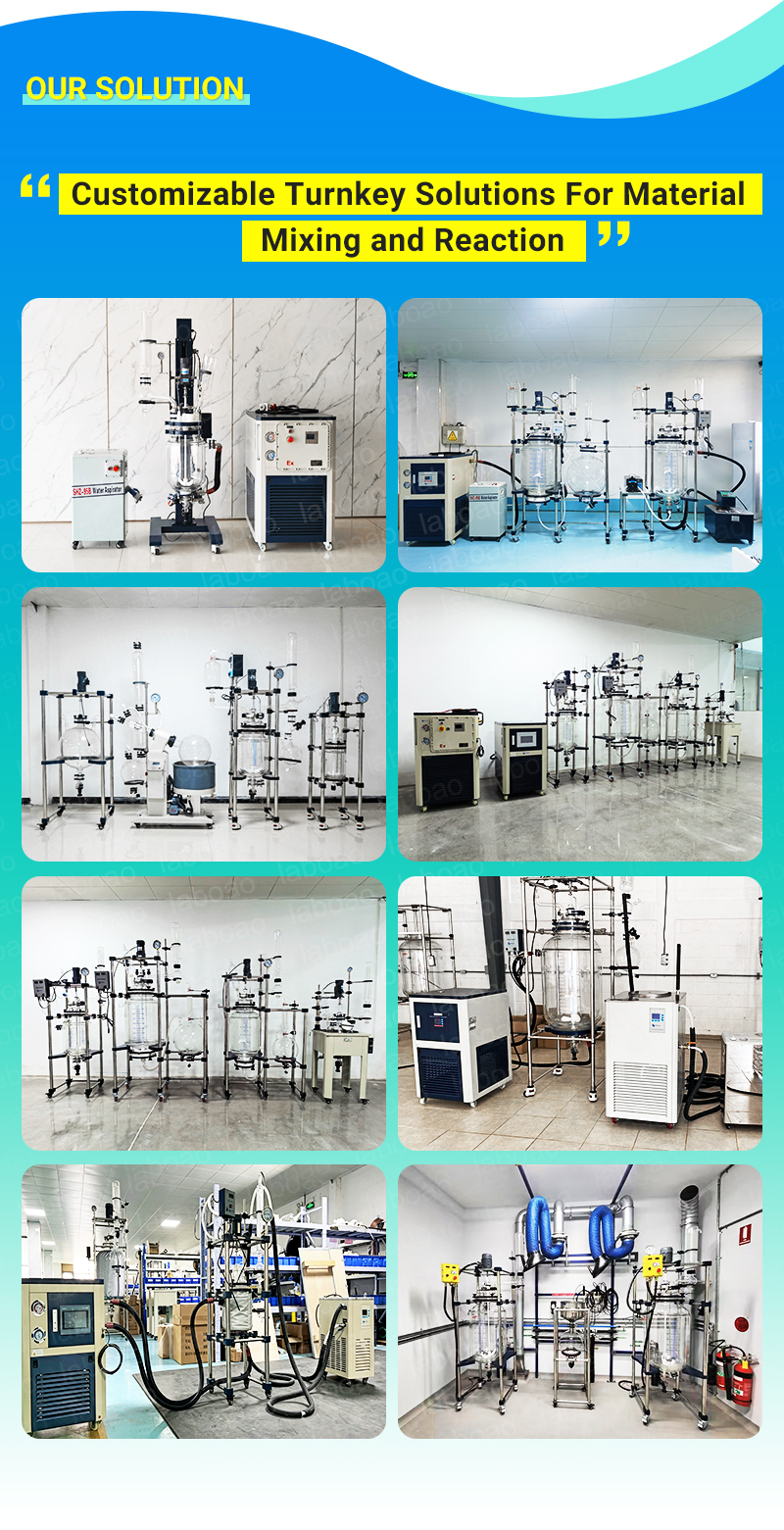

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
