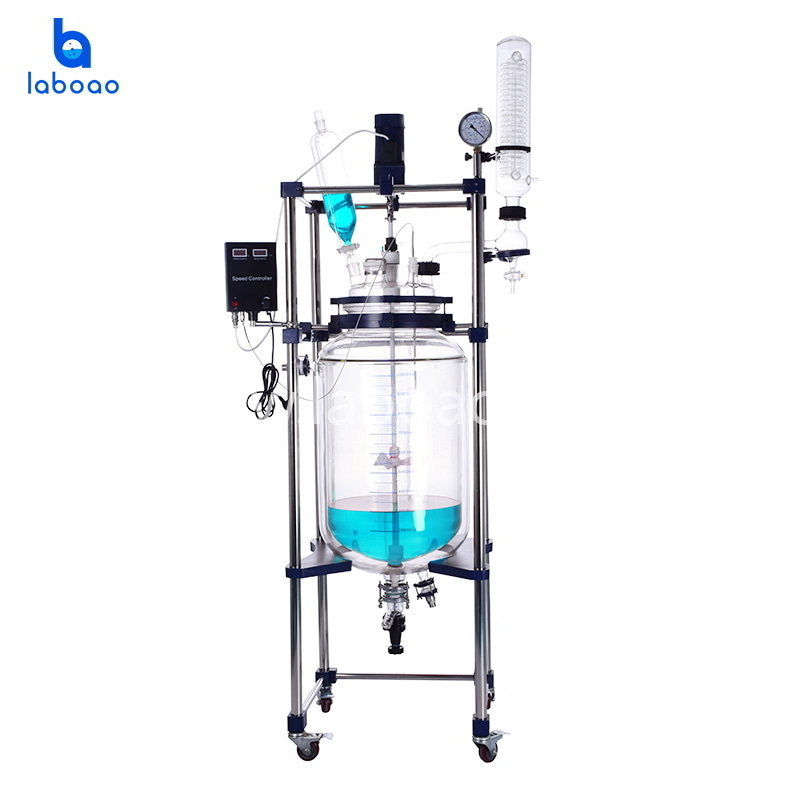

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2. Wide range of temperature operations, from -60°C to 250°C.
3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

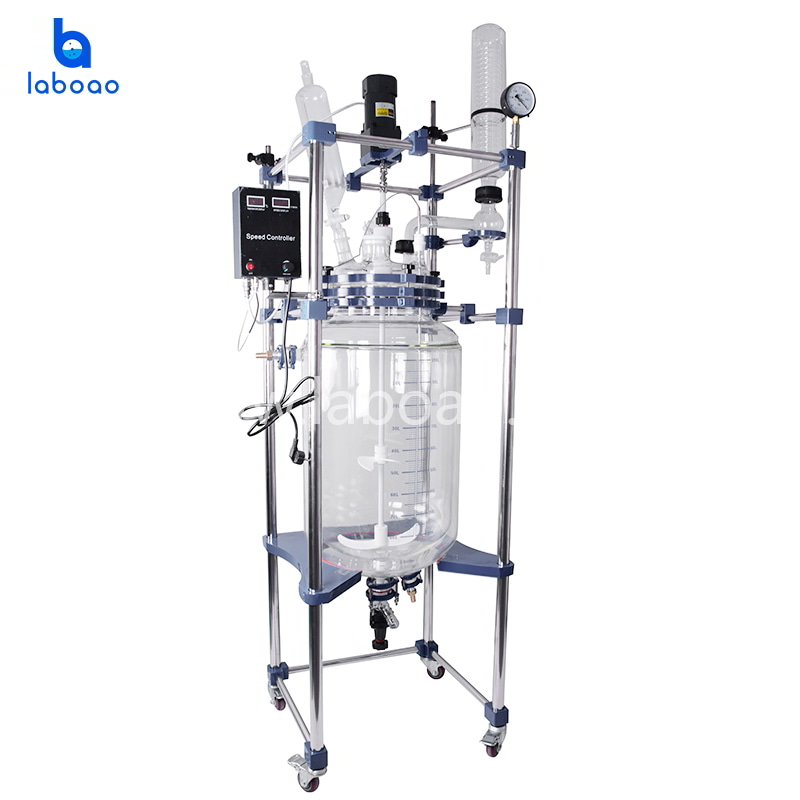

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

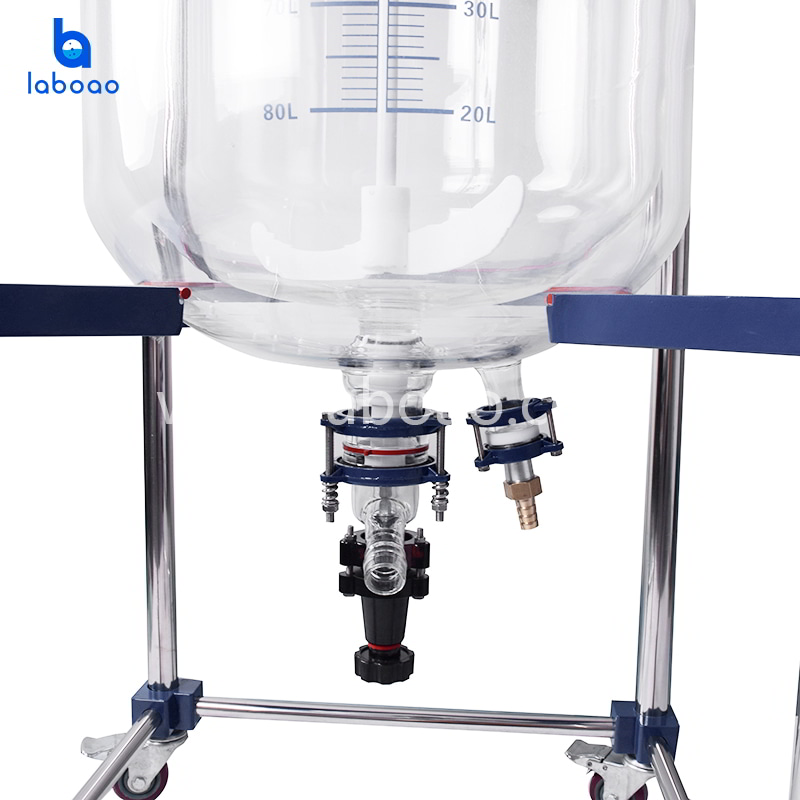

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

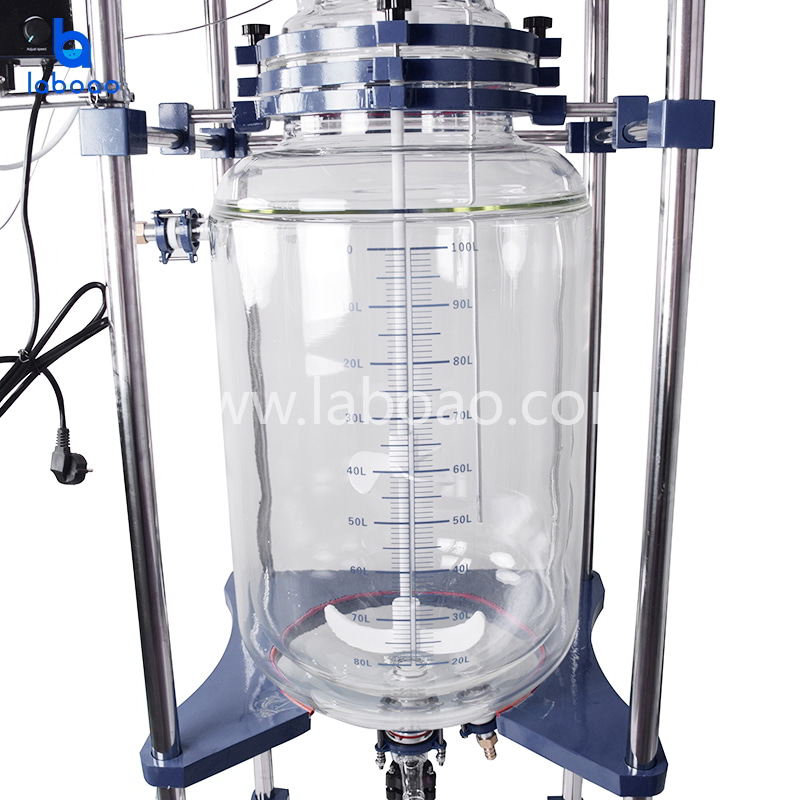

100L， inner diameter 465mm, outer diameter 510mm, inner length 696mm
Temperature range vessel can bear
-80 ℃ to 250 ℃

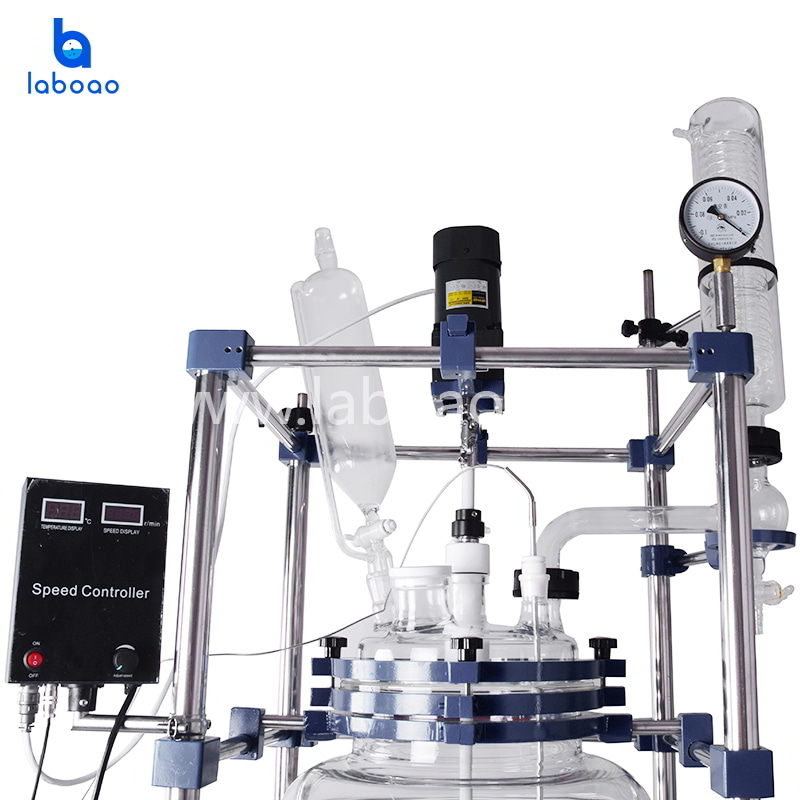

6ports of cover
Φ60mm flange port
50# ball mill port
Constant pressure funnel port
40# standard port
34# standard port
Temperature measure port
Φ45mm flange port
Solid feeding port
Φ80mm flange port，inner diameter Φ60mm matched with PTFE cover
Φ17*1200H(mm), leafing 240mm
Φ120*600H(mm), down with Φ60mm flange port
upper with Φ60mm flange port，left with 50# ball mill plug
Constant pressure funnel
2L, upper with 29# standard port matched with glass plug, down with 40# standard plug
34# standard plug valve，vent nozzle (pagoda connector), outer diameter 12mm

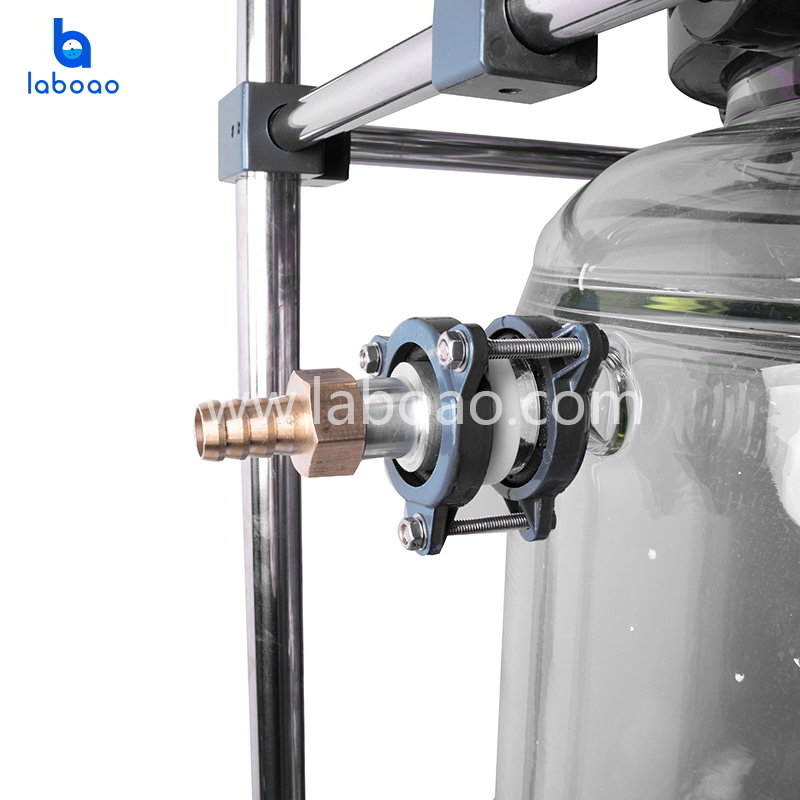

In and out circulation port of the sandwich
Φ45 flange port matched with ring flange, 6 points outside the wire adapter
Φ75mm flanger port，Φ42mm baiting port，inclined discharging port, (pagoda connector)Φ34mm，from floor 350mm
Vacuum suction nozzle
padoga connector,outer diameter 12mm
In and out circulation nozzle of condenser coil
padoga connector,outer diameter 15mm
Overall dimension (W*L*H)
