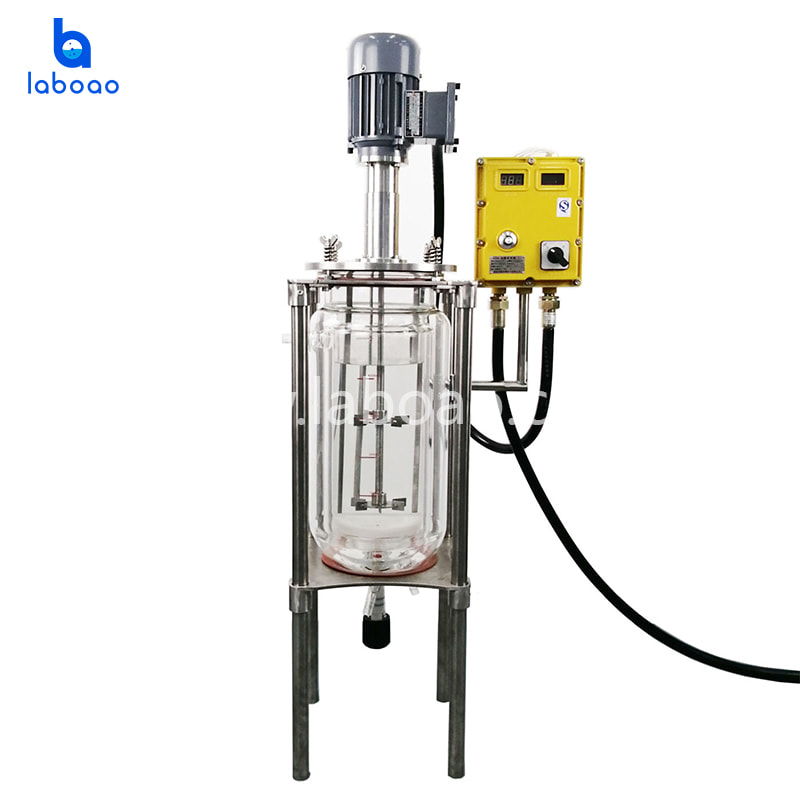

The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution. The inner jacket of the three-layer glass reactor is used for heating or cooling. The outer jacket is used for vacuuming, and the refrigerating or heating temperature of the materials in the kettle can be maintained as much as possible under the vacuum state of the outer interlayer. The materials are reacted in the reaction kettle, and after the reaction, the materials are discharged from the PTFE outlet at the bottom of the kettle.
1. Explosion-proof: explosion-proof motor and explosion-proof frequency converter;
2. Mechanical seal: The internal mechanical seal is a combination of moving and static rings, which is wear-resistant and corrosion-resistant, and has good sealing performance;
3. Stainless steel clamp: the kettle body and the kettle cover are connected by a stainless steel clamp for easy disassembly;
4. Three-layer kettle body: GG17 high borosilicate glass is used, which has good chemical and physical properties. High temperature 250℃ to low temperature -80℃ in large temperature range;
5. Circulating medium import and export: the interface adopts the screw type, which is convenient to connect the temperature control equipment;
6. Discharge valve: Top-up oblique discharge method, the valve core is made of PTFE, no pollution, no corrosion.
Outer diameter of kettle body
Outer diameter of kettle mouth
Reaction bottle cover port
Three-layer glass, high borosilicate glass GG17, expansion coefficient 3.3
PTFE stirring paddle
Self-lubricating mechanical seal to prevent wear debris from falling off
Reaction temperature of kettle body
