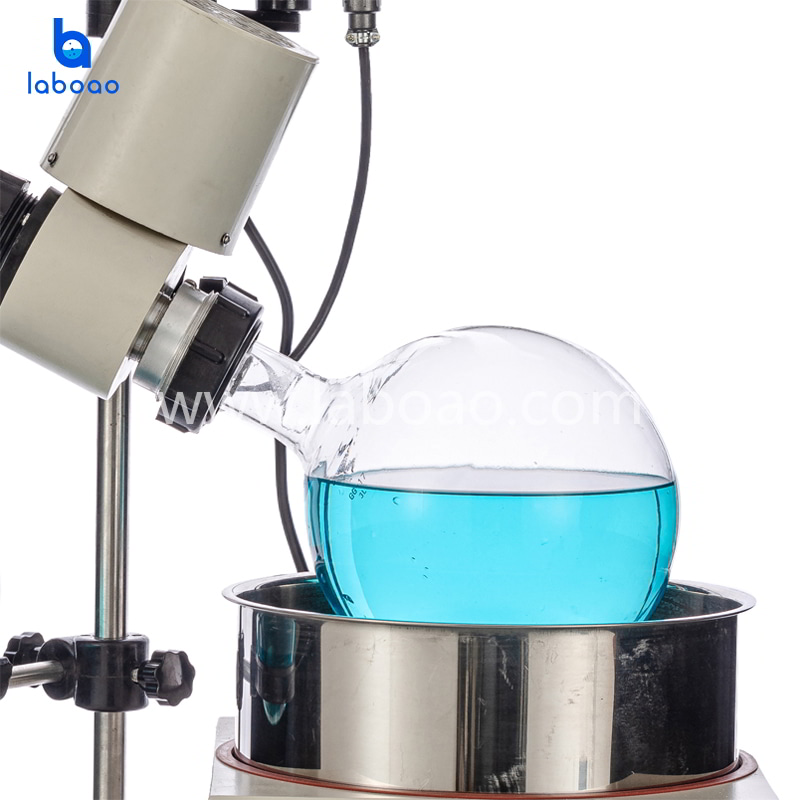

Rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • BrandLABOAO
  • ModelLRE-301
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.


FEATURES

1. The parts in contact with materials are all made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene materials, which are stable in performance and difficult to chemically react with materials.

2. The main frame is made of cold plate anti-corrosion spray + aluminum alloy material, and the pot is made of stainless steel.

3. The sealing system adopts PTFE + fluorine rubber compound combination seal.

4. The vacuum pressure gauge displays real-time vacuum and the pointer displays.

5. The piston-type feeding valve is sleeved with the PTFE extension tube, which can continuously feed to the evaporating flask under vacuum.

6. One-piece condenser, upright double-layer serpentine coil.

7. Rotating and heating power switch control, tilt button (ON-OFF)

8. Electronic stepless speed regulation, fine-tuning by twisting, digital display of speed.

9. Digital display of temperature of constant temperature bath, K-type sensor at the bottom of the pot + stainless steel probe.

10. The hand wheel of the bath pot is raised and lowered, rotating and heating double fuses for safety protection.

SPECIFICATIONS

Model

LRE-301

Voltage/Frequency

220V/50HZ

Whole power

2040W

Rotary power

40W

Heating power

2000W

Vacuum degree

0.0098Mpa

Rotary flask volume

3L,Φ195mm/Φ50  Flange    port

Receiving flask volume

2L,Φ166mm/35#ball mill port

Rotary speed

0-120rpm/min

Temp.cotrolling range

room temperature -180

Temp. accuracy

±1

Flask lifting distance

200mm

Condenser size

Φ100*530H(mm) ,down 35# ball mill port

Condensation area

0.26

Charging valve

19# standard plug valve, feed   nozzle(pagoda-shape connectors),outer diameter 10mm

Vacuum suction nozzle

Pagoda-shape connectors, outer   diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape connectors, outer   diameter 12mm

Pot bravery size

Φ265*160H(mm) about 8.8L,7.3kg

Overall dimensions (W*L*H)

740*330*970mm

Net weight

23kg

Packing dimensions

990*620*470mm  0.29m³

Packing weight

40kg


WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of 1l-5l rotary evaporator machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
