2L Rotary Evaporator With Electric And Manual Lifting

Rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • BrandLABOAO
  • ModelLRE-5299
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.


FEATURES

1. The parts in contact with materials are all made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene materials, which are stable in performance and difficult to chemically react with materials. 2. The main frame is made of cold plate anti-corrosion spray + aluminum alloy material, and the pot is made of stainless steel.

3. The sealing system adopts a combination of PTFE rotating shaft and fluorine rubber gasket for sealing.

4. The piston-type feeding valve is sleeved with a polytetrafluoroethylene extension tube, which can continuously feed to the evaporating flask under vacuum.

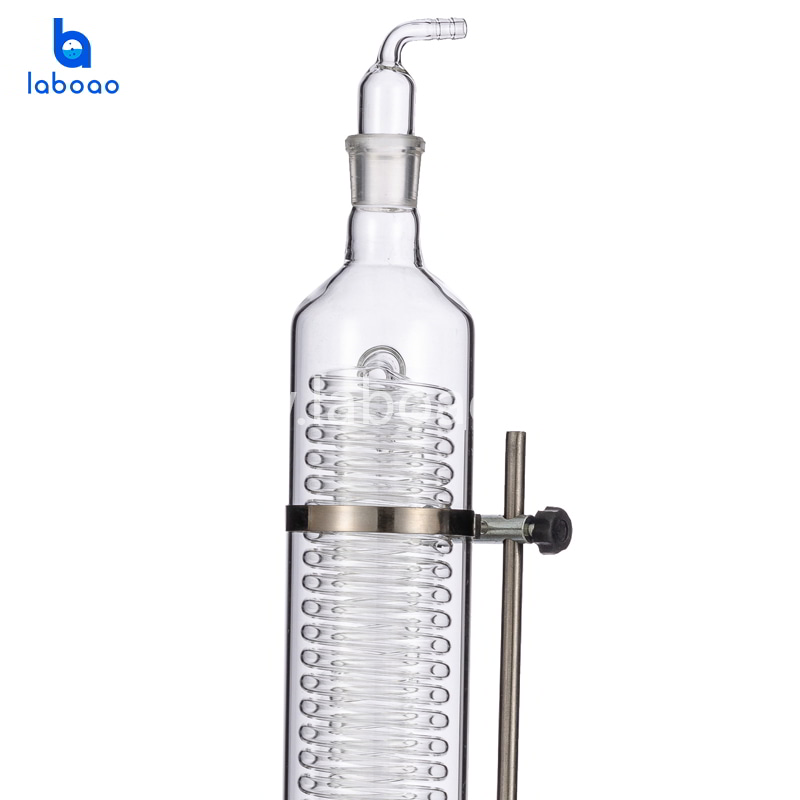

5. Vertical double-layer serpentine coil glass condenser.

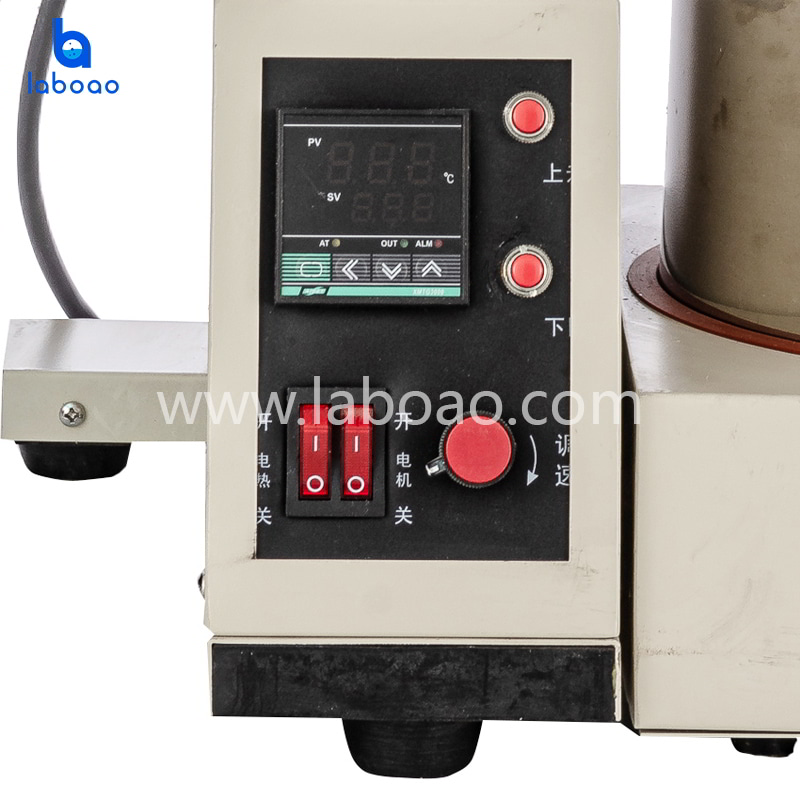

6. Rotating and heating power switch control, double-joint tilt button (ON-OFF).

7. Electronic stepless speed regulation, fine-tuning through the knob.

8. Digital display of temperature of constant temperature bath, Cu50 sensor + stainless steel probe at the bottom of the pot.

9. The main engine is operated by electric lifting, lifting and lowering buttons (it can also be lifted by hand wheel).

10. Rotating and heating double fuse safety protection.

SPECIFICATIONS

Model

LRE-5299

Voltage/Frequency

220V/50HZ

Whole power

1045W

Rotary power

30W

Lifting power

15W  1/15 (Deceleration   boost)

Heating power

1000W

Vacuum degree

0.0098Mpa

Rotary flask volume

Eggplant shape 1L,Φ131mm/24# standard port

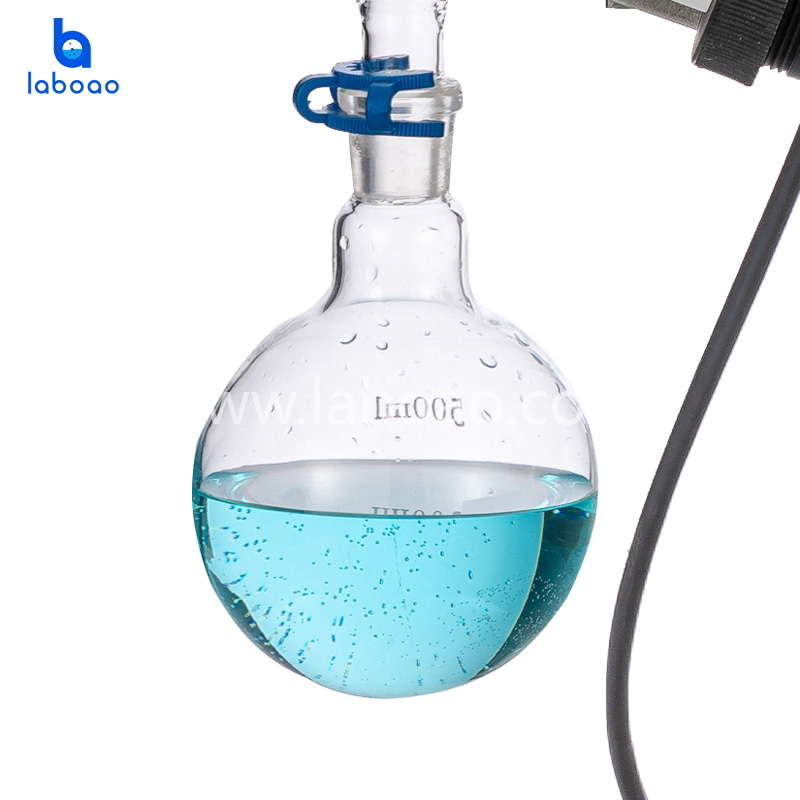

Receiving flask volume

Round shape 0.5L,Φ105mm/24#standard port

Rotary speed

0-120rpm/min

Temp.cotrolling range

room temperature -99

Temp. accuracy

±1

Hosting lifting distance

150mm

Condenser size

Φ85*450H(mm)
  Upper with 29#standard port and equipped with glass exhaustor, down with 29#   standard plug

Condensation area

0.17

Four-way bottle diameter

Upper with 29# standard port, down with 24# standard plug,   left with 19# standard port, right with 24# standard plug

Charging valve

19# standard plug valve, feed nozzle(pagoda-shape   connectors),outer diameter 10mm

Vacuum suction nozzle

29# standard plug valve, vacuum nozzle(pagoda-shape   connectors), outer diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape connectors, outer diameter 12mm

Pot bravery size

Φ245*140H(mm) about 6.6L5.5kg

Overall dimensions (W*L*H)

660*440*(880-1030)mm

Net weight

16.5kg

Packing dimensions

600*460*470mm, 0.13m³

Packing weight

20kg


WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of 1l-5l rotary evaporator machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
