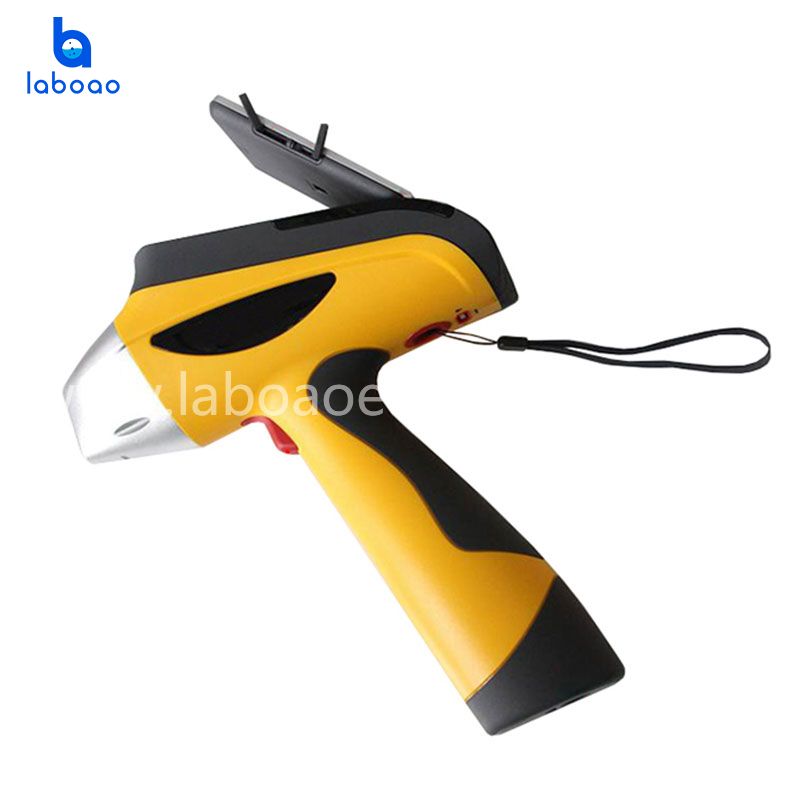

Handheld Alloy Analyzer

DESCRIPTION

EXPLORER 5000 Rapid and accurate on-site analysis of alloy kinds and elements。Based on ten-year research and development experiences of portable instruments, EXPLORER handheld XRF adopt photoelectron, microelectronics, semiconductor, computer and many other technology and develop the new generation of handheld XRF with Independent Property Rights.

EXPLORER 5000 can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc. Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMI) and precisely control the materials quality.

Application Field

• Precious metal alloy

• Iron and steel smelting

• Waste metal recycling

• Machinery manufacturing and processing

• Boiler pressure vessel

• Aerospace industry

• Shipbuilding

FEATURES

1. Easier Operating

• Light weight, small size, ergonomic handle design, equipped with a special instrument case, which is easier to grasp and more convenient to use in the field.

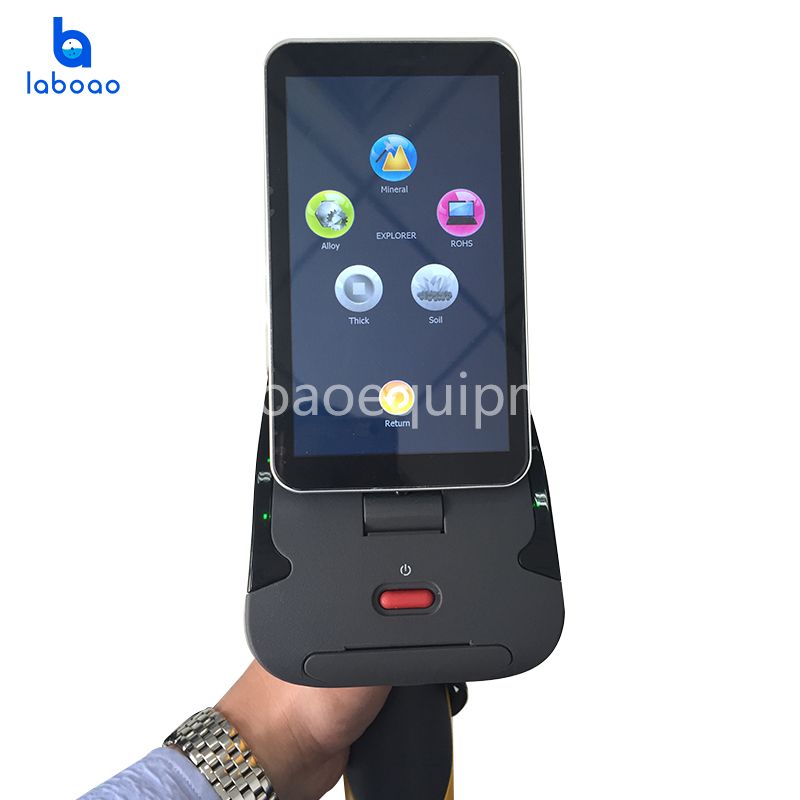

• 5 inch high-definition screen with 360 degree rotation, multiple points operating, can display clearly at any lights.

• Integrated design of Seal type, with waterproof and dustproof function, can be used continuously in harsh environments.

• No need for sample preparation, can directly measure and analysis the surface of goods which need to tested. The instrument can do a quick measurement by its handheld benefit and accurately test the samples for a long time by its test block

2. Better Performance

• Rapid nondestructive detection and quick measurement by aiming, report results within one second. The performance is comparable to the bench-top's performance and detection result is fast and accurate.

• Simultaneous detection of Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, In, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, S, and it can add elements that customized for customer's needs.

• Instrument can run without helium by the ultra near optical path design, and can detect the light elements from the beginning of Mg that fully meets the needs of specific users.

3. Stronger Battery

• Large lithium battery at 27000mAh could be as a selected configuration; the battery duration working time is up to three days and it equipped with communicator and car charger to ensure power supply.

• A Built-in memory battery can continue replace the battery power.

4. Higher Configuration

• Four core parts which are Miniature X-ray tube, Fast-SDD detector (the world's best detector), digital signal processor and micro multichannel intelligent analysis module can achieve the accuracy as good as benchtop's.

• Large data storage is by ultra-high frequency memory and mass storage space. Our new independent research and development Digital multichannel technology ensure effective mining spectral counts per second is up to 500K cps.

• Collimation filter system, its combination can reach to the limit of 12 groups, to meet the testing requirements of different customers.

• A built-in 500W pixels high definition camera, can observe sample's testing position at any time that makes the measurement more accurate.

5. Safer Protection

• Intelligent- tricolor-early-warning-system: 360 degrees without dead angle display by LED three-color lamp led design. Instrument status tells by different colors, Green light means power on, red flushing means testing, and yellow flushing means fault of equipment.

• Triple safety protection function:

• a: Automatic induction, instrument does not work without sample, no leakage radiation.

• b: Thicken-preventing-testing - wall can effectively prevent the scattering.

• c: Safety -protection -cover can prevent the surrounding light matrix scattering.

• Security- linkage- locking device protects your security, it can guard the final checkpoint if the software is unable to control the instrument turn off.

6. More Intelligent Software

• EXPLORER 5000 alloy analyzer is equipped with professional application software, specifically for alloy industry; the feature is intelligent, high sensitivity, short testing time, and easy operation.

• Brand new knowledge-ware is one key operation with dual mode design (user mode and expert mode). User mode uses for recognizing categories of sample by one key operation; Expert mode uses for increasing the elements and increasing the specific in-depth analysis of the operation curve.

• Internal intensity correction method can correct deviation caused by uneven sample of different geometrics, densities and structures.

SPECIFICATIONS

CONFIGURATION LIST

• A horseshoe shaped battery: battery capacity at 27000mAh prolonging test time 3 times, and use as the seat stent.

• To achieve on-site printing data by portable Bluetooth printers.

• Four into one car charger can extent charging times in the field.

• Military grade high strength protective box, has good moisture-proof shockproof pressure three functions, an emergency situation can be used as a rescue tool.

• Optional of portable and seat type can provide customers to have more choices.
