FEATURES
1. High Accuracy and High Resolution: Features micron-level or even higher measurement accuracy and resolution, ensuring accurate and reliable measurement results to meet the high standards of industrial quality control.
2. Multifunctional Measurement Capabilities: Can measure various coating types (such as paint, electroplating, galvanizing, anodizing, etc.) and supports multiple substrates (such as iron/steel and other magnetic metals, aluminum, copper, stainless steel, and other non-magnetic metals).
3. Intelligent Calibration and Automatic Recognition: Supports automatic zero-point calibration and multi-point calibration. Some high-end models can automatically identify the substrate and switch measurement modes, simplifying operation and reducing human error.
4. Data Storage and Statistical Functions: Built-in large-capacity memory can store thousands of sets of measurement data and perform basic statistical analysis (such as average value, maximum value, minimum value, standard deviation, etc.), facilitating quality traceability.

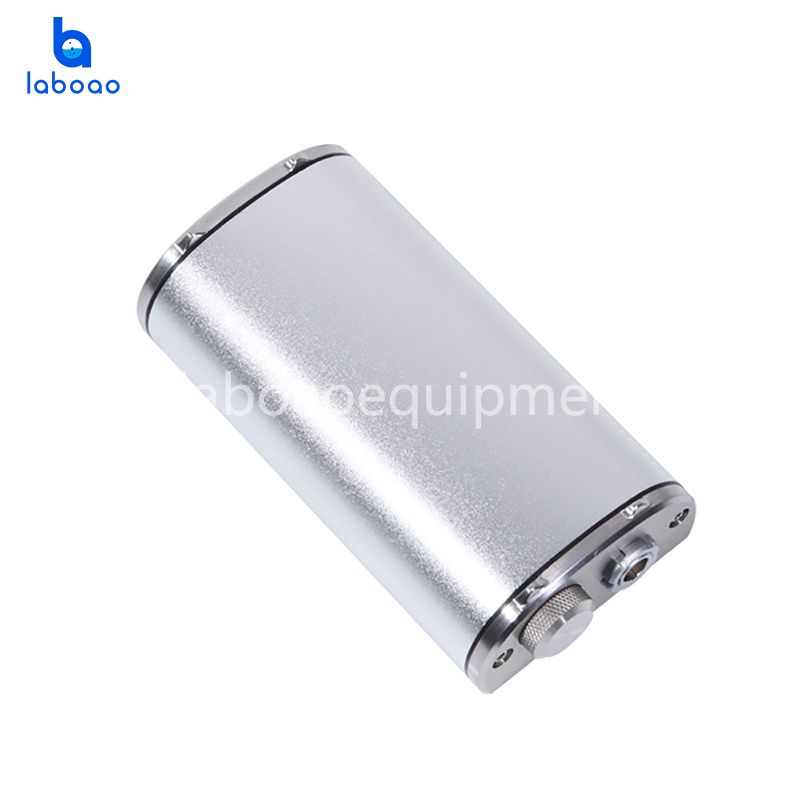

5. Portable Design and Durability: Typically features a compact, lightweight design, suitable for on-site use. The robust casing and wear-resistant probe ensure the instrument's durability in harsh industrial environments.
6. Diverse Display and Connectivity: Equipped with a backlit LCD screen for clear display of readings. Supports data export methods such as USB and Bluetooth, allowing connection to computers or printers for report generation and further analysis.
7. User-Friendly and Easy Operation: Intuitive menus and simple button or touchscreen design make it easy to use. The probe design is ergonomic, facilitating stable grip and measurement.
8. Dedicated Probes and Accessory Options: Offers a variety of probe options (such as integrated, separate, miniature probes, high-temperature probes, etc.) to adapt to different shapes (flat surfaces, curved surfaces, small pipes) and special environments (high-temperature workpieces).
Functions

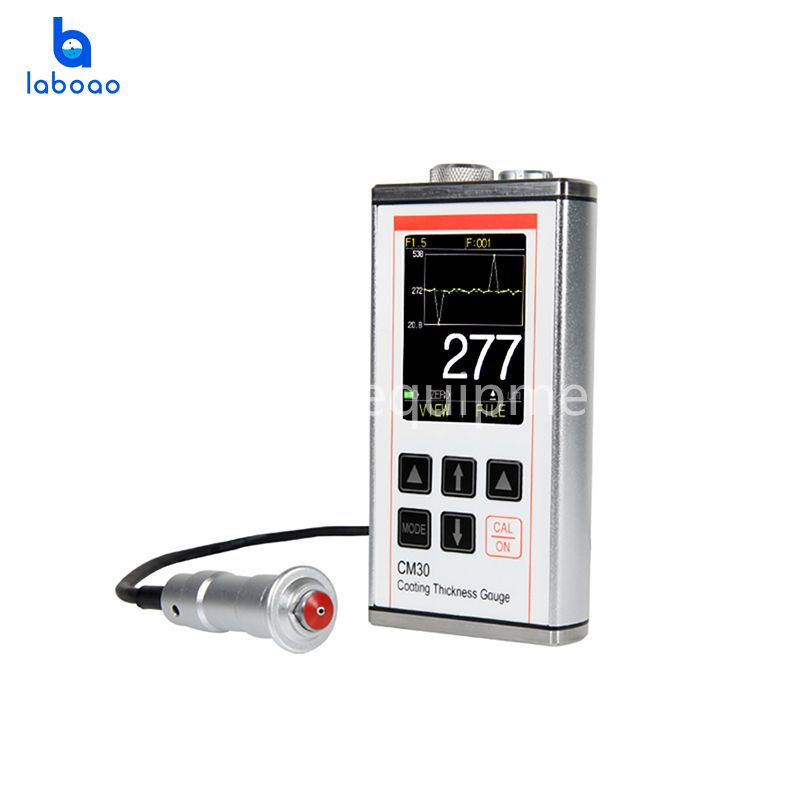

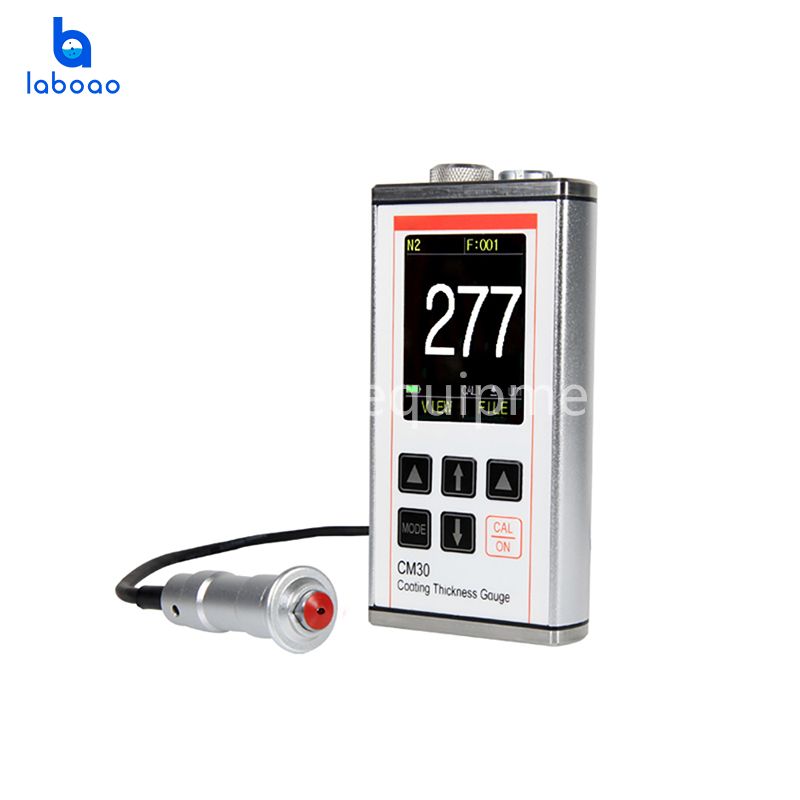

Large Value Interface | Statistics Interface | Tendency Chart Interface |

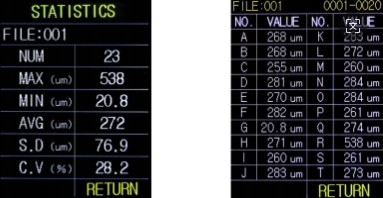

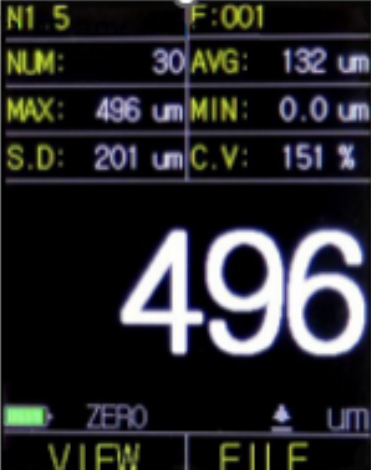

2.4 inch 320x240 dots ArrayColor IPS screen, clear andbright.Eye-catching large Value interface: Large font display,Simple interfacethe reading is intuitive. | The Statistics Interface consists ofMeasured Values and 6 StatisticalData (Number of testing, AverageValue, Max Value, Min Value,Standard deviation andVariable-coefficient). Convenient to observe the change of testing data at any time. | The trend chartdisplays the latest 20measurements, whichshows the testing valueand average value inreal time. |
|
|
|
User debugging function | File Management |
The user debugging function can calibrate the probe from several points to dozens of points according the requirement. Suitable for 4 kinds of probes with different testing principle. The measured value is accurate and stable. | It can store 200,000 testing values in 200 numbered files, in which can store 1000 values and the corresponding statistics per file. User can switch the file number as required. In Read Storage interface, the first page is statistic data, and other pages show 20 measurement values. |
|
|
