250℃ Explosion-proof Blast Drying Oven

Explosion-proof blast drying oven can be used in petroleum, chemical, military, explosives, medical, pharmaceutical, scientific research, laboratories and other related fields. It can be used in dangerous places such as temperature group T2~T4, which is flammable and explosive.
  • BrandLABOAO
  • ModelLEX-WG series
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

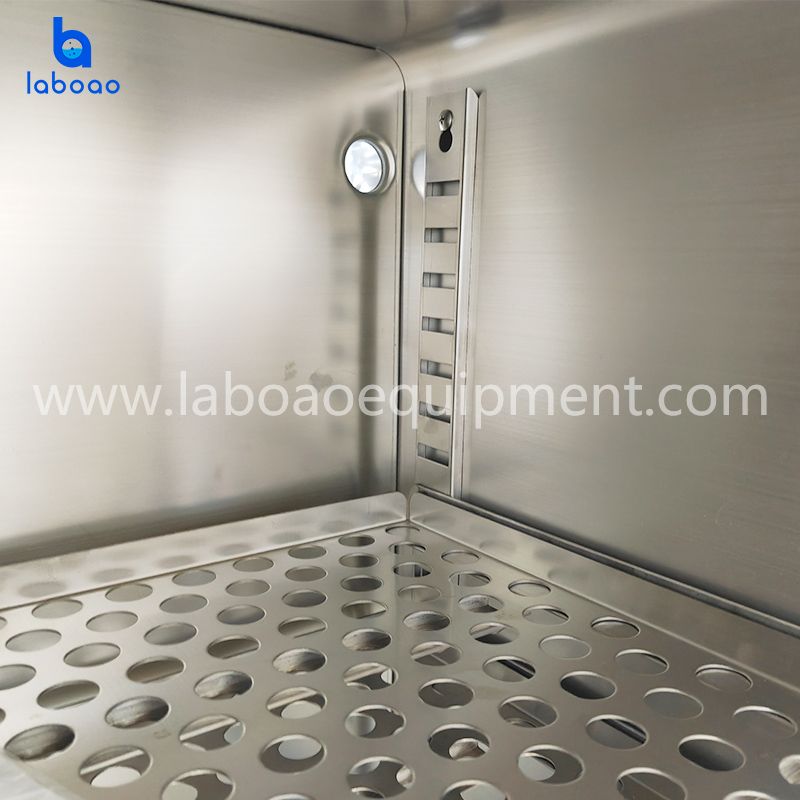

The shell of the explosion-proof blast drying oven is made of cold-rolled steel plate, the studio is made of mirror stainless steel plate, and silicon-aluminum fiber is used as insulation material. The interior of the working room is equipped with a grid-type stainless steel partition, on which the test product can be placed for testing. The vertical double-air duct air jacket, the turbine centrifugal forced air supply, the temperature is uniform, and the structure is reasonable, and the appearance is beautiful and generous.

FEATURES

1. The cabinet adopts explosion-proof type, the equipment and electrical appliances adopt the overall explosion-proof technology, the explosion-proof control box, and centralized protection to prevent leakage of unsafe factors such as high temperature, static electricity, and sparks.

2. This equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts

3. The inner tank of the box is made of mirror stainless steel, the outer shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean

4. Side air channel air jacket, centrifugal forced air supply, uniform temperature.

5. Pull-out tray partition, convenient and quick sampling

6. LCD multi-data full-screen operation display, power failure memory, power failure compensation

7. Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start

8. Use explosion-proof 304 stainless steel heating tube for heating.

9. The exposed connecting wires are all made of explosion-proof flexible connecting tube sets, which can isolate static sparks and temperature leakage and ensure safety

10. Explosion-proof grade: Ex d e mb IIB T4 Gb

SPECIFICATIONS

Model

LEX-43WG

LEX-71WG

LEX-136WG

LEX-225WG

Mode

Side air channel   forced circulation.

Operating temp   range

RT+10-250

Temp resolution

0.1°C

Temp fluctuation

±1

Temperature   distribution accuracy

±2.5%

Interior

Stainless steel   plate

Exterior

Cold-rolled   steel plate with chemical-resistant coating on the surface

Insulation   material

Aluminum   silicate fiber

Heater

Stainless steel   heating tube (explosion-proof qualification)

Power rating

1.2kw

1.6kw

2.0kw

4.0kw

Exhaust hole

Inner diameter   28mm*1, Top test hole.

Temp control   method

LCD display dual   column PID control

Tem setting   method

Touch the explosion-proof   four-button setting

Temp   representation

Measured   temperature display: LCD upper display; set temperature display; LCD lower   display

Timer

0-9999 minutes   (hours), timing function can be selected (no, constant temperature timing,   running timing

Operation   function

Fixed value   operation, timing operation, automatic stop, scheduled start.

External   connection line protection

Explosion-proof   armored PT100 (explosion-proof qualification)

Sensor

Explosion-proof   flexible connecting pipe set (explosion-proof qualification)

Additional   features

Deviation   correction, menu key lock, power failure memory, overheating preventer

Explosion-proof   grade

Ex de mb IIB T4   Gb

Inner size(mm)

350*350*350

450*350*450

550*450*550

600*500*750

Outer dimensions(mm)

785*530*555

855*530*655

985*625*755

1015*685*995

Packing size(mm)

950*642*711

1040*642*811

1180*745*901

1220*802*1156

Internal volume

43L

71L

136L

225L

Shelf load

15kg

Shelf number

9 floors

13 floors

17 floors

9 floors

Shelf space

25mm

Power supply   (50/60Hz) rated current

AC220/5.5A

AC220/7.3A

AC220/9.1A

AC220/18.2A

Net weight/gross   weight kg

34/53

46/70

66/92

81/110

Partition

2 pieces

Partition rack

4 pieces

Optional

Explosion-proof   grille, explosion-proof hinge, explosion-proof pressure relief door,   explosion-proof seven-inch touch screen instrument (with curve and program   function), explosion-proof mouse
