1. The centrifugal motor drives the fan blades to force the air to flow. The air is guided by the air duct to force the flow. The circulated gas enters the studio evenly, which can fully ensure the uniformity of temperature and humidity in the box. The left side of the box has a diameter 50mm test hole.

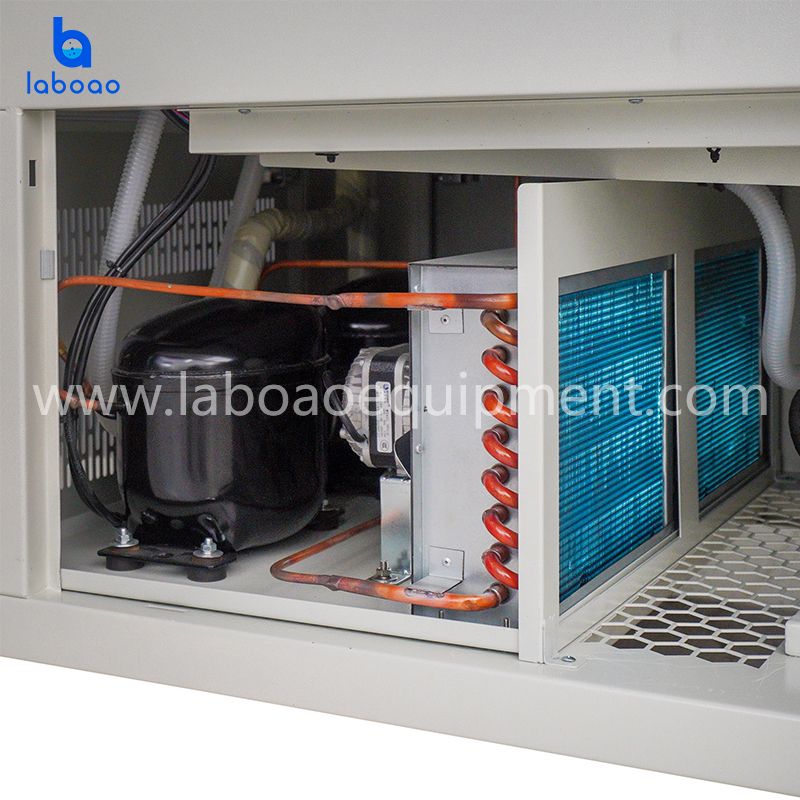

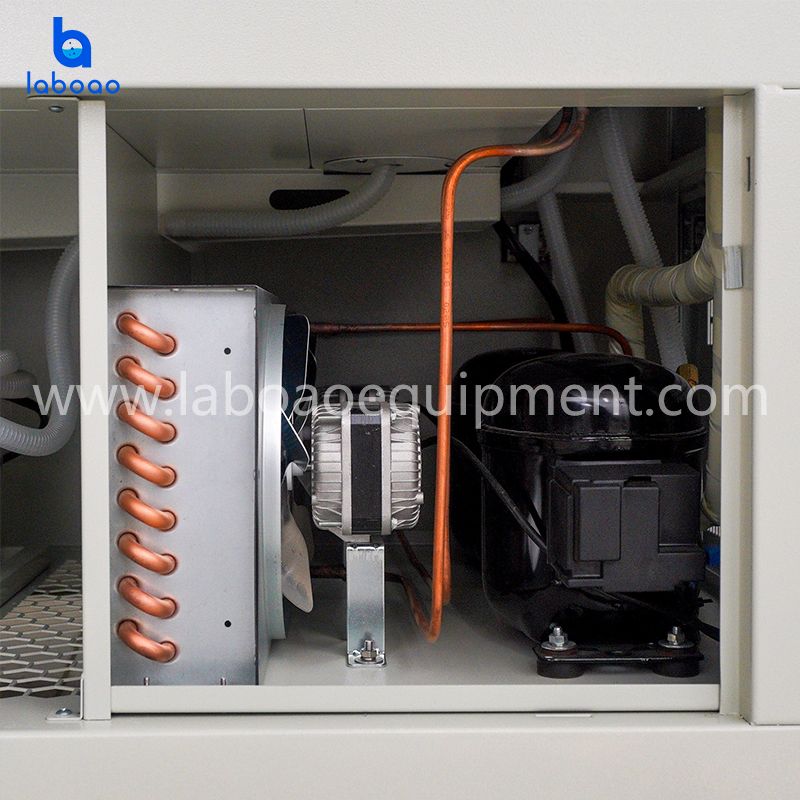

2. Adopt 2 sets of fully enclosed original imported compressors, one for use and one for standby automatically switch to ensure that the drug test runs continuously for a long time without failure. Break through the defect that domestic drug test chambers cannot run continuously for a long time.
3. There is no need for defrosting in continuous operation, to avoid fluctuations in temperature and humidity in the box due to defrosting during use.
4. The key components such as temperature and humidity controllers, compressors, and circulating fans are imported products, which have the characteristics of stable, safe and reliable operation for a long time.
5. It has an independent over-temperature, sound and light alarm to prompt the operator to ensure the safe operation of the laboratory without accidents.
6. It can be connected to a printer or 485 communication interface, and the temperature and time curve can be recorded with a computer and a printer, which provides a strong guarantee for the storage and playback of the test process data.
7. Structure: The equipment consists of a laboratory body, an air duct system, a heating system, a refrigeration system, a humidification system, and electrical control. The heater is located in the air duct and does not directly radiate the test sample. Uniform, reasonable structure, beautiful appearance

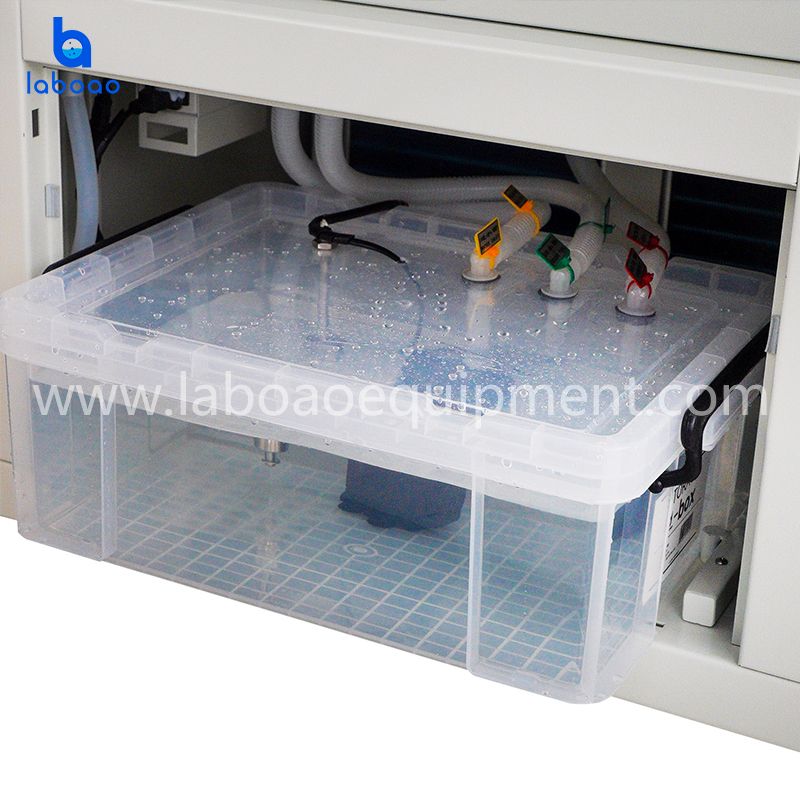

8. Water system: the water pump can run for a long time, automatically replenishing water to the electric steam humidifier, hidden water tank, you can add water when you pull out the water tank, and the water tank controller automatically prompts for water shortage

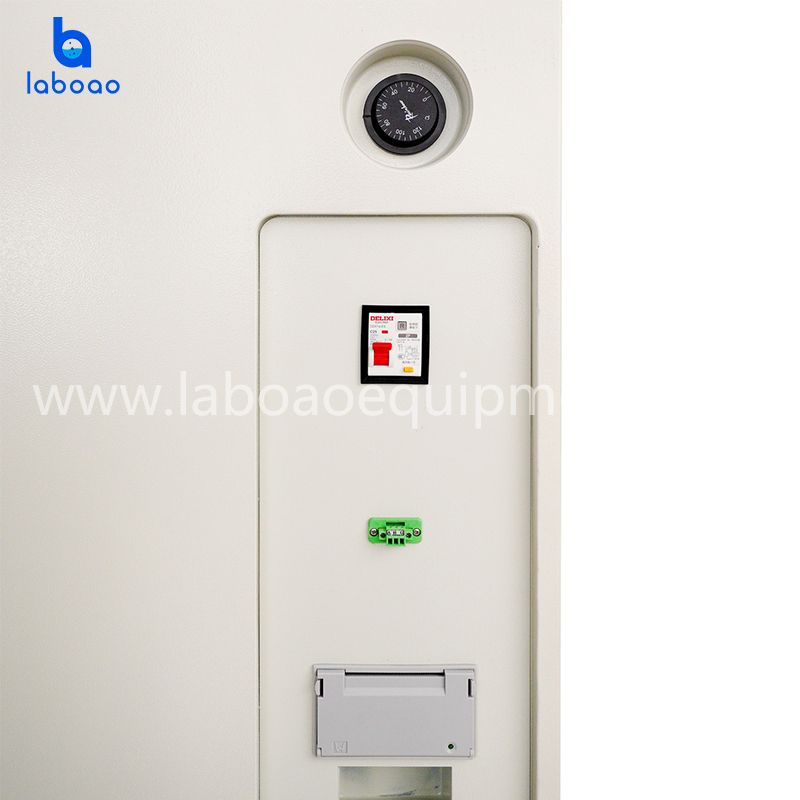

9. Safety protection function: grounding protection device, leakage/open circuit protection, heater short circuit protection, humidifier short circuit protection, water system water cut off, water shortage protection, compressor overload protection, independent over-temperature of studio, sound and light alarm
10. Meet the standard: GB10586-2006, meet the technical guidelines for chemical stability: strong light irradiation test 4500 ± 500LX, meet ICH: Q1B total illumination ≥ 1.2 × 106LuX.hr, near-ultraviolet energy ≥ 200W.hr/m²
