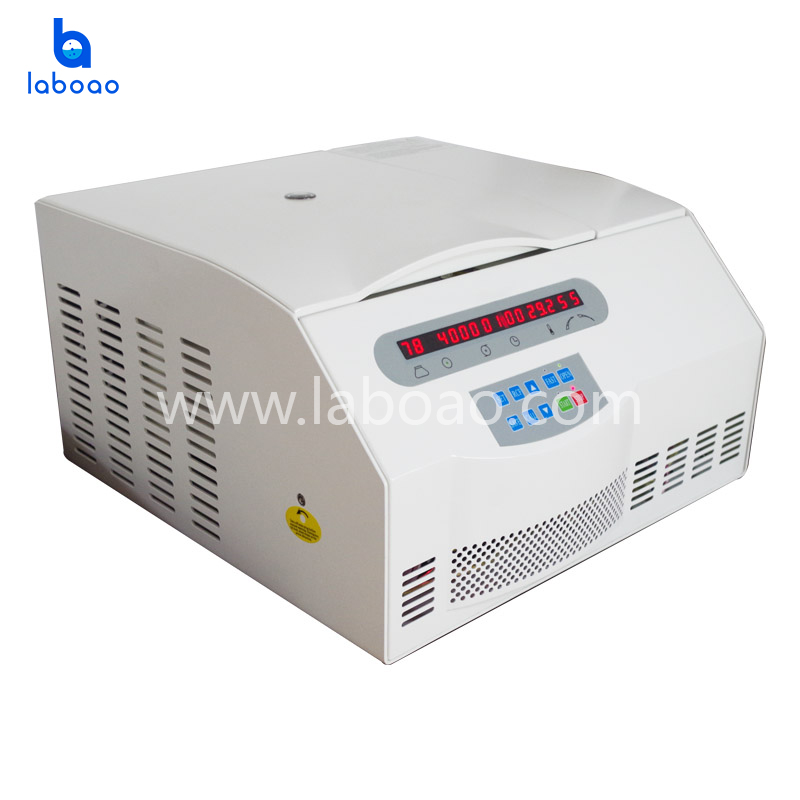

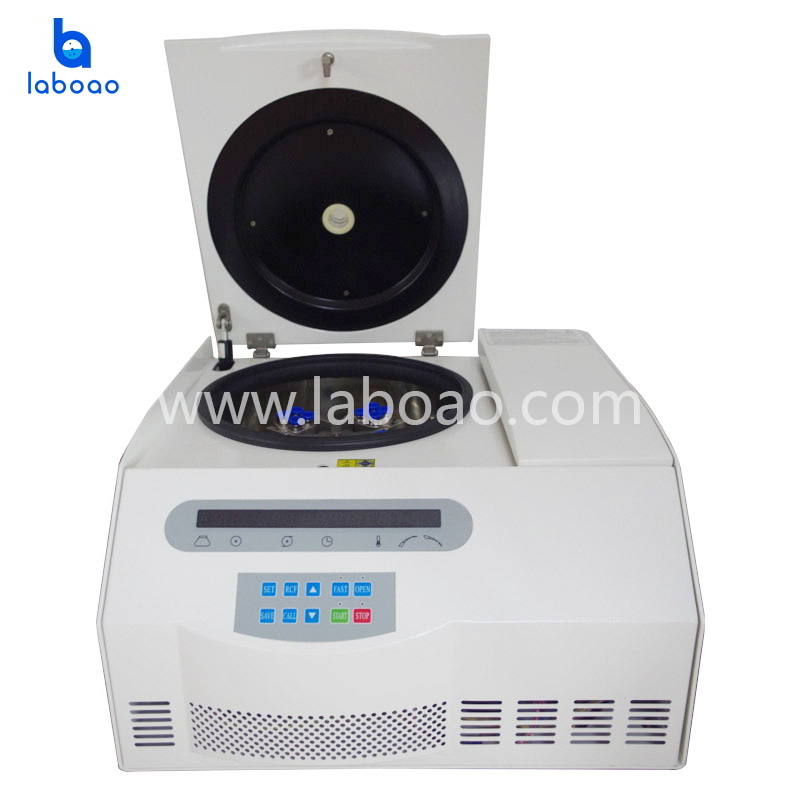

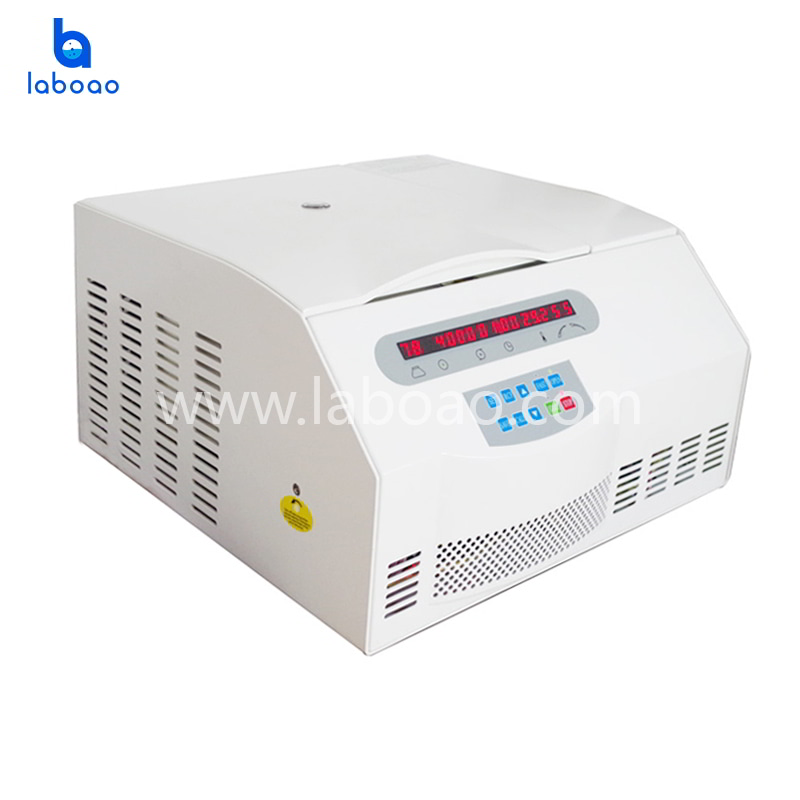

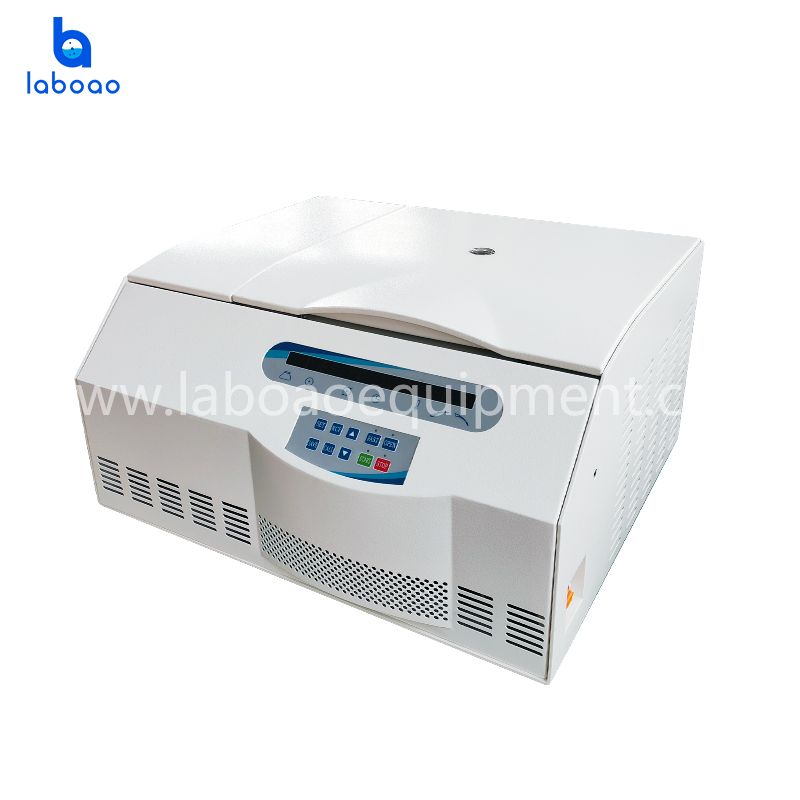

LR-5A Refrigerated Low Speed Centrifuge

Laboratory-scale centrifuges are used in chemistry, biology, biochemistry and clinical medicine for isolating and separating suspensions and immiscible liquids.

BrandLABOAO
ModelLR-5A
PortAny port in China
PackagePlywood case package

GET A QUOTE EMAIL

Payment More

We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

Download

DESCRIPTION

Low-Speed Centrifuge are used for general laboratory applications, including biological sample separations of cellular materials, blood, urine, sperm etc. They are also used for clinical applications of PRP, PRF, lipid cell separation, stemcell isolation Low-speed, gentle centrifugation of microbead containing microplate Gentle, soft spin-down or washing of primary cells & cell line.

FEATURES

1. Brushless DC inverter motor

2. Fluorine-free compressor unit, no environmental pollution and precise temperature control.

3. Microcomputer processor for precise control, digital display speed, temperature, time and other parameters, button programming, switch display operating parameters and RCF values.

4. 10 sets of programs can be stored and recalled, and 10 lifting rates are available.

5. Door cover independent motor servo, reduce the labor intensity of the operator, overspeed, over temperature automatic protection, unbalance protection, the body is made of high quality steel structure; safe and reliable, easy to use.

6. Unique spring taper sleeve is used to connect the rotor and the spindle. The loading and unloading rotor is quick and easy, non-directional, safe and reliable, and easy to use.

7. Equipped with a variety of rotors, and can be designed according to the test requirements of a variety of adapters, a multi-purpose machine.

8. The third-stage vibration reduction achieves the best centrifugal effect.

SPECIFICATIONS

Max speed	5000r/min
Max RCF	4730×g
Max volume	4×300ml
Timer	0～99h/59mins
Dimensions	640×665×420mm
Speed accuracy	±50r/min
Temp. range	-20°C～40°C
Power supply	AC 220V 50HZ 2A
Noise	≤65dBA
Net weight	118 KG

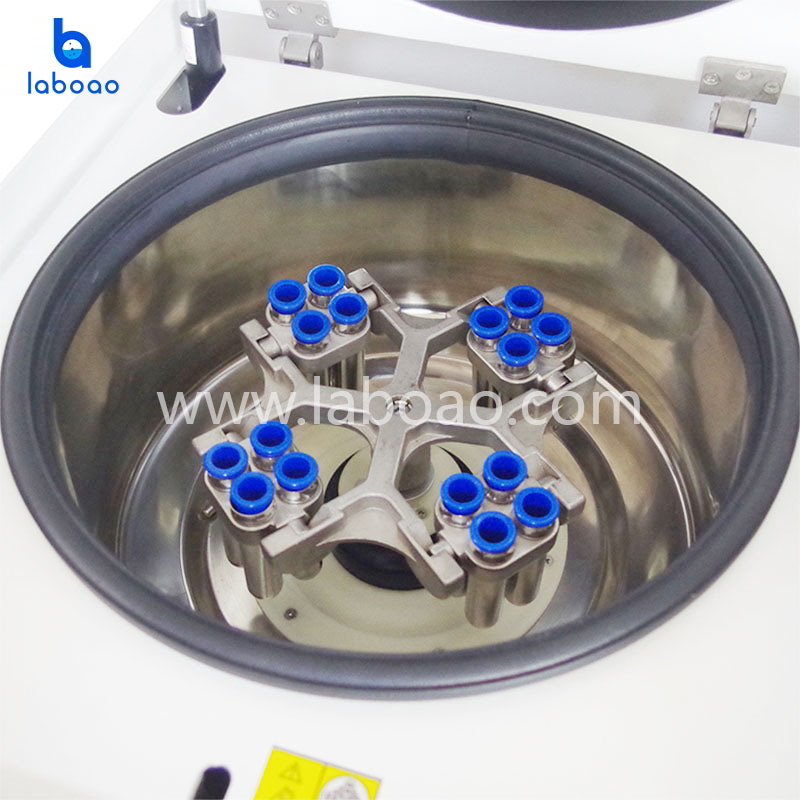

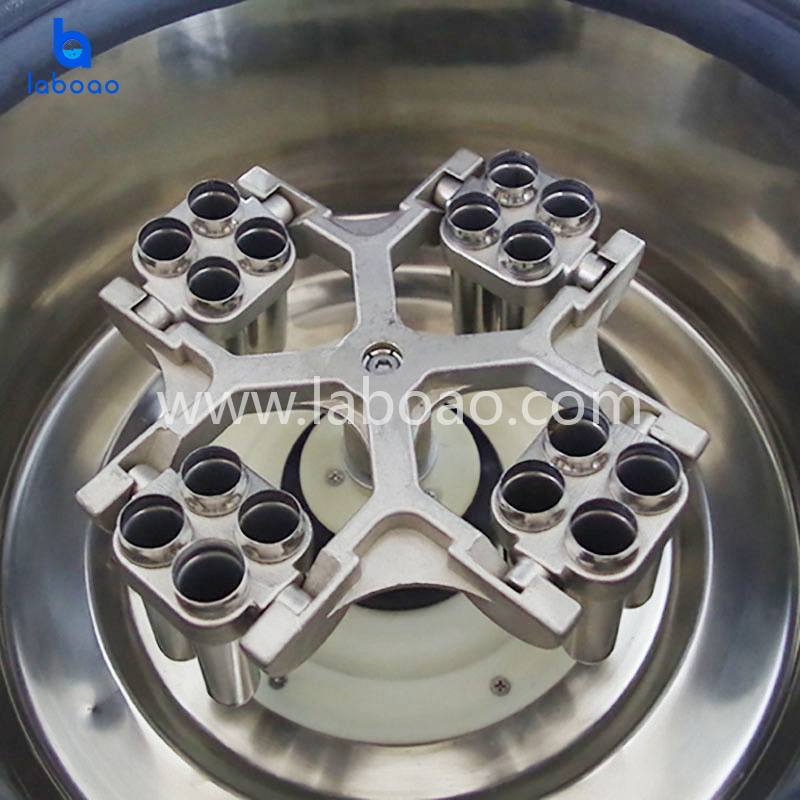

Optional rotors:

Rotor No.	Rotor type	Max . speed (r/min)	Capacity	Max. RCF
No30592	Swing rotor	4000	4×300ml(250ml test tube)	2920
No30592	Suitable 40401—40408 adaptor
No30589	Swing rotor	4000	4×22×5ml （Vacuum tube）	2840
No30589	Swing rotor	4000	4×31×5ml （Exempting tube）	2840
No30590	Swing rotor	4000	4×22×5ml （Vacuum tube）	3140
No30590	Swing rotor	4000	4×31×5ml （Exempting tube）	3140
No30691	Swing rotor (elisa plate)	4000	2×4×96 holes	2490
No30676	Swing rotor (elisa plate)	4000	2×3×48holes	2300
No31377	Swing rotor （Multi-tube）	5000	Suitable tubes
			4×50ml	4730
			4×100ml	4730
No31378	Swing rotor （Multi-tube）	4000	Suitable tubes
			4×2×100ml	3020
			4×2×50ml	3200
			4×4×15ml	3200
			4×6×15ml	3200
			4×8×15ml	3200
			4×12×7ml	2880
			4×8×10ml	2790
			4×6×10ml	2790
			4×4×10ml	2790
No30627	Angle rotor	5000	30×15ml	3830
No30638	Angle rotor	5000	6×15ml	2540
No30607	Angle rotor	5000	12×15ml	3080
No30639	Angle rotor	5000	24×15ml	3500
No30640	Angle rotor	5000	4×50ml	2520
No30611	Angle rotor	5000	6×50ml	2850
No30641	Angle rotor	5000	12×50ml	3860
No30642	Angle rotor	4000	24×50ml	2970
No30613	Angle rotor	5000	4×100ml	2630
No30614	Angle rotor	5000	6×100ml	3130
No30643	Angle rotor	4000	12×100ml	2970
