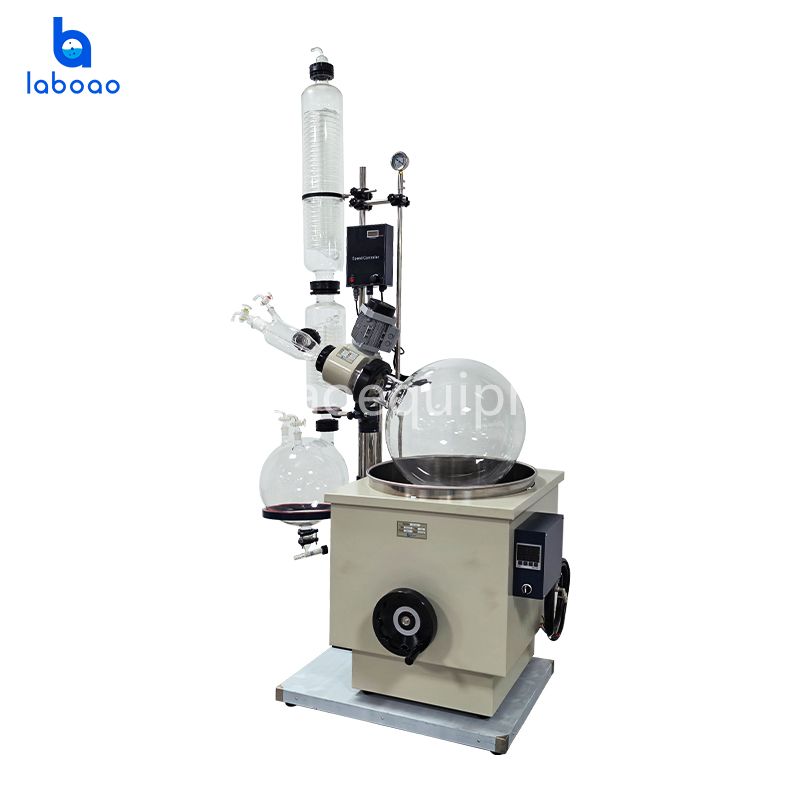

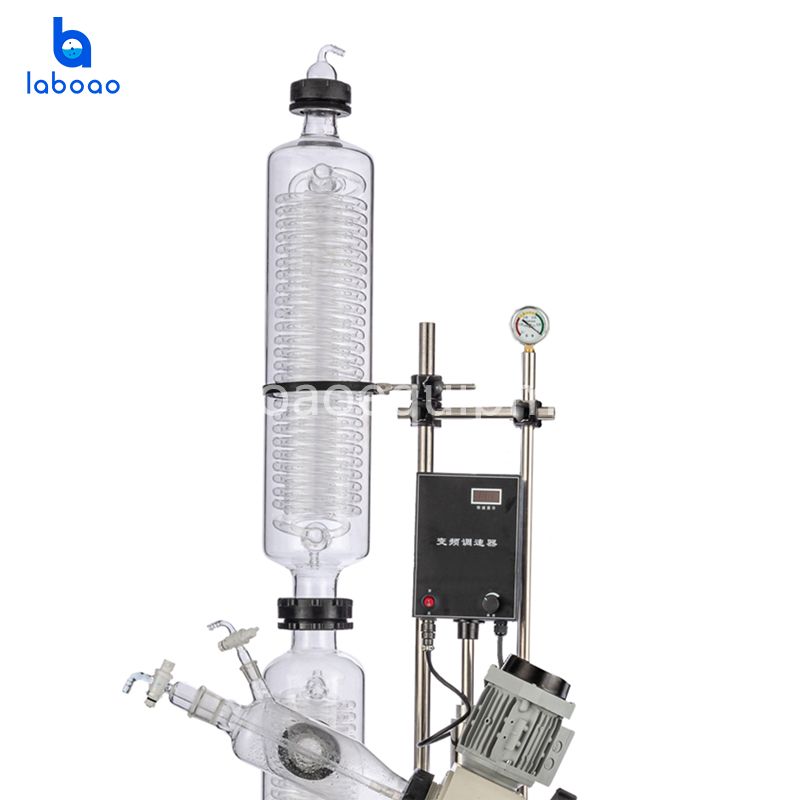

50L Rotary Evaporator

Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • BrandLABOAO
  • ModelLRE-5002
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.


FEATURES

1. Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .

2. USES the main and secondary efficient double condenser to ensure high recovery rate.

3. Rotating bottle with nut connection, it is easy to load and unload.

4. There is tap valve under the collection bottle mouth, recycled solvent is very fast.

5. Feeding continuously.

6. Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

7. Water bath with digital and continuous temperature controlling.

8. Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.

SPECIFICATIONS

Model

LRE-5002

Voltage/Frequency

Rotation 220V/50HZ; Heating pot 380V/50HZ

Whole power

8180W

Rotary power

180W

Heating power

8000W

Vacuum degree

0.0095Mpa

Rotary flask volume

50L Φ470mm/Φ125 flange port

Receiving flask volume

20L Φ355mm/ upper with Φ60 flange port*24#  standard port*down with Φ50 flange port

Rotary speed

0-120rpm/min

Temp.cotrolling range

room temperature -180

Temp. accuracy

±1

Flask lifting distance

180mm

Condenser size

The main condensor Φ160*835H(mm) , upper with Φ60 flange   port* down with Φ80 flange port
  The assisted condensor Φ160*530H(mm), upper with Φ80 flange * down with Φ60   flange* side with Φ60 flange

Condensation area

1.44(0.95+0.49)

Air guide bottle

left with Φ40 standard port, upper with 19# standard   port,  side with Φ60 flange prot, right   with Φ70 flange port

Charging valve

40# standard plug valve, feed nozzle (pagoda-shape   connectors) outer diameter 12mm

Multi-function port

19# standard plug valve, glass nozzle  (pagoda-shape connectors) outer diameter   12mm

Vacuum suction nozzle

Φ60 flange glass exhaustor, suction nozzle (pagoda-shape   connectors) outer diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape connectors, outer diameter 16mm

Vent valve

24#standard plug valve*2 vent nozzle (pagoda-shape connectors) outer   diameter 12mm

Baiting valve

Φ50 flange port, side discharging nozzle(pagoda-shape   connectors), outer diameter 20mm, 320mm from the floor

Pot bravery size

Φ550*320Hmm)  about 76L

Overall dimensions (W*L*H)

1330*730*2340mm

Net weight

119.5kg(82+37.5)

Packing dimensions

1420*820*720mm; 830*730*910mm,  1.39m³

Packing weight

186kg(100+86)


WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of 10l-100l rotary evaporator machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
