30L Rotary Evaporator

Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • BrandLABOAO
  • ModelLRE-3002
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

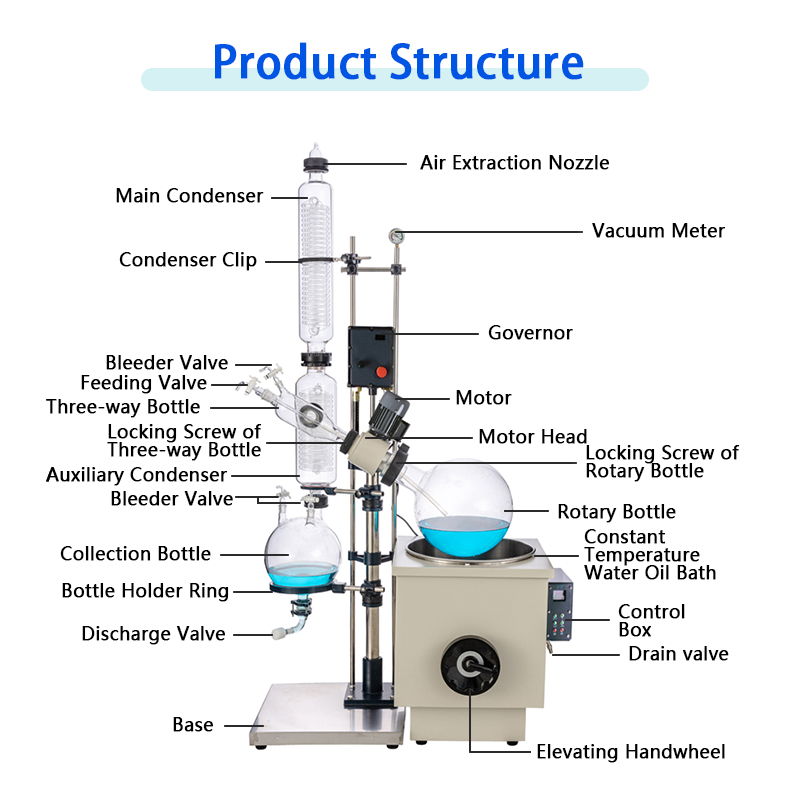

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.


FEATURES

1. Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .

2. USES the main and secondary efficient double condenser to ensure high recovery rate.

3. Rotating bottle with nut connection, it is easy to load and unload.

4. There is tap valve under the collection bottle mouth, recycled solvent is very fast.

5. Feeding continuously.

6. Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

7. Water bath with digital and continuous temperature controlling.

8. Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.

SPECIFICATIONS

Specification

Model

LRE-3002

Glass material

GG-17

Frame material

Stainless steel

Pot shell Material

Spray anti-corrosion       710*620*700mm

Pot bravery material

Stainless steel   500*280mm

Plate size

804*574mm

Evaporator flask

30L    125Flange port

Collect flask

20L    60Flange port

Vacuum degree

0.098Mpa

Rotary power

180W    220V/50Hz

Rotary speed

0-110rpm

Heating power

8KW     380V/50Hz

Heating temp.range

RT-180°C

Temp. accuracy

±1

Lifting disctance

180mm

Dimension(mm*mm*mm)

1520*620*2470

Packing size(mm*mm*mm)

1480*380*480  1180*830*710  790*750*850 1.46CBM

Packing weightKG

(47+76+56)179

Configuration list

Speed mode

Electronic stepless adjustable   speed

Rotor speed display

digital display

Temp. display

K type sensor with digital display

Temp. control

Intelligent temp.control

Sealing method

PTFE sealing

Condenser

Vertical efficiency three reflux   condenserMain condenser160*840Secondary condenser160*530

Continuous
  collection

non-return valve control

Lifting mode

Bath Manual lifting

Temp.
  measurement methods

19#Standard port

Continuous feed

40#Standard port feeding valve

Discharge valve

PTFE discharge valve,¢60Flange port

Vacuum display

Vacuum gauge

Optional

Lifting mode

Automatic electric lifting

Collecting device

Double collect bottle

Anti-explosion

Explosion-proof   motor&Explosion-proof inverterEX180W

Frame material optional

Spray or spray PTFE

Bath material

Fully304Stainless steel
