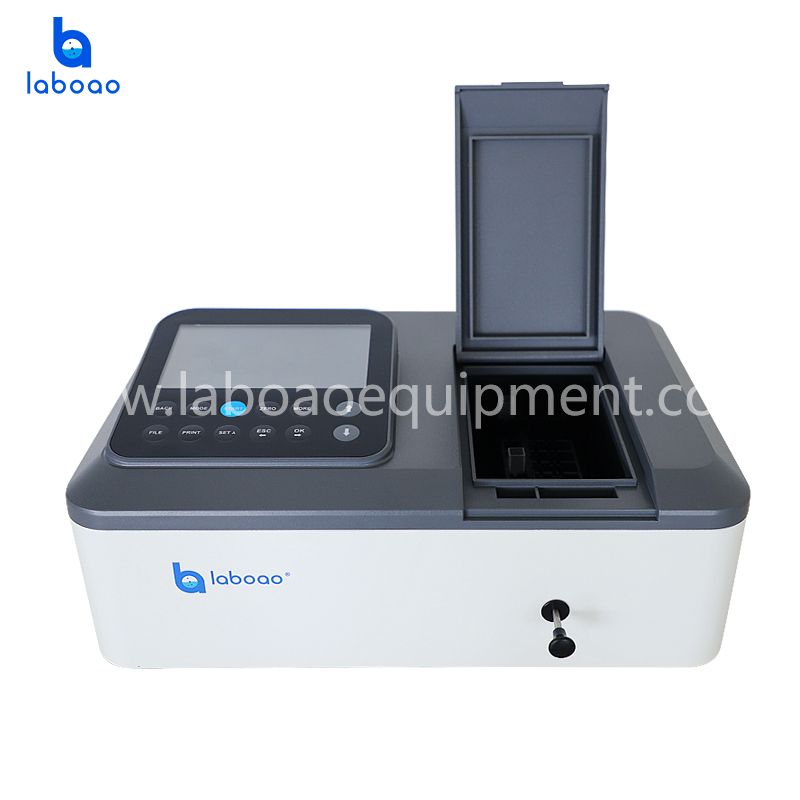

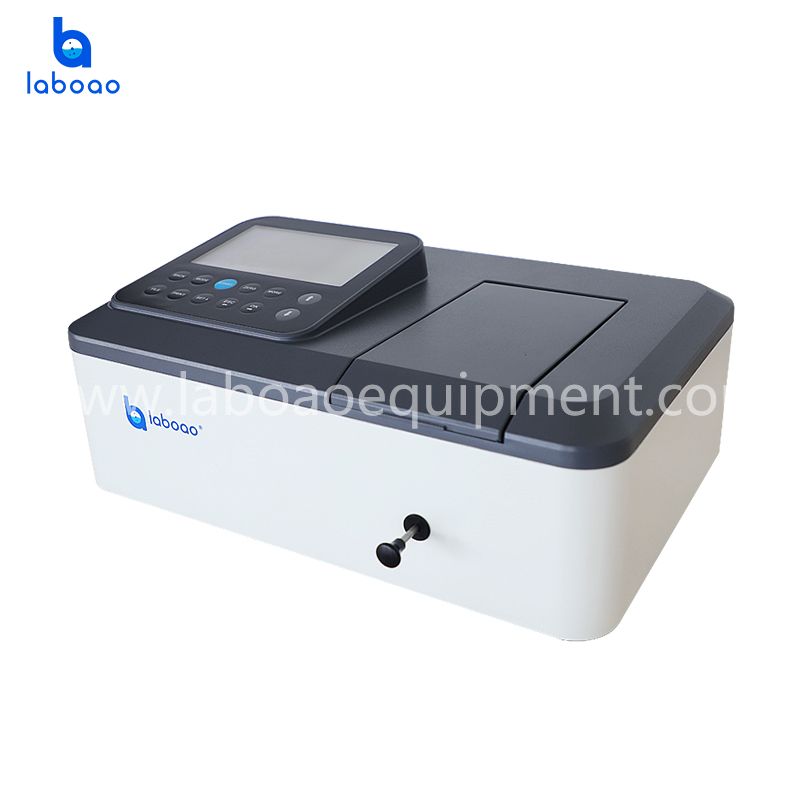

UV VIS Spectrophotometer For Tank Washing Water

This UV-Vis spectrophotometer is specially designed to test the water quality on board, especially for tank washing water.
  • BrandLABOAO
  • ModelLU-T21
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

This UV-Vis photometer is specially used to detect the water quality on ships. The main detection items of wall wash are APHA Color Test, Inorganic Chloride Test, Water Miscibility Test , Permanganate Time Test etc.

FEATURES

1.Monochromator with single-beam grating optical path structure, good stability, reproducibility and accuracy.

2.Advanced ARM microcomputer technology, excellent electronic circuit and signal processing, stable and reliable data, U disk data storage and export, software one-key upgrade, bluetooth printing and other data output.

3.Integrated aviation-grade aluminum alloy substrate and machined reflector base ensure long-term stability of the optical path.

4.7-inch color large-screen graphic LCD display, combined with the design of the navigation menu interface, the operation commands are clear, and it has special functions to prevent users from making mistakes. able to operate.

5.Strict manufacturing process and 32 key quality control points make each instrument durable.

6.Deuterium lamps, tungsten lamps, photocells, precision screw rods and other key components are selected from well-known and imported brands to ensure reliable instrument quality.

7.Four-slot 10-50mm universal adjustable manual sample rack, convenient for testing cuvettes of different specifications.

8.Independently designed deuterium lamp, tungsten lamp replacement window, flange positioning structure, easy to replace.

SPECIFICATIONS

Model

LU-T21

Optical     system

Single beam;     1200/mm imported holographic grating

Wavelength     range

190-1100 nm

Spectral     Bandwidth

2 nm

Maximum     allowable error of wavelength

±0.5 nm

Wavelength     repeatability

≤0.1 nm

Maximum     allowable error of transmittance (%T)

±0.3%T;   ±0.002Abs   (0-0.5Abs); ±0.004Abs (0.5-1.0Abs)

Transmittance     repeatability (%T)

±0.1%T;     ±0.001Abs (0-0.5Abs); ±0.002Abs (0.5-1.0Abs)

%0 line and     100% line noise (%T)

0% line     0.2/100% line 0.3

Drift

≤0.2 %T

Baseline     flatness

≤0.001 Abs

Stray light     (%T)

≤0.03 @220nm     and 360nm

Supply     voltage adaptability

≤0.2%T

Photometric     range

0-200%T,     -0.301-3A, 0-9999C(0-9999F)

Test Modes

Transmission,     Reflection, Absorbance, Concentration, Energy

Light source

deuterium     lamp + tungsten lamp

Display

7 inch touch     screen display (resolution 800*480)

System     language

Chinese,     English, Russian, Spanish

Software     upgrade

support U     disk one-key upgrade

Data output

U disk,     Bluetooth, USB software upload

Data output     format

CSV

Operation     Mode

Touch Screen

Sample     Holder

Four-slot     10-50mm Universal Adjustable Manual Sample Holder

Host     function

basic+quantitative+qualitative+time+DNA+multi-wavelength

Printer

Optional,     support Bluetooth printing

Power supply     range

AC90250V/ 5060Hz

Dimensions     (L×W×H)mm

470×330×210

Weight

12kg
