DESCRIPTION

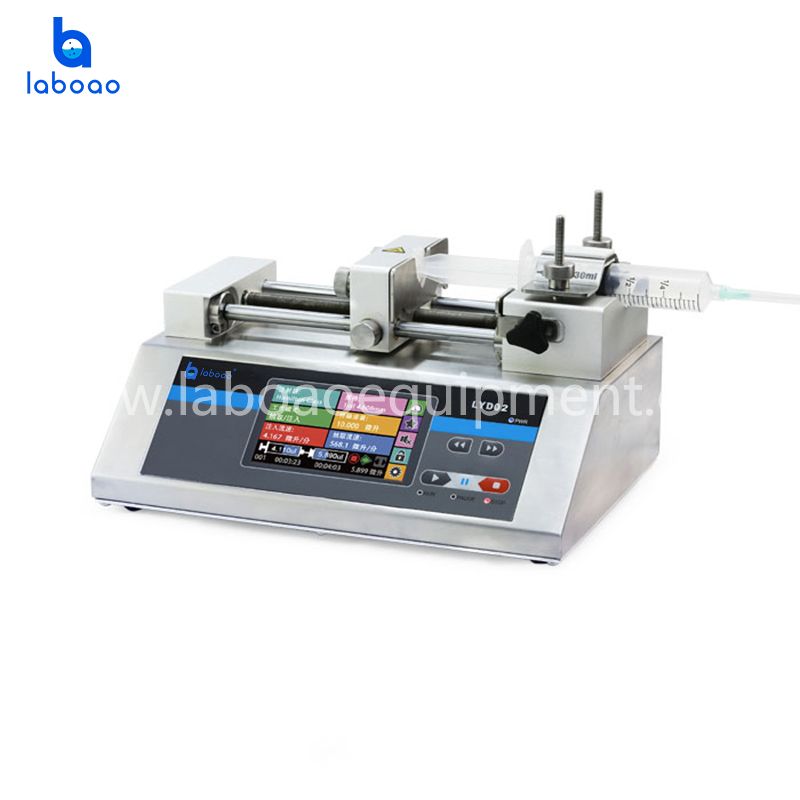

● LYD series syringe pump adopts integrated table model design, 4.3-inch HD LCD touch screen display and operation, can assembly 1～10 plastic syringes or gas tight syringes, size range of syringe 10μl～140ml，flow range 0.184nl/min～173.718ml/min.
● Use excellent control system and precision mechanical structure, linear travel accuracy<± 0.35%, multiple working modes are available, powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment.
● Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher.
● Strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field.
● RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc. multiple host.
FEATURES
• Assembly 1 to 10 plastic syringes or gas tight syringes.
• Multiple working mode options.
• Color LCD touch screen, convenient operation.
• Support screen lock, key mute operation.
• Button with indicator light, clearly working state.
• support for a variety of syringes, can be customized syringes.
• High accuracy control.
• Syringe protection and traffic jam alarm.
• RS485 communication，support the MODBUS protocol.
• External signal control start-stop and direction.
• Wide range power input.
• All-metal anti-static, anti-corrosion spraying process housing.
SPECIFICATIONS
Model | LYD01-01 | LYD 01-02 | LYD 02-01 | LYD 02-02 | LYD 03-01 | LYD 02-04 | LYD 02-10 | LYD 02-06 |
Work mode | infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode |
Number of channel | 1 | 2 | 1 | 2 | 1 | 4 | 10 | 6 |
Stroke of pump | 110mm | 140mm | 110mm | 140mm |
Advance per microstep | 0.156μm/μstep | 0.156μm/μstep | 0.03125μm/μstep | 0.156μm/μstep |
Linear speed | 1μm/min～150mm/min | 1μm/min～150mm/min | 0.2μm/min～30mm/min | 1μm/min～150mm/min |
Linear resolution | 1μm/min | 1μm/min | 0.2μm/min | 1μm/min |
Accuracy | error<±0.35%（>30% of pump stroke） |
Max rated linear force | >16kgf | >20kgf | >16kgf | >20kgf |
Thrust regulation | 1～100% arbitrary adjustable |
Syringe size | 10μl～60ml | 10μl～140ml | 10μl～60ml | 10μl～10ml | 10μl～60ml |
Syringe selection | built-in main manufacturers, the main model syringe to choose. Can use custom syringe, direct input syringe size and diameter |
Flow rate | 0.184nl/min～83.318ml/min | 0.184nl/min～173.718ml/min | 0.037nl/min～16.663ml/min | 0.184nl/min～24.520ml/min | 0.184nl/min～83.318ml/min |
Flow calibration | through the calibration procedure to obtain more accurate fluid volume |
Display | 4.3” color LCD screen display and transfusion volume, residual fluid volume, flow ,operation direction ,syringe specification, etc. Animation display operation |
Operation mode | touch screen + button |
Power-off memory | storing the running parameters automatically |
Function | pause and stop, the sound tip, the lock parameters, fast forward and retreat quickly ,display brightness adjustment |
State signal output | 1 road start-stop status ,1 road direction status |
Control signal input | 1 road startup status ,1 road directional signal |
Communication interface | RS485，MODBUS Protocol |
Dimension mm | 245×195×140 | 290×205×180 | 245×195×140 | 290×228×180 | 290×283×180 | 290×263×190 |
Weight | 3.2kg | 4.4kg | 3.2kg | 4.8kg | 5.2kg | 5.0kg |
Power supply | AC100～240V，50/60Hz |
Temperature | 5～40℃ |
Relative humidity | <80% |
