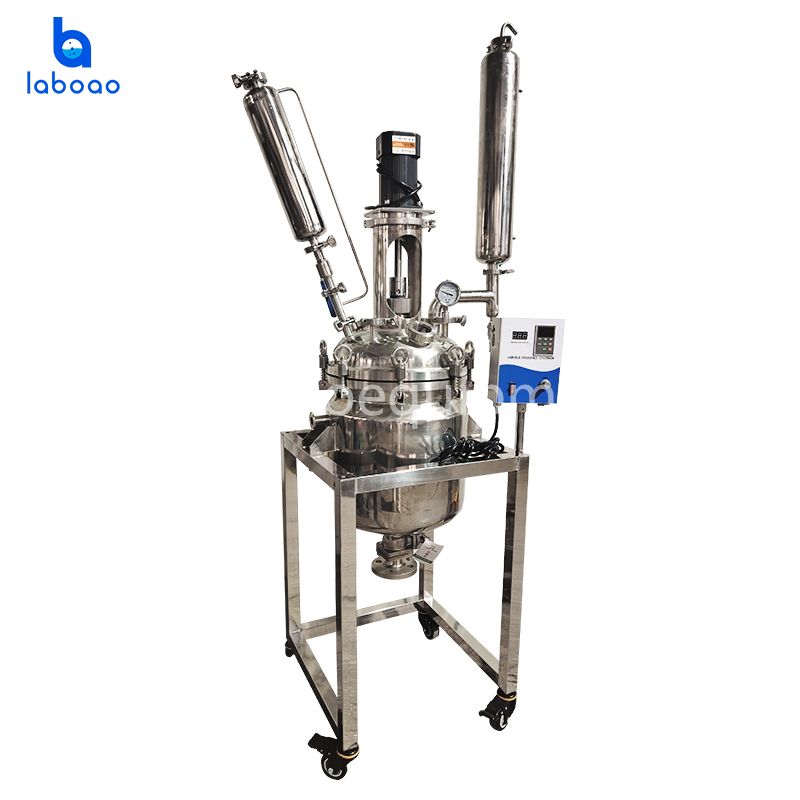

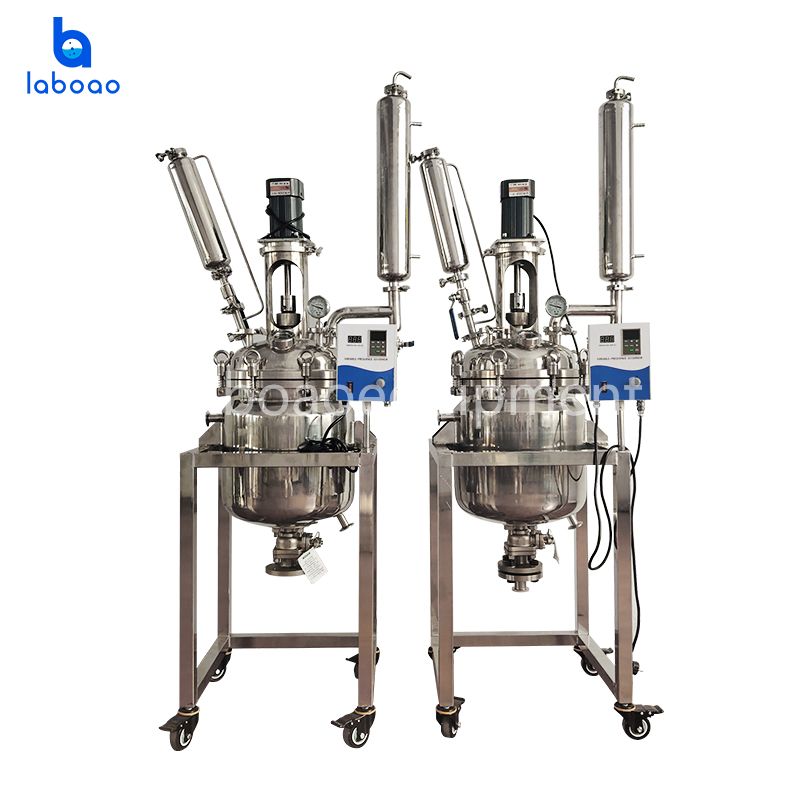

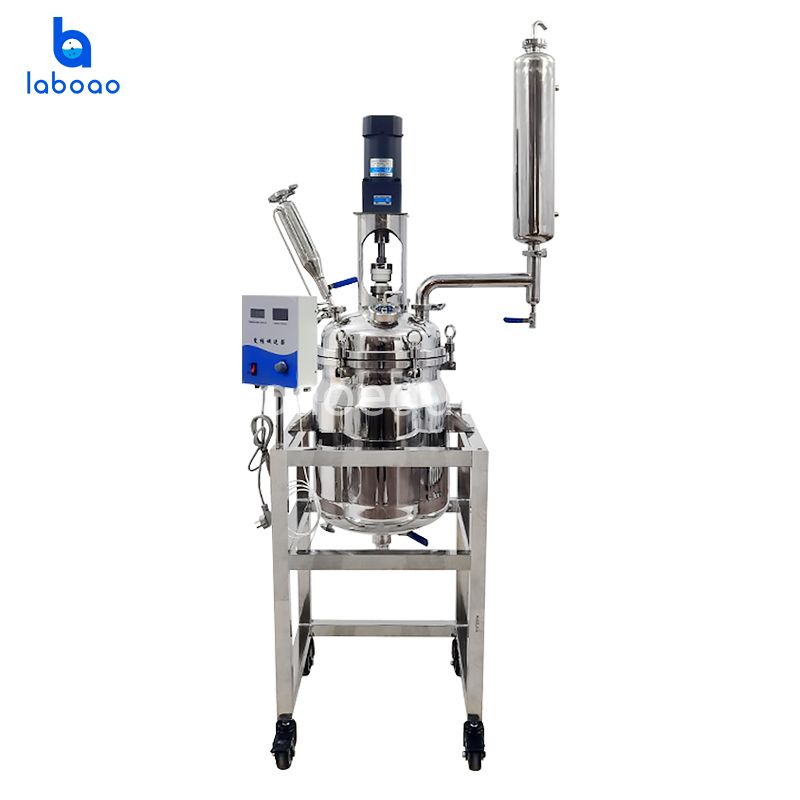

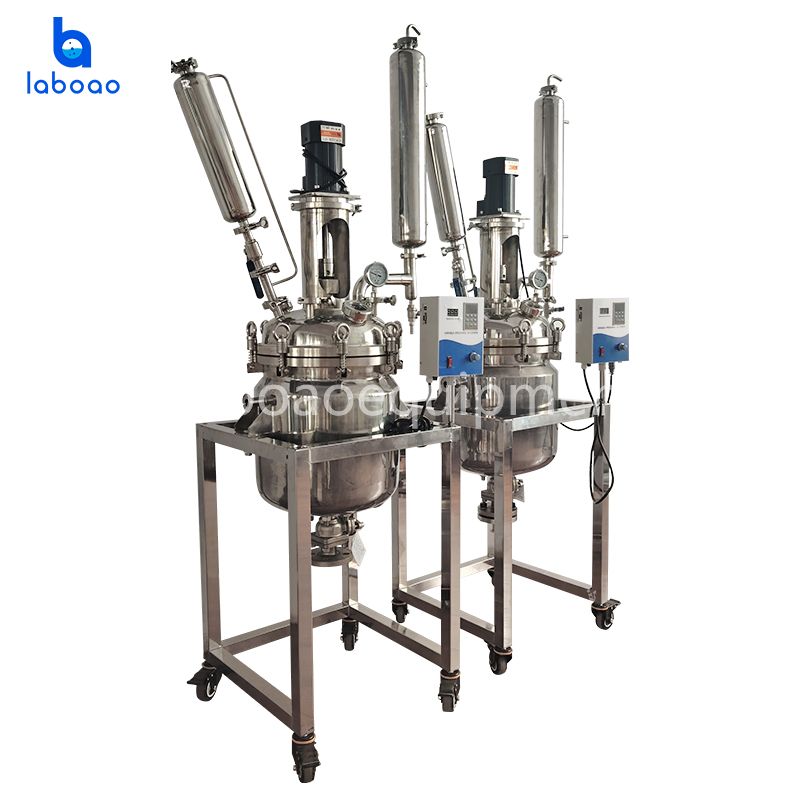

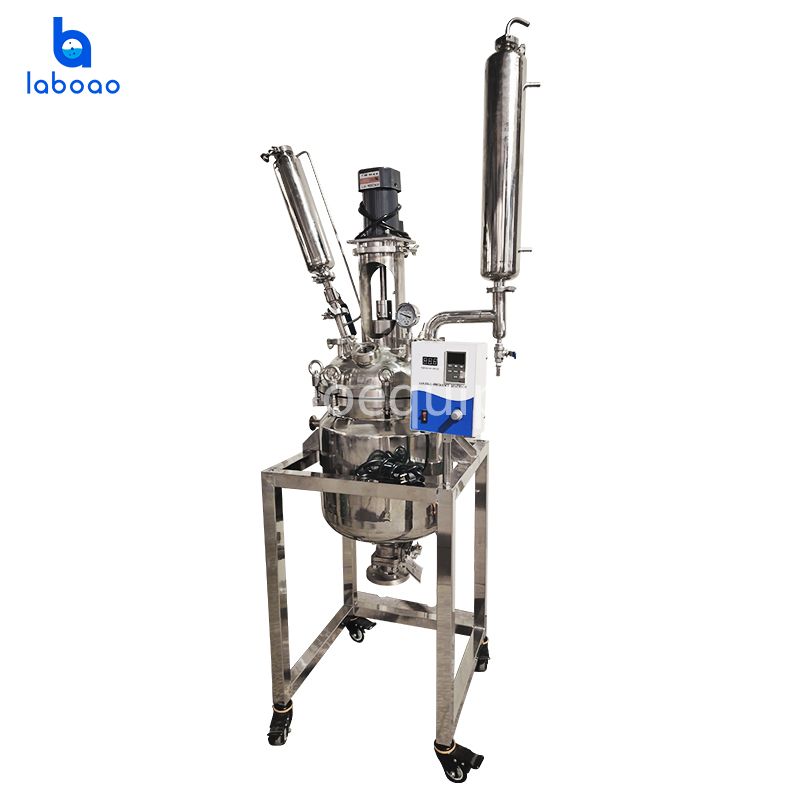

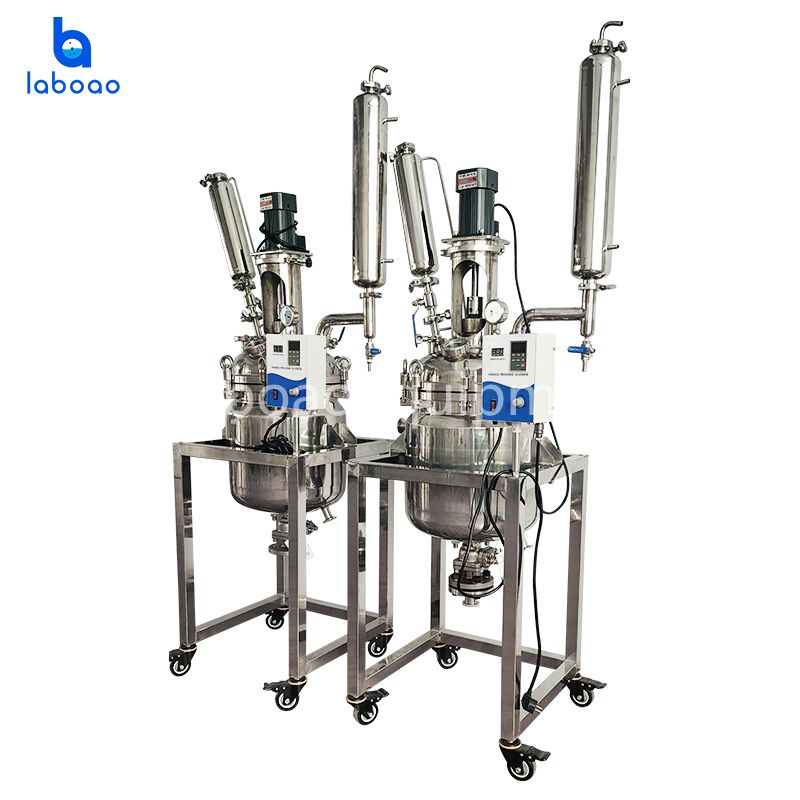

30L Double Layer Stainless Steel Reactor For Distillation
30L Double Layer Stainless Steel Reactor For Distillation

30L Double Layer Stainless Steel Reactor For Distillation

The overall structure of LABOAO 30L chemical stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.
  • BrandLABOAO
  • ModelLSR-30L
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

The Double layer stainless steel reactor is designed with double-layer stainless steel. The reaction solvent is placed in the inner layer for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under set constant temperature conditions, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed and distilled. It is an ideal choice for modern fine chemical plants, biopharmaceuticals and Ideal pilot and production equipment for the synthesis of new materials.

30L Double Layer Stainless Steel Reactor For Distillation  Structure.jpg

FEATURES

1. Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.

2. The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.

3. The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.

4. It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.

5. The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.

6. Eight-port reactor cover, extra-large port design for easy cleaning, standard port socket for optional assembly of reflux and distillation synthesis devices.

SPECIFICATIONS

Model

LSR-30L

Kettle   volume

30L

Mezzanine   volume

8L

Voltage/frequency

220V/50   Hz

Reaction   temperature

-120~260

Pressure

-0.1~0.3Mpa

Stirring   speed

0-460rpm

Power

200W

Sealed   form

Stainless   steel graphite combination mechanical seal

Number   of cauldron lid openings

Eight   ports (optional)

Material

SUS316L/SUS304

Sight   glass

Φ32

Scraper   sight glass

Φ51

Temperature   measuring hole

50.5   chuck/Φ12 temperature   measuring tube

Return   hole

50.5   chuck/1000ml funnel

Drop   hole

50.5   chuck/Φ38 return port

Pressure   gauge

50.5   chuck/± integrated pressure gauge

Impeller

SUS316L   propeller mixing paddle

Condenser

50.5 chuck/φ89   column cooling

Exhaust

2-point   exhaust valve

Bottom   valve

50.5   chuck/Φ89 column   cooling

Overall   dimensions

530*530*1900mm

Optional(Additional   fee)

Explosion-proof   whole machine/

electric   heating/Total 316L/collection tank/

mobile   frame /spraying PTFE
