5L Single Layer Glass Reactor

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • BrandLABOAO
  • ModelLGR-5F
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.


FEATURES

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs).

SPECIFICATIONS

Model

LGR-5F

Kettle volume

5L spherical

Voltage/Frequency

220V/50HZ

Stirring power

90W

Heating power

2KW

Stirring speed

0-800rpm/min

Bath temperature range

room   temperature to 180

Temperature accuracy

±1

Vacuum degree

0.098Mpa

Cover size

Φ230mm

5   ports

Stirring   port

Φ50mm flange   port

Condenser   port

29# standard   port

Constant   pressure funnel port

29# standard   port

Relief port

24# standard   port

Temperature   measuring port

24# standard   port

Stirring  paddle

Φ10*530H(mm)leafing 90mm

Condenser   size

Φ60*450H(mm)upper with 24# standard portupper with 29# standard plug

Constant   pressure funnel

500ml, upper   with 24# standard port match wit glass plug, upper with 29# standard plug

Relief valve

24# standard   plug valvevent   nozzle(padoga connector),outer diameter 10mm

Temperature   measuring port

24#  standard plug glass measuring tube

Collecting   device

2 adaptor24# standard port500 spheric collecting bottle

Vacuum   suction nozzle

24# glass   exhaustorsuction   nozzle (padoga connector),outer diameter 10mm

In and out   circulation nozzle of condenser coil

padoga   connector,outer diameter 10mm

Pot bravery   dimension

Φ280*170H(mm)

Overall   dimension (W*L*H)

(430-1030)*330*1150mm

Net weight

25kg

Packing   dimension

1020*480*520mm,   0.26m³

Packing   weight

40kg


WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of single layer glass reactor machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

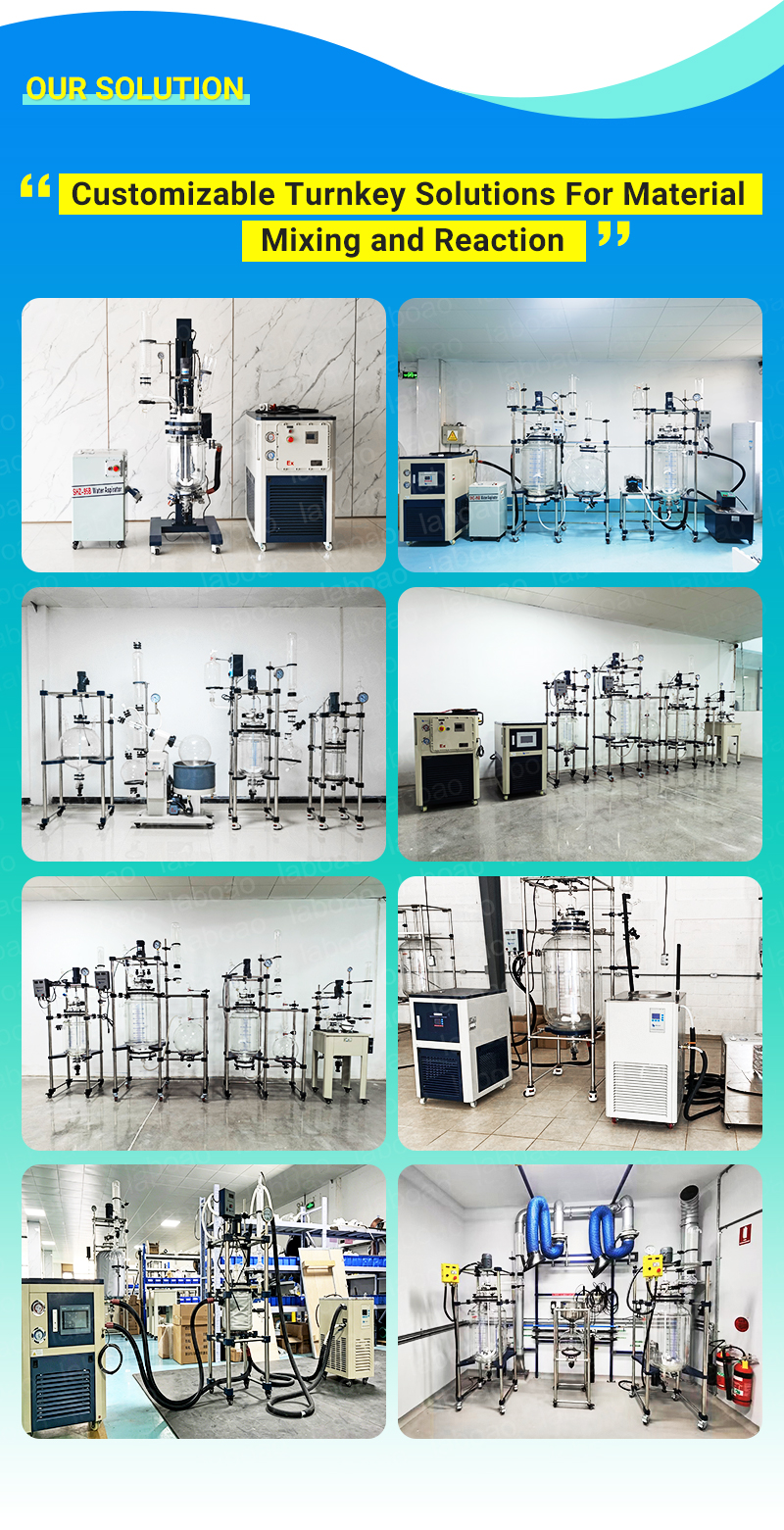

CUSTOMER CASES
