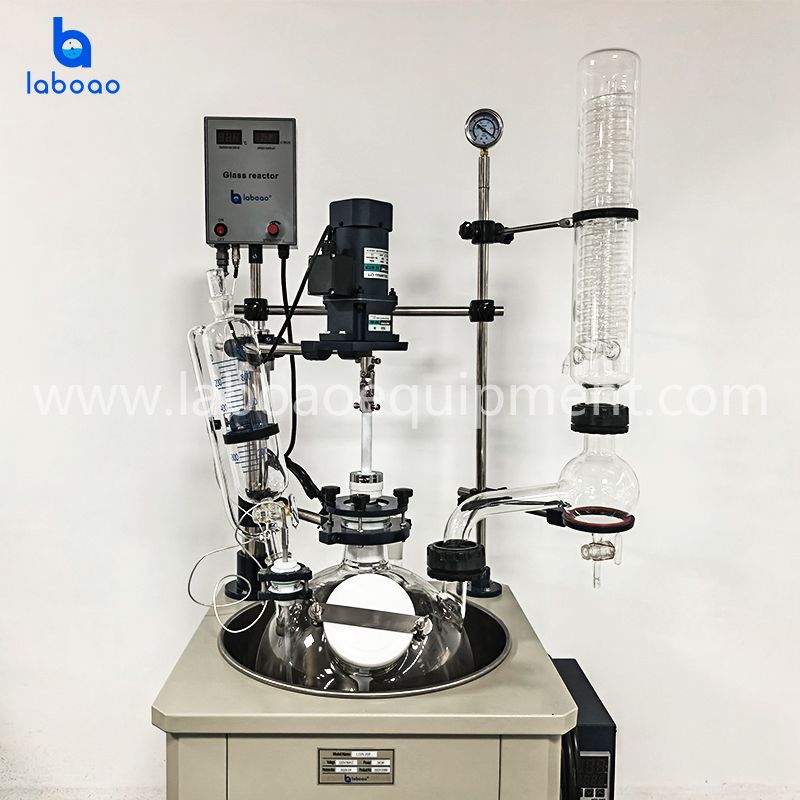

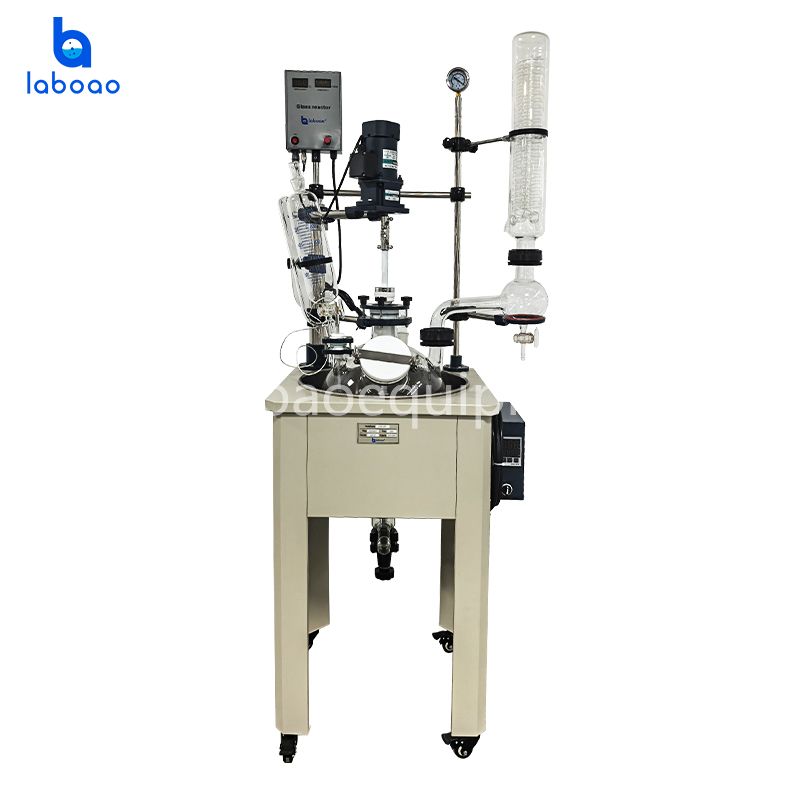

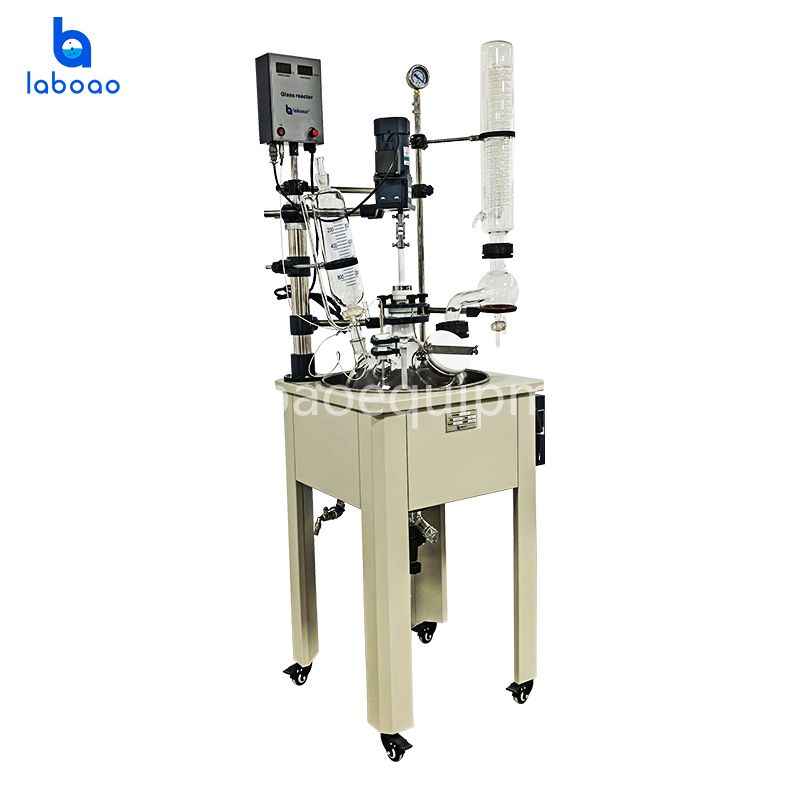

20L Single Layer Glass Reactor

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • BrandLABOAO
  • ModelLGR-20F
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.


FEATURES

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

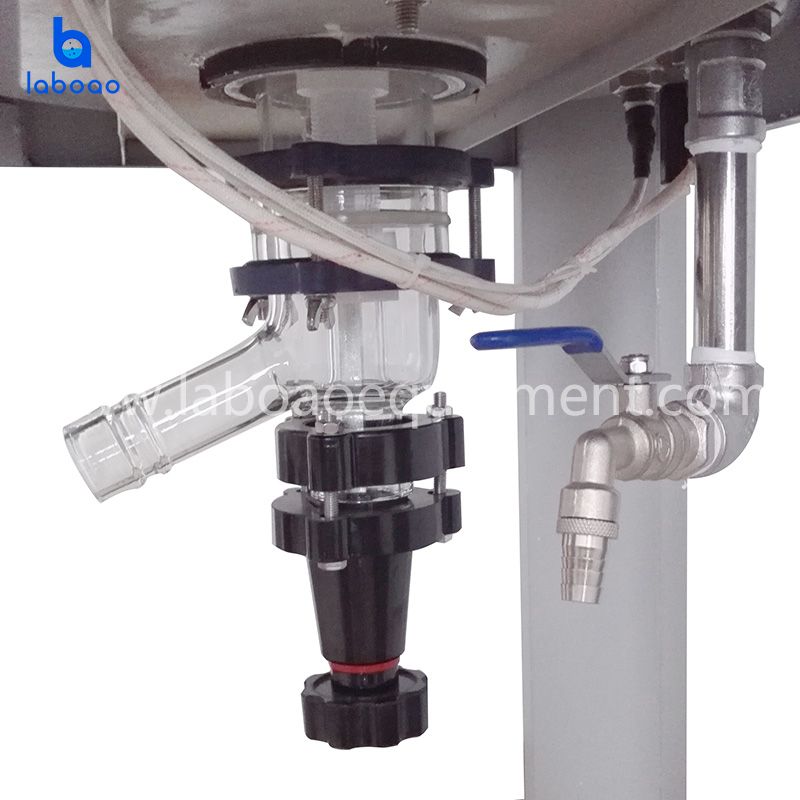

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

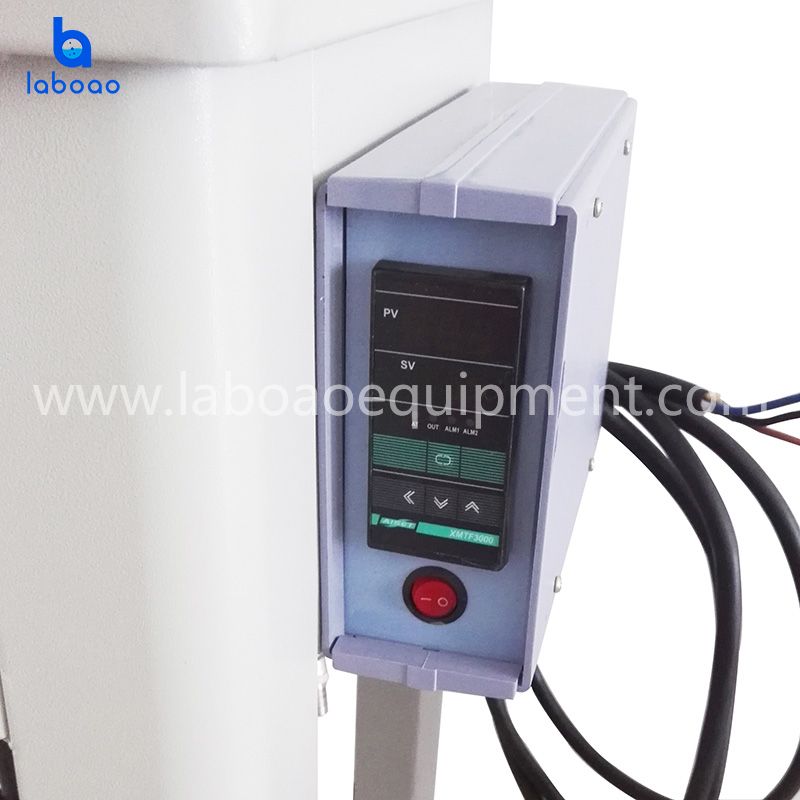

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs)

SPECIFICATIONS

Model

LGR-20F

Kettle   volume

20L spherical

Voltage/frequency

220V/50HZ

Stirring   power

90W 1/3

Heating   power

5KW

Stirring   speed

0-450rpm/min

Bath   temperature range

room temperature to 180

Temperature   accuracy

±1

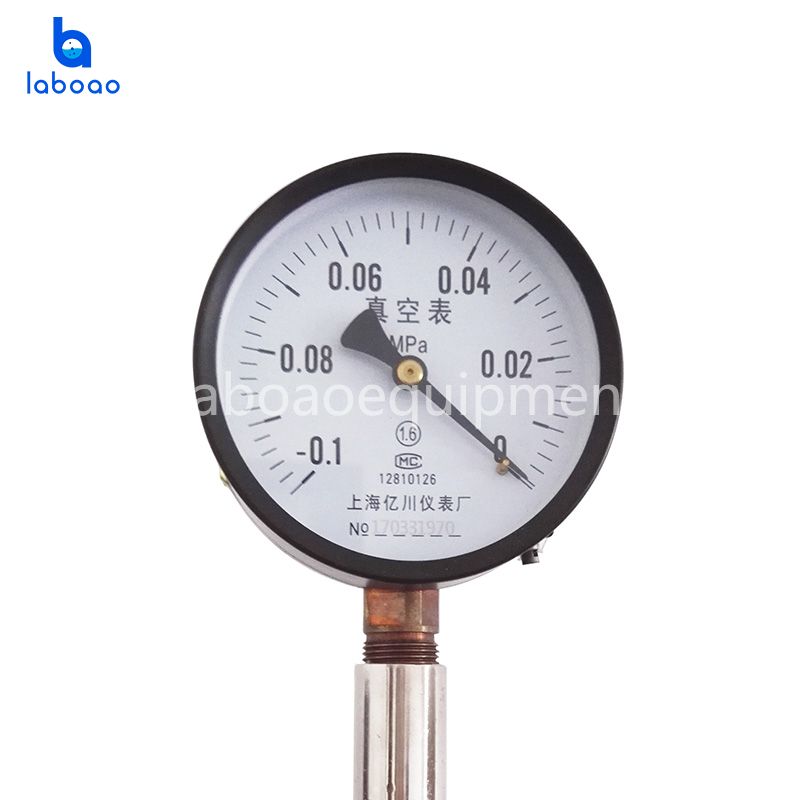

Vacuum   degree

0.098Mpa

Kettle size

Φ355mm

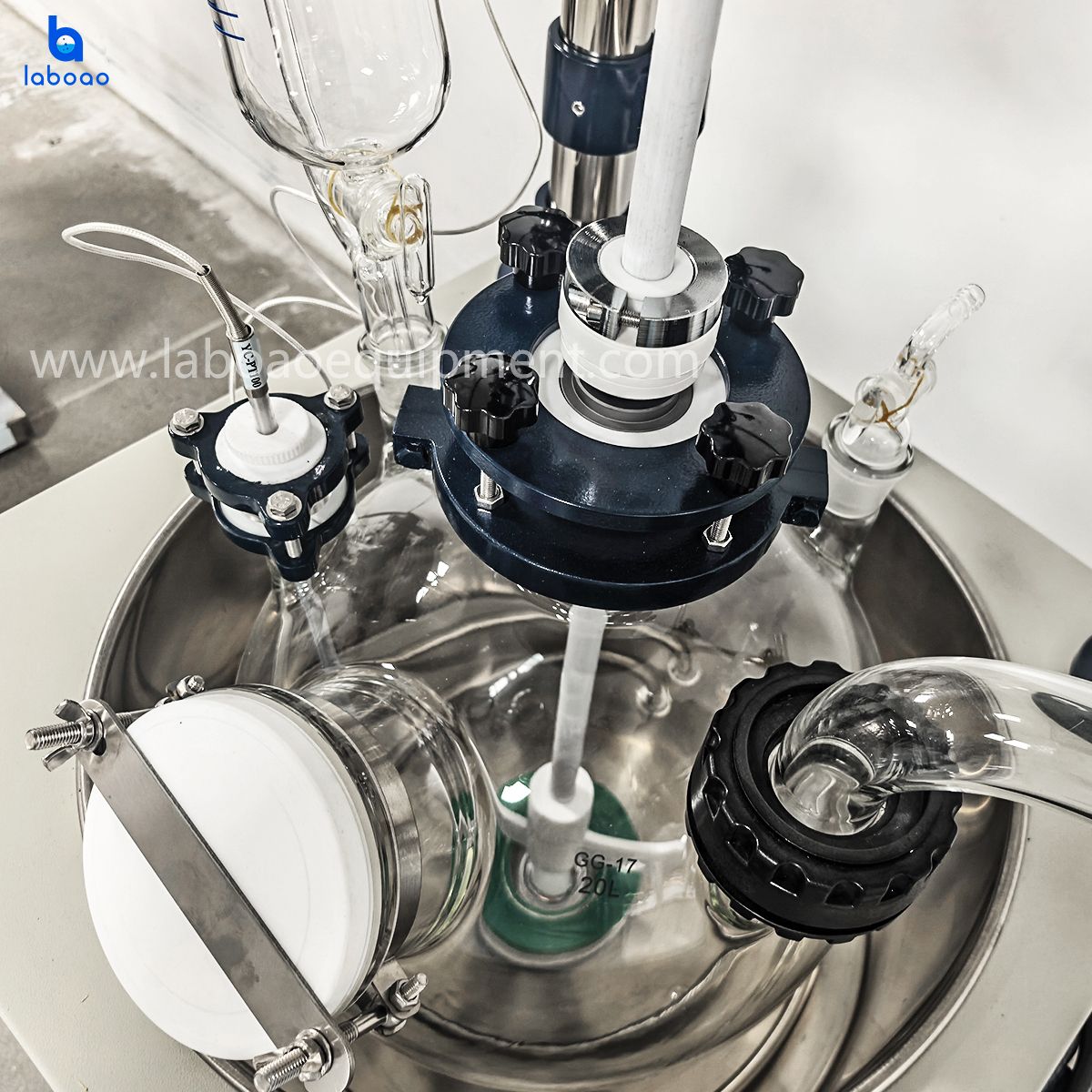

7Port   of the kettle

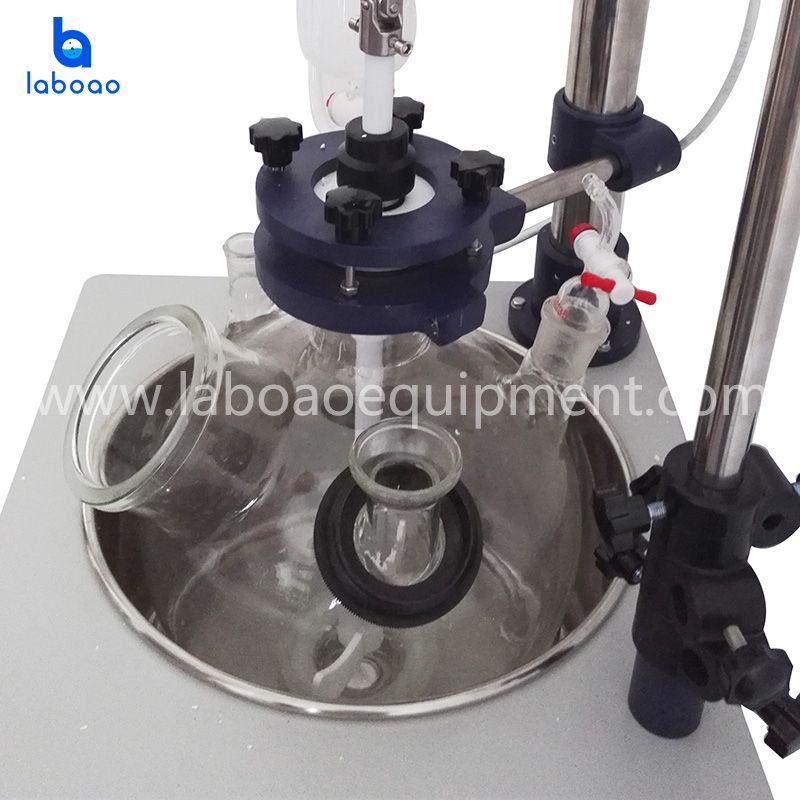

Stirring port

Φ80mm flange port

Condenser reflux port

50#ball mill port

Constant pressure funnel port

34# standard port

Relief port

34# standard port

Temperature measuring port

Φ45 flange port

Solid feeding port

Φ125mm  flange port   matched with PTFE cover

Baiting port

Φ80mm  flange port

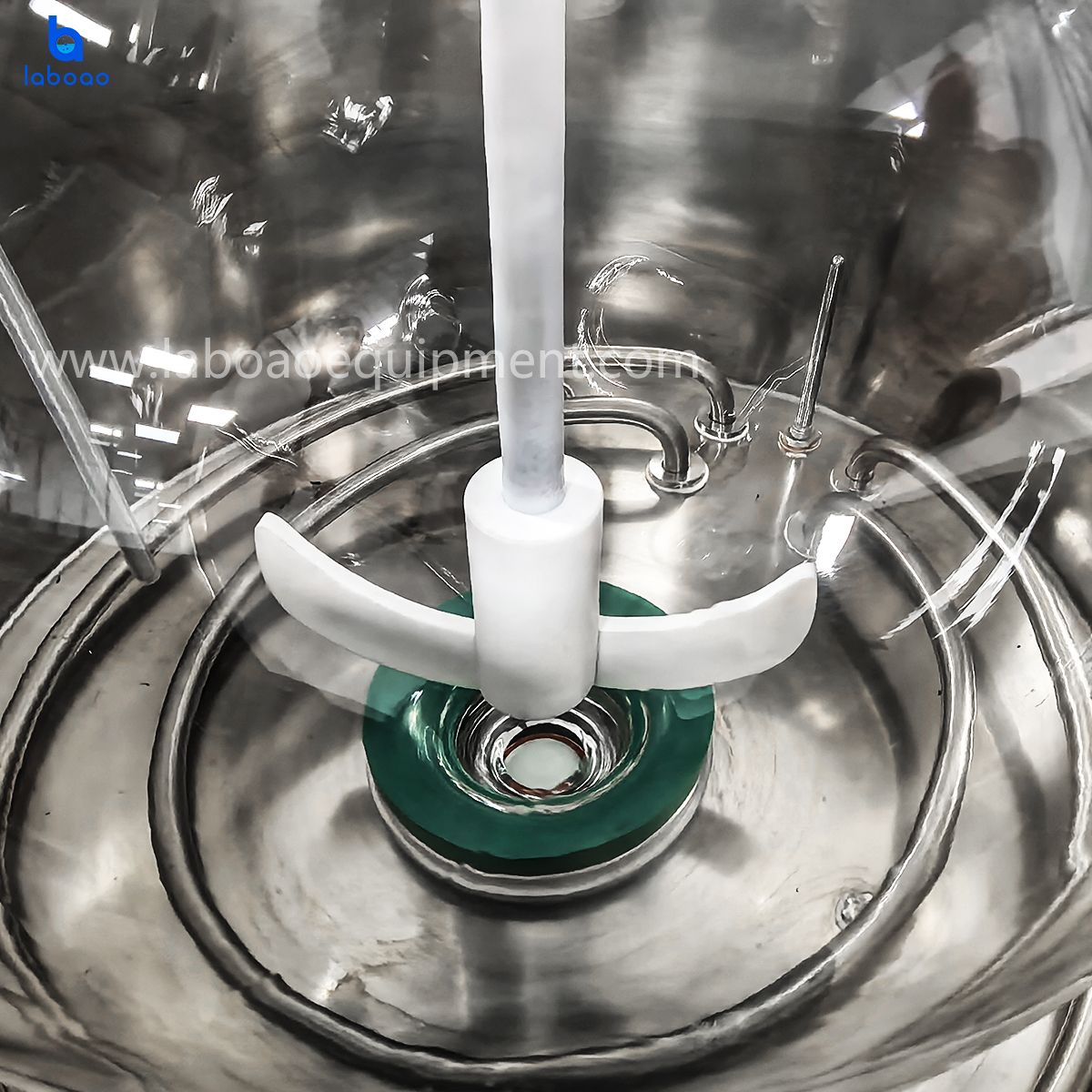

Stirring  paddle

Φ17*650H(mm),  leafing 190mm

Condenser size

Φ100*600H(mm)down with Φ60 flange port

Condenser area

0.4

Reflux elbow

upper with Φ60 flange portleft with 50# ball mill plug

Constant pressure funnel

1Lupper   with 29# standard port match with glass plugdown with 34# standard plug

Relief valve

34# standard plug valve, vent nozzle (pagoda connector),   outer diameter 12mm

Baiting valve

Φ80 flange portΦ33mm baiting portinclined discharging port (pagoda connector)Φ34mm,  from the floor 350mm

Vacuum suction nozzle

padoga connector,outer diameter 12mm

In and out circulation nozzle of condenser coil

padoga connector,outer diameter 15mm

Pot bravery dimension

Φ450*260H(mm)

Overall dimension (W*L*H)

810*540*1960mm

Net weight

48kg

Packing dimension

1200*740*920mm, 0.82m³

Packing weight

93kg
