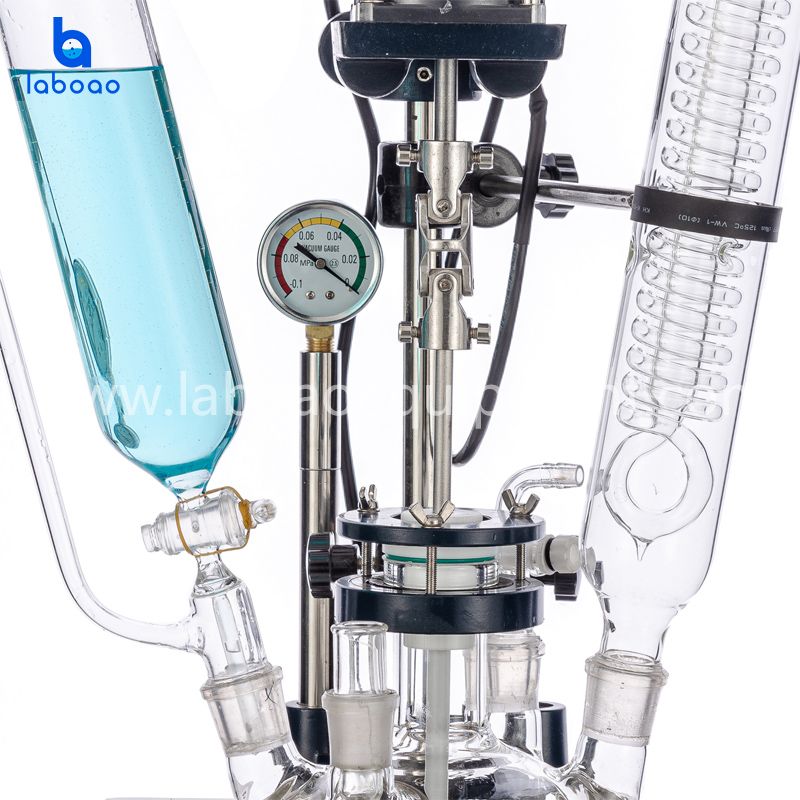

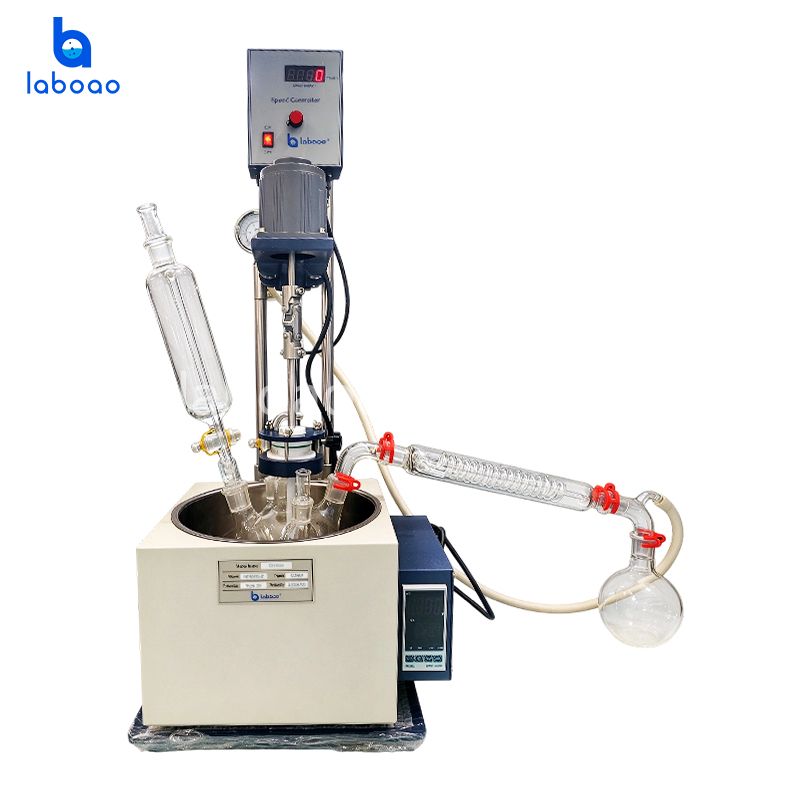

1L Single Layer Glass Reactor

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • BrandLABOAO
  • ModelLGR-1F
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.


Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

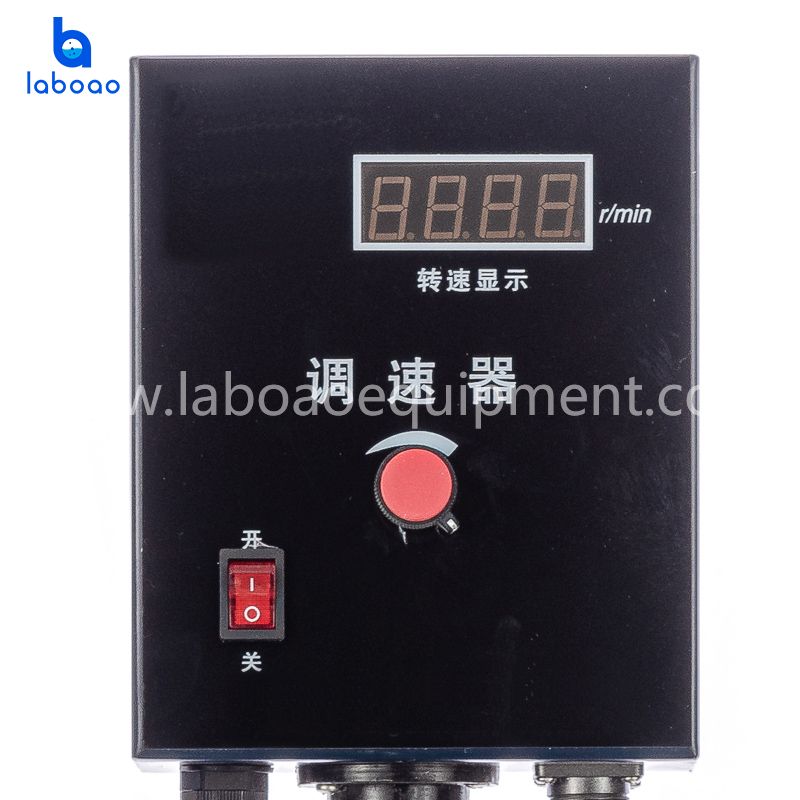

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

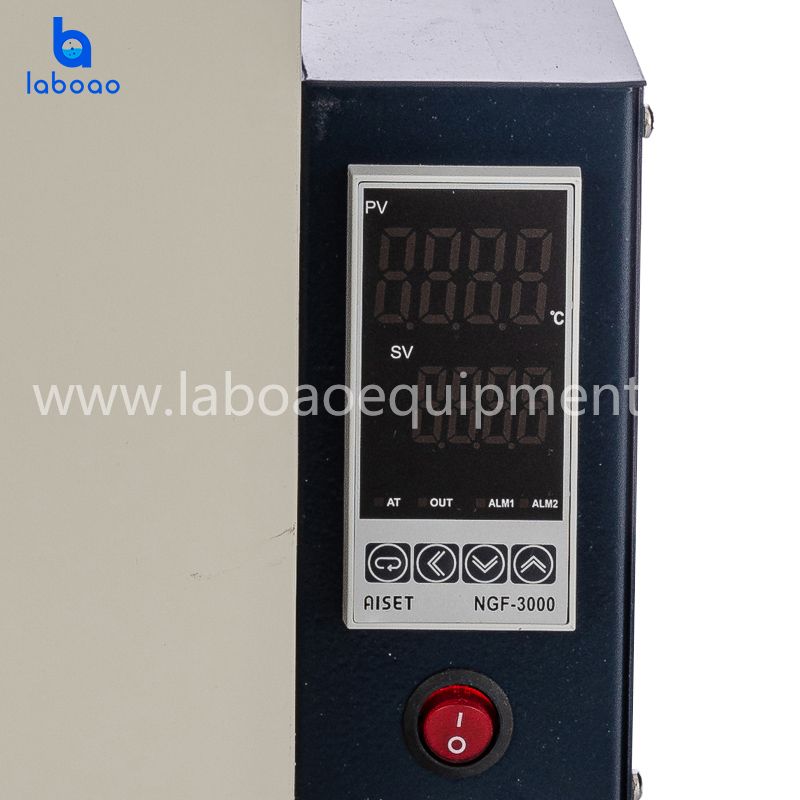

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs).




Kettle volume

1L spherical



Stirring power


Heating power


Stirring speed


Bath temperature range

room temperature to 180

Temperature accuracy


Vacuum degree


Cover size


5 ports

Stirring port

Φ50mm flange port

Condenser port

24# standard port

Constant pressure funnel port

24# standard port

Relief port

19# standard port

Temperature measuring port

19# standard port

Stirring  paddle

Φ10*350H(mm)leafing 80mm

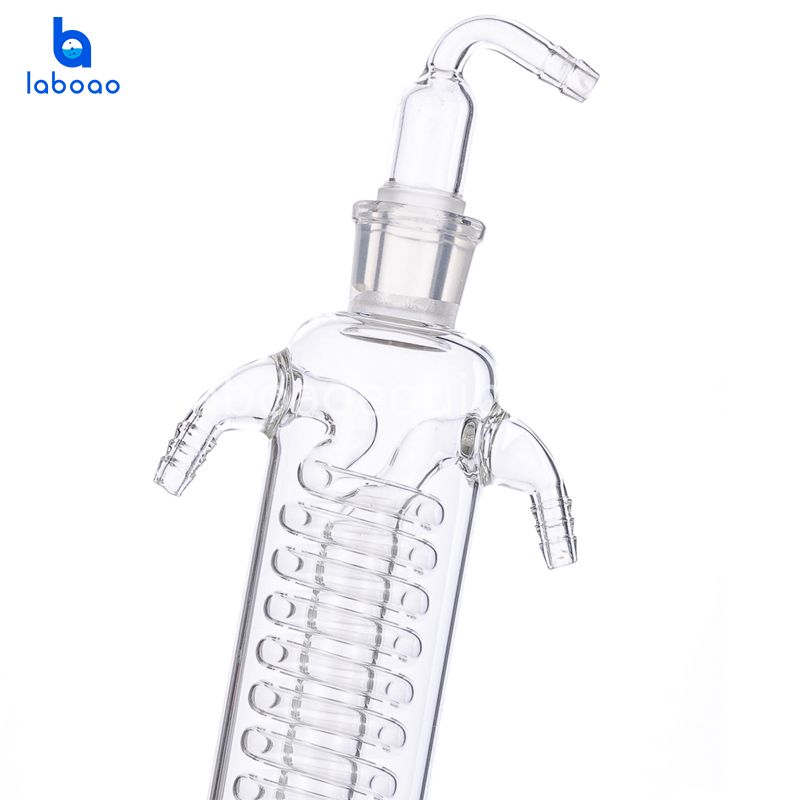

Condenser size

Φ40*350H(mm)upper with 24# standard portupper with 24# standard plug

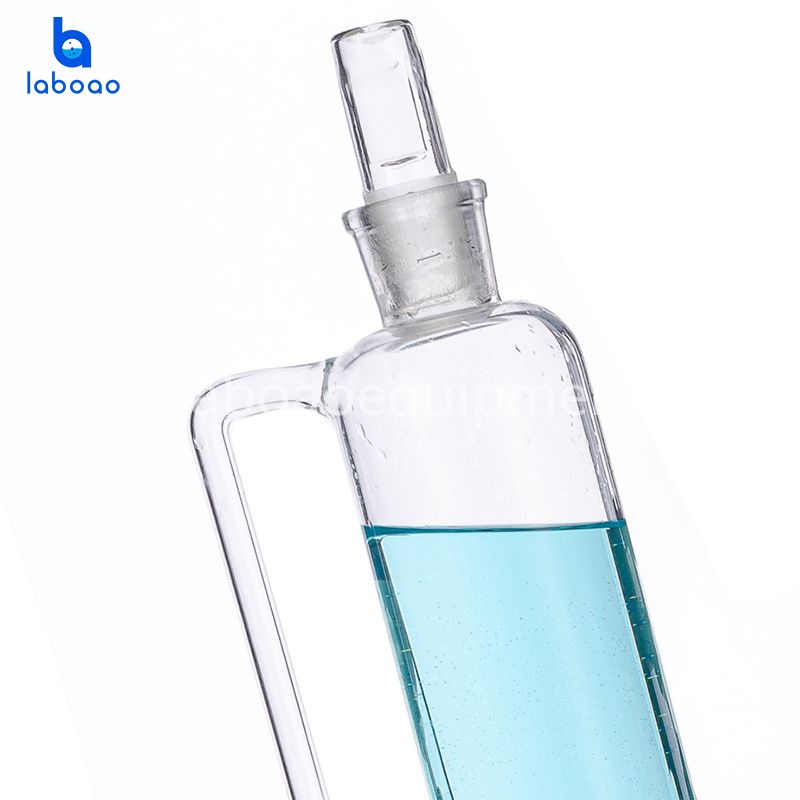

Constant pressure funnel

250ml, upper with 24# standard port match wit glass plug,   upper with 24# standard plug

Relief valve

19# standard plug valvevent nozzle(padoga connector),outer diameter 10mm

Temperature measuring port

19#  standard plug   glass measuring tube

Collecting device

2 adaptor24# standard port500 spheric collecting bottle

Vacuum suction nozzle

24# glass exhaustorsuction nozzle (padoga connector),outer diameter 10mm

In and out circulation nozzle of condenser coil

padoga connector,outer diameter 10mm

Pot bravery dimension


Overall dimension (W*L*H)


Net weight


Packing dimension

1000*460*510mm, 0.23m³

Packing weight
