10L Single Layer Glass Reactor

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
  • BrandLABOAO
  • ModelLGR-10F
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.


FATURES

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available.

( We can add the cooling coil and an anti-explosion device according to user's needs).

SPECIFICATIONS

Model

LGR-10F

Kettle volume

10L spherical

Voltage/frequency

220V/50HZ

Stirring power

90W 1/3

Heating power

3KW

Stirring speed

0-450rpm/min

Bath temperature   range

room temperature   to 180

Temperature   accuracy

±1

Vacuum degree

0.098Mpa

Kettle size

Φ280mm

7Port of the   kettle

Stirring port

Φ80mm flange   port

Condenser reflux   port

50# ball mill   port

Constant   pressure funnel port

34# standard   port

Relief port

34# standard   port

Temperature   measuring port

Φ45 flange port

Solid feeding   port

Φ125mm flange   port matched with PTFE cover

Baiting port

Φ80mm flange   port

Stirring  paddle

Φ17*600H(mm),   leafing 150mm

Condenser size

Φ100*600H(mm)down with Φ60 flange port

Condenser area

0.4

Reflux elbow

upper with Φ60   flange portleft with 50# ball mill plug

Constant   pressure funnel

1Lupper with 29# standard port match with glass plugdown with 34# standard plug

Relief valve

34# standard   plug valve, vent nozzle (pagoda connector), outer diameter 12mm

Baiting valve

Φ80 flange portΦ33mm baiting portinclined   discharging port (pagoda connector)Φ34mm,    from the floor 350mm

Vacuum suction   nozzle

padoga   connector,outer diameter 12mm

In and out   circulation nozzle of condenser coil

padoga   connector,outer diameter 15mm

Pot bravery   dimension

Φ350*220H(mm)

Overall   dimension (W*L*H)

710*440*1900mm

Net weight

42kg

Packing   dimension

1170*590*840mm,   0.58m³

Packing weight

81kg


WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of single layer glass reactor machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

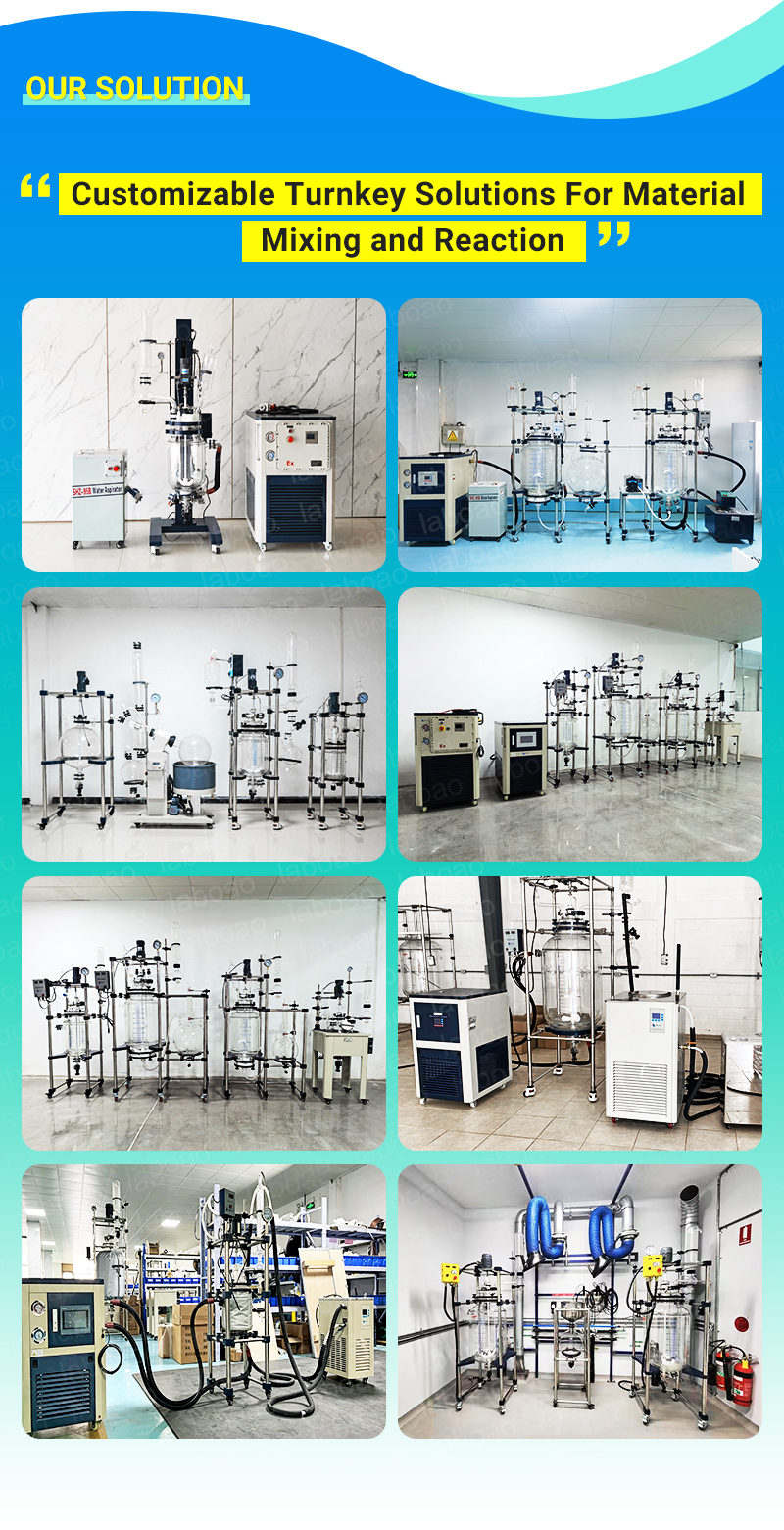

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
