DESCRIPTION
Laboratory short path distillation is a thermal separation process of heat-sensitive products under vacuum conditions. By increasing the vacuum to eliminate the atmospheric pressure in the system, when the pressure drops, the boiling point of the contained compounds will drop. This process makes the extraction of heavier molecules faster and more efficient. The short residence time and low evaporation temperature will cause minimal thermal stress on the distillation product. It is designed based on the principle of molecular distillation. Typical applications are polymer organic compounds, especially from the chemical pharmacy and food industries. Distillation is one of the most important thermal separation methods.
FEATURES
(1) The operating temperature is low, which can greatly save energy consumption.
(2) Distillation pressure is low, requiring operation under high vacuum.
(3) The heating time is short, which reduces the thermal damage of heat-sensitive substances.
(4) High degree of separation and high product yield, especially suitable for specific distillation.
SPECIFICATIONS
Model | LSD-5 |
Flask | 5L |
Material | Borosilicate Glass 3.3 |
Process principle | Vacuum distillation |
Components | Glass kit, cold trap kit, electric heating mantle |
Interface Specification | 24/40, 29/42 |
Power | 100~2400W |
Main Purpose | Laboratory reaction/distillation |
Voltage | 110V/220V, 50/60Hz |
Size | 240mm*135mm*235mm |
Packing size | 570mm*485mm*230mm |
Weight | 25KG |
Optional | 10L, 20L |

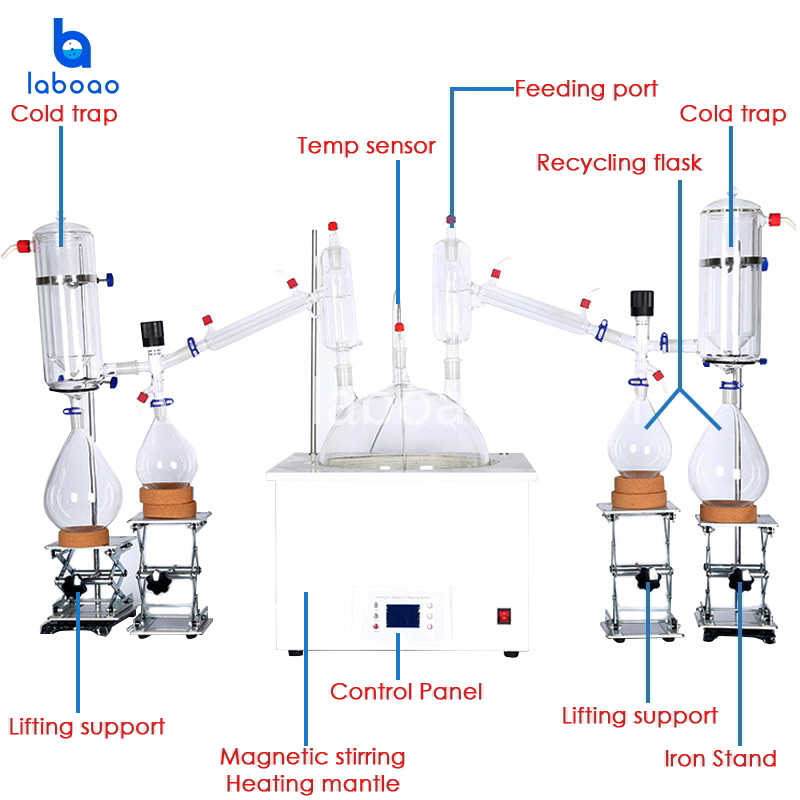

CONFIGURATION LIST
1. Heating mantle *1 | 9. Receiving flask *1 |
2. Double neck round bottom flask *1 | 10. #24 Plastic clips *6 |
3. Distillation elbow with vacuum exhaust port *1 | 11. Spray paint hoop *1 |
4. Thermometer casing *2 | 12. Cross clip *1 |
5. Wooden support *4 | 13. GL-14 Connertors *5 |
6. Three-claw distillation receiver *1 | 14. Iron chain 40~145mm *1 |
7. Round bottom flask *3 | 15. Iron stand 250*160mm *1 |
8. Cold trap *1 | 16. Lifting support 100mm *1 |
