DESCRIPTION
The instrument is designed and made as per T0625 “Asphalt Brookfield Rotational Viscosity Test (Brookfield Viscometer Method)” in the Industry Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids.
FEATURES
1. The instrument adopts the advanced mechanical design technologies and manufacturing techniques, and uses microcomputer technologies for temperature control, data collection and data process.
2. The display is a background light, ultra-brighten LCD. It is also equipped with a micro-printer for printing.

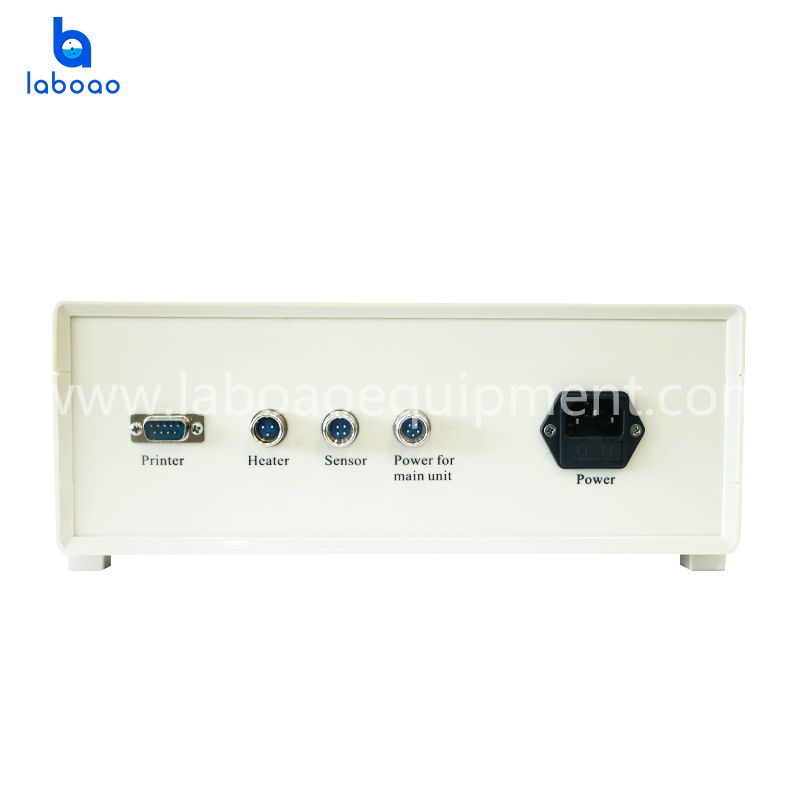

3. The test data can be shown on the LCD in real time or printed out through the printer. It can also connect to a computer through the RS232 communication port.
4. According to the measurement of the viscosity of the liquid to choose the speed with the use of speed, meet the requirements of different range of measurement.
SPECIFICATIONS
Model | NDJ-1C |
Measuring range (mPa·s) | 100~2*105 |
Rotor speed (r/min) | 5, 10, 20 and 50 |
Rotor specifications | No.21, 27, 28 and 29 total 4 pieces of spindles |
Measurement error (F·S) | ± 1% |
Temperature range | 45~200 ℃ |
Temperature accuracy | ±0.1 ℃ |
Sample cylinder | 20ml |
Power Supply | AC (220 ± 10%) V, (50 ± 10%) Hz |
Ambient temperature | 5 ℃ ~ 35 ℃ |
Relative humidity | ≤80% |
OPTIONAL
1. NDJ-1C Brookfield Viscometer and Computer communication software(CD)
2. 300℃ high temperature heating furnace
3. 30# rotator
