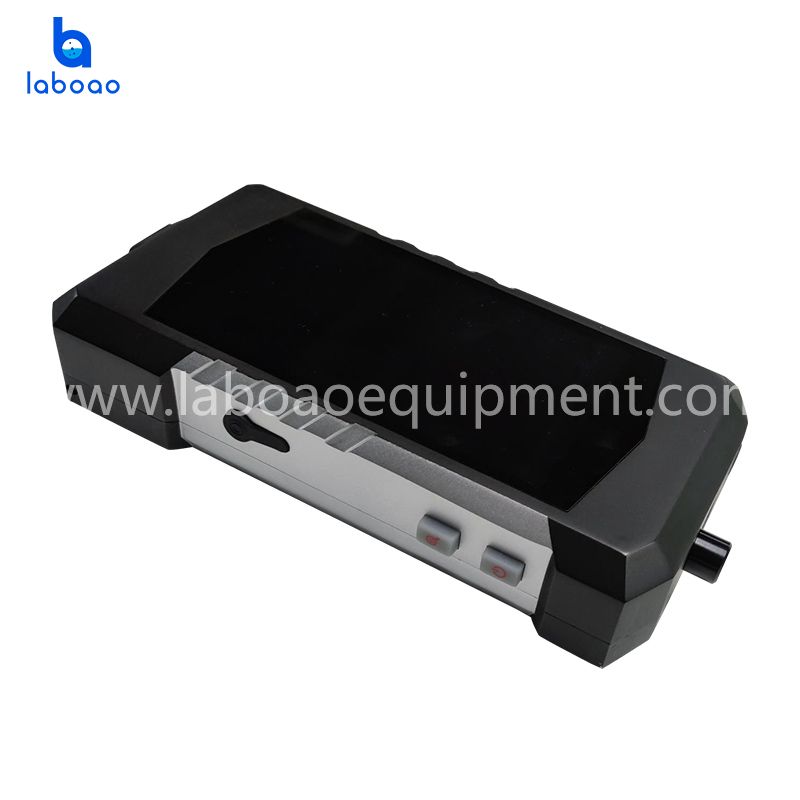

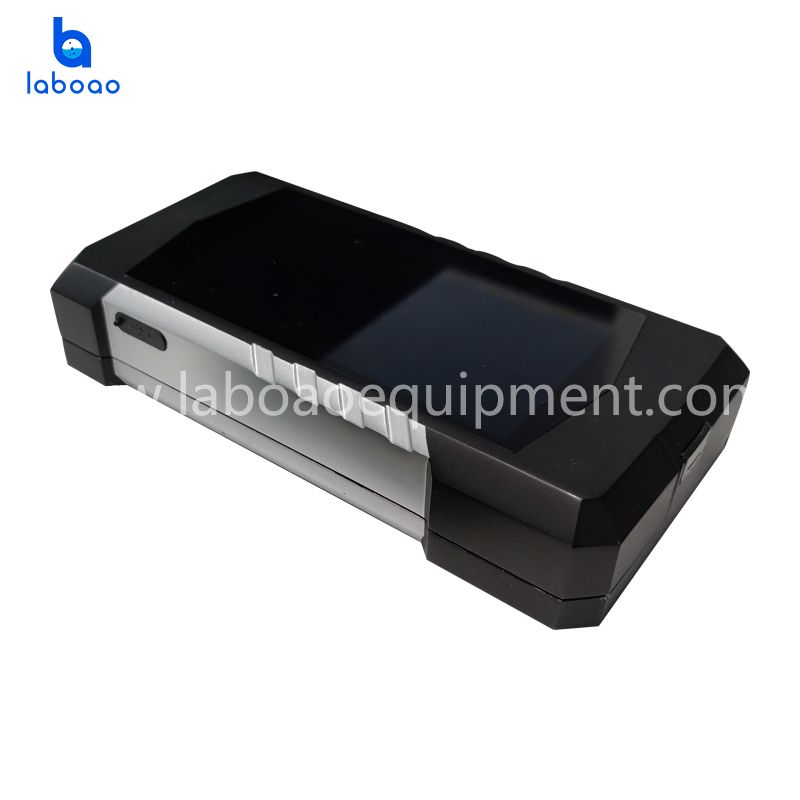

Ultra Fast 1064nm Handheld Raman Spectrometer

Ultra Fast 1064nm Handheld Raman Spectrometer

LATR6600Pro is based on the ultra-high fluorescence suppression effect of the 1064nm excitation light itself, which is especially suitable for the detection of high-fluorescence samples; LATR6600Pro adopts a newly designed high-throughput optical path structure and signal processing technology, which increases the signal sensitivity by 4 times and accelerates the detection speed 4 times. Its size is extremely small, less than 950g, and it is very convenient to carry. It can be used in customs, public security, laboratories, workshops, warehouses, docks and other sites to quickly identify drugs, precursor chemicals, explosives, jewelry, jade, raw materials and other items. And it can be used to quickly detect and identify additives, pesticide residues, and veterinary drug residues in food.

BrandLABOAO
ModelLATR6600 Pro
PortAny port in China
PackagePlywood case package

GET A QUOTE EMAIL

Payment More

We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

Download

DESCRIPTION

LATR6600Pro has built-in excellent Raman spectrum recognition algorithm, which can detect substances without difference, easily identify substances, and can add user's own spectrum data at the same time. Using Android system, the interface is simple and clear, equipped with a 5.5-inch high-definition screen, using a high-definition camera 13 million, can record the inspection site at any time, built-in WIFI, Bluetooth, GPS and other modules, simple and smart. Public safety, food safety, pharmaceutical safety, fast non-destructive testing, everything is under your control!

LABOAO provides full technical support and services, including spectral library building, method & verification, IQ/OQ/PQ validation, etc.

Application:

Police anti-narcotics (detection of heroin, fentanyl, etc.);

Detection of hazardous substances at the entrance of high-speed rail and subway;

Identification of raw materials and excipients in the pharmaceutical industry;

Food safety testing;

Gem identification

Substance identification, etc.

FEATURES

1. The speed of ultra-fast recognition is four times higher than that of the third generation.

2. 1064nm stimulates light and reduces fluorescence interference;

3. Loss-free, rapid detection, and identification, one-click operation;

4. Precision algorithm for detecting mixtures;

5. HD 5.5-inch capacitive touch screen with a superior sense of control;

6. 13-mega pixels HD cameras;

7. Support barcode, QR code scanning;

8. Accurate GPS positioning;

9. support 4G, GSM, GPRS, Bluetooth, WI-FI and other communication methods;

10. Support users to build their own genealogical library;

11. The test results can generate reports and export them

12. Endurance time of built-in lithium batteries: 4-6 hours

13. super lightweight (950 g) is easy to carry.

14. IP-67 dustproof and waterproof industry protection

SPECIFICATIONS

Model	LATR6600 Pro
Spectral Range	200-2500 cm^-1
Interface	WIFI, USB Type-C, Bluetooth, GSM
Operating System	Android
Operating Temperature	-20℃ – 50℃
Weight	<950 g
Touch Screen	5.5 inches, 1920×1080, multi-touch
Export Report	Test results report export pdf, txt including detect result, spectral info, evident pictures
Battery	4-6 h continuous operation
Resolution	8-15 cm^-1
Detector	TE cooled InGaAs
Size	220×110×45mm
Laser Power	0-600mW（Software adjustable）
Excitation Wavelength	1064 ± 0.5nm
Features	Super fluorescence suppression effect
Report output	Support exporting multi-information test reports (test results, spectrum information, photo forensics) txt, pdf, etc.
Models and application areas	Model	Spectral Library	Application Field
	ATR6600Pro	User-built database	Research field
	ATR6600Pro-DH	Drugs: heroin, methamphetamine, cocaine, K powder, fentanyl, alprazolam, etc. Precursor toxins: ephedrine, chloroform, ether, etc. Explosives: TNT, RDX, PETN, TATP, Ammonium Nitrate, Roxykin, Oak Tuo Jin etc. Hazardous chemicals: alcohol, sulfuric acid, gasoline, nitric acid, toluene, potassium dichromate, etc. Food safety: pesticides, illegal food additives, etc.	Public security, customs, subways, courts, prisons, public places, etc.
	ATR6600Pro-PH	Pharmaceutical raw materials and auxiliary materials testing, etc.	Pharmaceutical factory
	ATR6600Pro-GM	Jewelry and jade: diamond, agate, jade, etc.	Jewelry appraisal
	ATR6600Pro-IN	Chemicals, plastics, rubber, polymers, synthetics, etc.	Industrial application
	ATR6600Pro-FTN	Remifentanil, Ibufentanil, Lofentanil, Trifentanil, Ofentanil, Carfentanil, Alfentanil, Mifentanil, Fentanyl, Alfentanil Hydrochloride, More than 40 kinds of sufentanyl citrate, fentanyl, etc.
