DESCRIPTION
Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.
FEATURES
1. CFC Free refrigeration

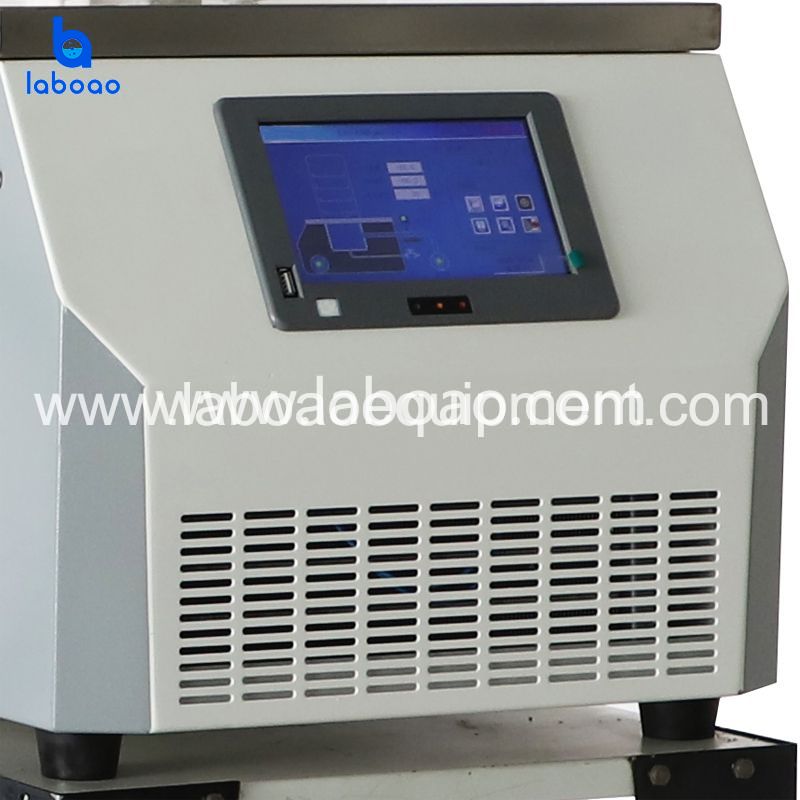

2. LCD display drying curves, English interface
3. Big opening of condenser, condenser with pre-freezing function
4. low noise compressor, good efficiency,long service life
5. Condenser and operation panel are all stainless steel
6. Drying Chamber with organic glass is safe and visible
7. Shelf and tray are stainless steel, tray spacing can be customized
8. Small volume , easy and convenient operation
9. Nitrogen valve is optional
10. Eutectic point test device is optional
11. Communication interface is optional
12. Cascade refrigeration is optional , applied for -80℃ device
SPECIFICATIONS
Model | LFD-10T |
Condenser capacity | 3-4 L /24h |
Condenser temperature | -56℃ (-80 ℃ optional) |
Vacuum degree | ≤5 Pa(airborne) |
Host dimensions(-56℃) | 615*450*370mm |
Host dimensions(-80℃) | 850*680*405mm |
Cooling | Air,draughty , ambient temperature≤25℃ |
Voltage | 220V ,50 Hz; 110V, 50Hz; 110V, 60Hz |
Power | 970W |
Rubber sealed valve | 24 pcs, for 24 ampoule , special requirement can be customized |
WHY CHOOSE US
- Factory direct sales with competitive price.
- Premium quality with CE & ISO certification.
- Strong product OEM & ODM customization capability.
- Promise production & on-time delivery.
- Perfect after-sales service, free product accessories.
- 15 years of experience in R&D and production of laboratory freeze dryer machine.
OUR FACTORY
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
PACKAGING & SHIPPING
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
CUSTOMER CASES
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
AFTER-SALE WARRANTY
Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
