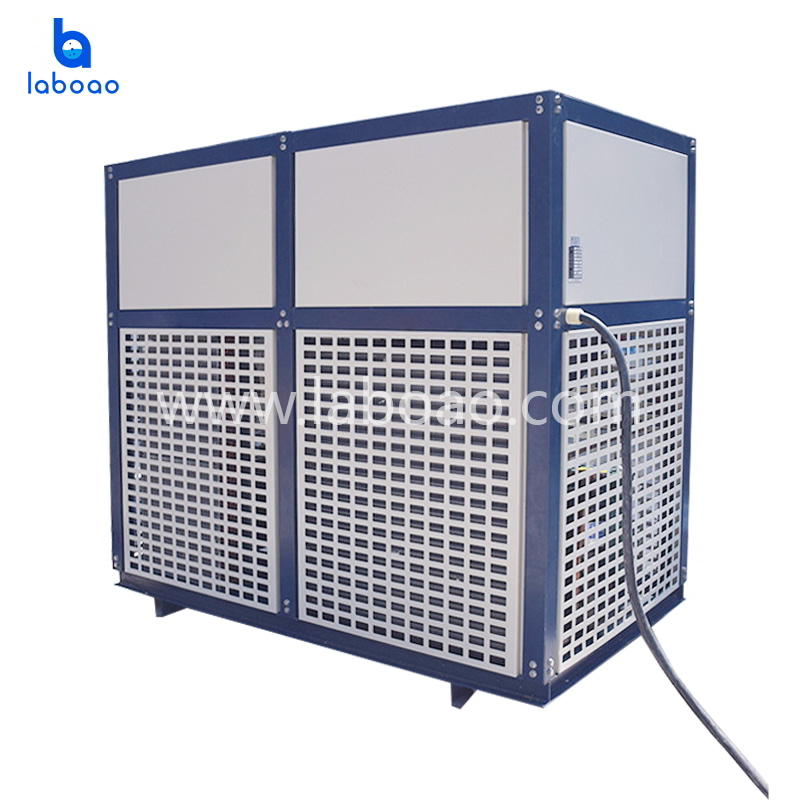

200L Large Scale Refrigerated Heating Circulator

LABOAO LGD series refrigerated circulating baths provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -80°C/-40°C to 200°C. Can customize -120°C as request.
  • BrandLABOAO
  • ModelLGD-200/40
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Recirculating Chiller Heater including: cooling function, heating function circulation system. It is composed of refrigeration unit, heating unit, circulation system and control system.

Refrigeration part is mechanically refrigerated by a fully enclosed compressor, composed of plate heat exchangers, expansion valves, and pressure protectors to meet the cooling requirements.

Heating part is the use of electric heating tubes to heat the circulating fluid. And through the built-in circulating pump and the external circulating pipeline, the refrigerant or heat medium is transported to the interlayer of the supporting equipment, which indirectly cools and heats the materials in the reactor.

During external circulation, connect the upper outlet pipe of the product to the lower inlet pipe of the kettle body, and the circulating fluid will return to the lower return port of the product through the pipe from the upper circulation port to form a complete circulation space.

FEATURES

1. The temperature accuracy is generally ±1°C, and an external sensor can be connected (the temperature difference accuracy is generally ±0.5°C).

2. The maximum temperature limit to prevent the equipment from losing control [If the maximum temperature of the equipment is exceeded, the equipment will automatically power off.

3. Has power supply protection.

4. Compressor overheating protection, the compressor will stop working when the compressor withstand limit is reached.

5. Water cooling has water flow and low water pressure protection.

6. All compressors are imported compressors (France, Denmark).

SPECIFICATIONS

Model

LGD-200/40

Operating temperature range

-40+200

Optimum ambient temperature

535

Environment humidity

70ventilation

Power supply

three phase380V/50HZ

Safety protection

Delay,   overcurrent, overheating, overtemperature, phase sequence, phase loss   protection

Display

LCD display, key operation

Temperature control accuracy

±1

Sensor

PT100

Total power

16360W

Heating power

9000W

[Compressor]Specification

Totally closed

[Compressor]Quantity

1

[Compressor]Power

7360W

[Compressor]Cooling capacity

22080W

[Circulation pump]Power

750W

[Circulation pump]Head

28M

[Circulation pump]Flow

56/min

[Circulation pump]Pressure

0.2MPa

Refrigerant

R22

Body material

Cold plate spray   anti-corrosion

Outer loop interface

6 points wire mouth with 6   points × 3 meters metal circulation pipe two

Circulating fluid

Grade A Silicone Oil

Machine size  (LxWxH)

829×1071×1410mm

Machine net weight

243KG

Package size

1190×880×1530mm,1.61m³

Package weight

310KG
