Pensky-Martens Closed Cup Flash Point Tester For Petroleum

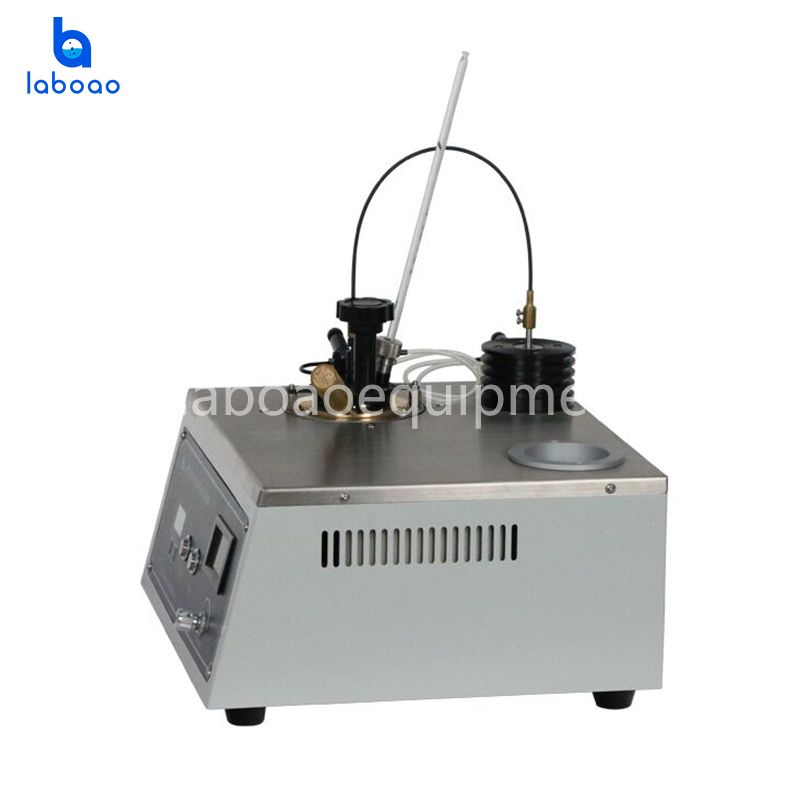

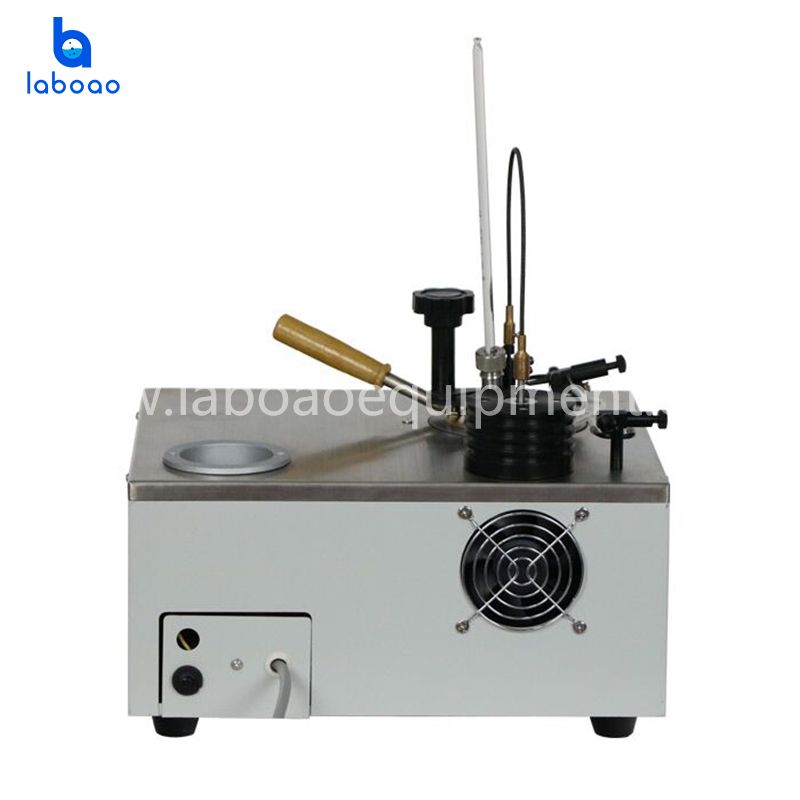

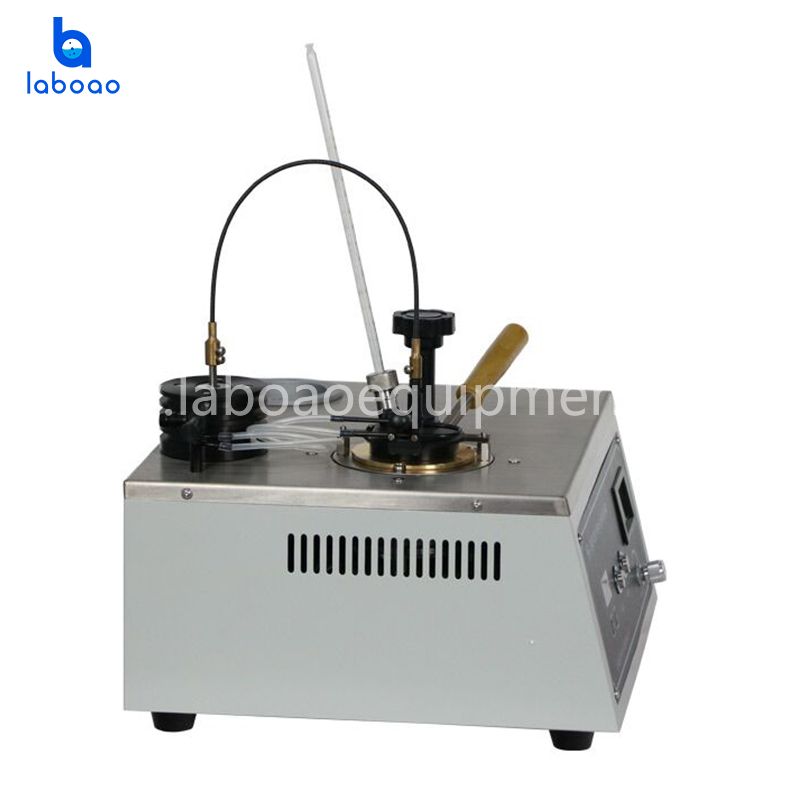

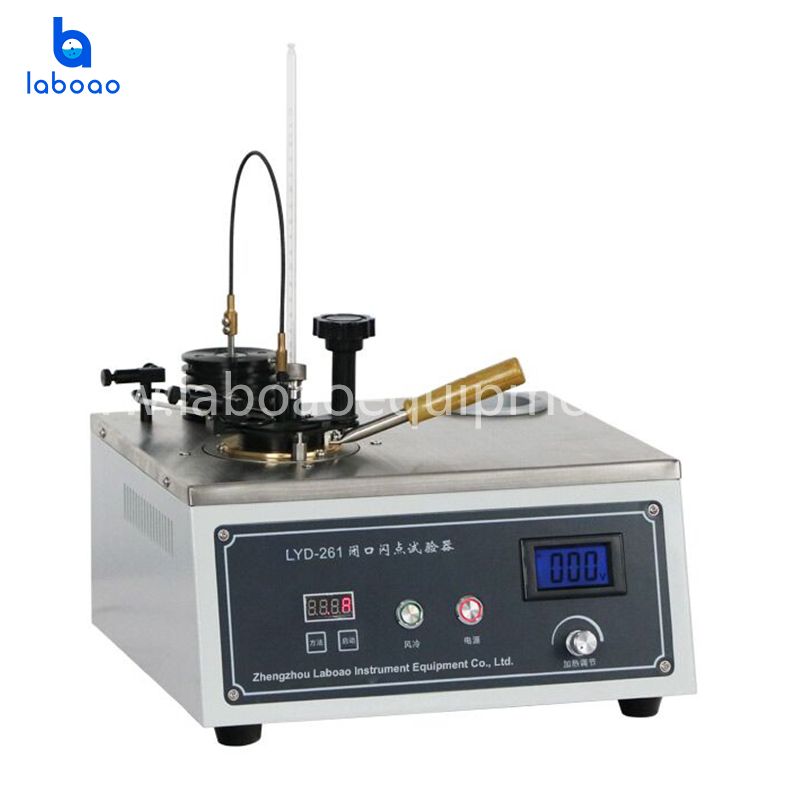

Closed cup flash point tester is used primarily to test flammable and combustible materials for shipping and safety regulations. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals.
  • BrandLABOAO
  • ModelLYD-261
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download


DESCRIPTION

This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens Closed Cup Method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.

FEATURES

1. This instrument is designed as per GB/T261 and ASTM D93.

2. The heating power is continuously adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.

SPECIFICATIONS

Model

LYD-261

Power supply

AC (220±10%)V, 50Hz

Total power consumption

≤650W

Heating device

The furnace body is made of   silicon carbide

Heating power is adjustable   from (0-600) w

Heating mode

Adjust by manual

Stir mode

Mechanical drive stirring

Stirring rate

Procedure A: (90120)RPM

Procedure B: (250±10)RPM

Oil cup

Inner diameter

50.7mm50.8mm

Depth

55.7mm56.0mm

The scribed line depth of   capacity of testing oil

33.9mm34.3mm

Capacity of testing oil

about 70ml

Igniting source

gasor   other civilian fuelsthe same below

Mercury-in-glass   thermometer

Scale -5℃~110,   division 0.5

Scale 20℃~150,   division 1

Scale 90℃~370,division   2

Ambient temperature

1535)℃

Relative humidity

≤ 85

Dimension

370mm×320mm×300mm

Net weight

7kg
