300℃ Explosion-proof Blast Drying Oven

Explosion-proof blast drying oven can be used in petroleum, chemical, military, explosives, medical, pharmaceutical, scientific research, laboratories and other related fields. It can be used in dangerous places such as temperature group T2~T4, which is flammable and explosive.
  • BrandLABOAO
  • ModelLEX-LG series
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

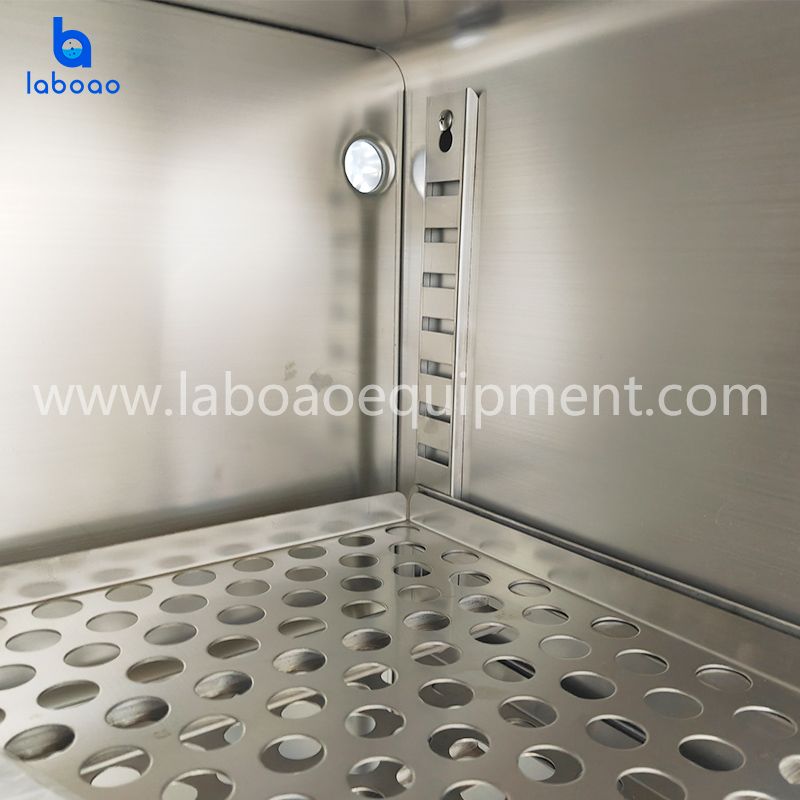

The shell of the explosion-proof blast drying oven is made of cold-rolled steel plate, the studio is made of mirror stainless steel plate, and silicon-aluminum fiber is used as insulation material. The interior of the working room is equipped with a grid-type stainless steel shelf, on which the test product can be placed for testing. The vertical double-air duct air jacket, the turbine centrifugal forced air supply, the temperature is uniform, and the structure is reasonable, and the appearance is beautiful and generous.

FEATURES

1. The cabinet adopts explosion-proof type, the equipment and electrical appliances adopt the overall explosion-proof technology, the explosion-proof control box, and centralized protection to prevent leakage of unsafe factors such as high temperature, static electricity, and sparks.

2. This equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts

3. The inner tank of the box is made of mirror stainless steel, the outer shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean

4. Vertical double air duct air jacket, centrifugal turbine forced air supply, uniform temperature.

5. Pull-out tray shelf, convenient and quick sampling

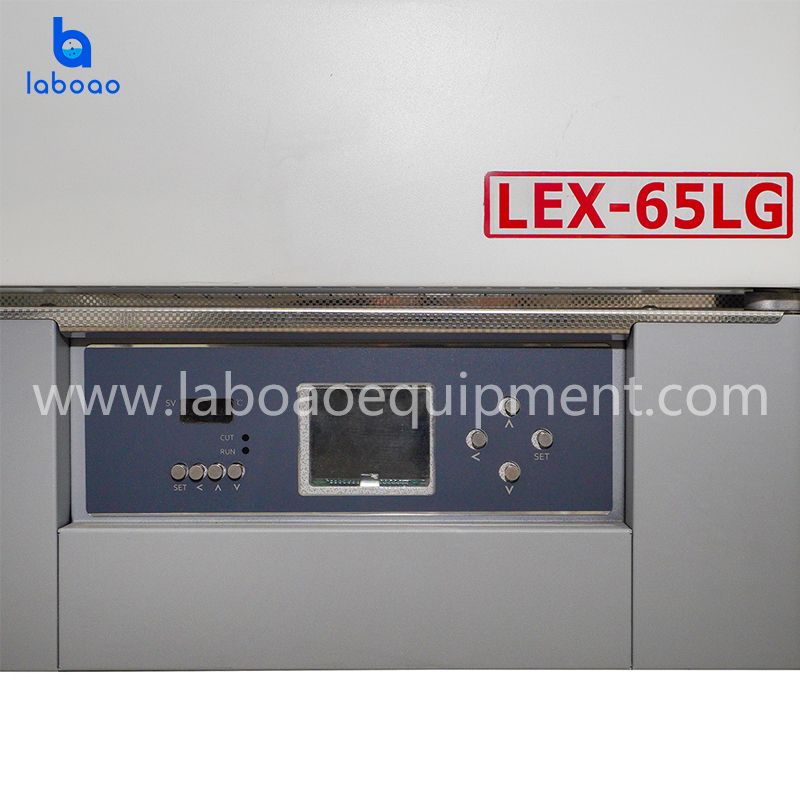

6. LCD multi-data full-screen operation display, power failure memory

7. Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start

8. Use explosion-proof 304 stainless steel heating tube for heating.

9. The exposed connecting wires are all made of explosion-proof flexible connecting tube sets, which can isolate static sparks and temperature leakage and ensure safety

10. Explosion-proof grade: Ex d e mb IIB T4 Gb

SPECIFICATIONS

Model

LEX-65LG

LEX-125LG

LEX-230LG

LEX-625LG

Mode

Dual duct forced   convection

Homogeneous air   supply in the rear air duct

Double air duct   rotary air supply

Operating Temperature   range

RT+10-300

Temperature   resolution

0.1°C

Temperature   fluctuation

±1

Temperature   distribution accuracy

±2.5%

Interior

Mirror stainless   steel plate

Exterior

Cold-rolled   steel plate with chemical-resistant coating on the surface

Insulation   material

Aluminum   silicate fiber

Heater

Stainless steel   heating tube (explosion-proof qualification)

Power rating

1.6kw

2.3kw

3kw

5.75kw

Exhaust hole

Inner diameter   28mm*1, top

Inner diameter   28mm*2, top

Temp control   method

LCD display dual   column PID control

Tem setting   method

Touch the   explosion-proof four-button setting

Temp   representation

Measured   temperature display: LCD upper display; set temperature display; LCD lower   display

Timer

0-9999 minutes   (hours), timing function can be selected (no, constant temperature timing,   running timing

Operation function

Fixed value   operation, timing operation, automatic stop, scheduled start.

External   connection line protection

Explosion-proof   flexible connecting pipe set (explosion-proof qualification)

Sensor

Explosion-proof   armored PT100 (explosion-proof qualification)

Additional   features

Deviation   correction, menu key lock, power failure memory, overheating preventer

Explosion-proof   grade

Ex de mb IIB T4   Gb

Inner size   (W*L*H)(mm)

400*360*450

500*450*550

600*500*750

660*760*1250

Outer dimensions   (mm)

535*490*820

636*580*930

735*625*1220

900*960*1840

Packing size(mm)

970*620*960

760*700*1060

898*814*1347

1051*1060*1949

Internal volume

65L

125L

230L

625L

Shelf load

15kg

Shelf number

9

13

17

7

Shelf space

35mm

150mm

Power supply   (50/60Hz) rated current

AC220/7.2A

AC220/10.5A

AC220/13.6A

AC380/8.7A

Net weight/gross   weight (kg)

43/49

60/66

84/100

113/137

Partition

2 pieces

Partition rack

4 pieces

Optional

Explosion-proof   grille, explosion-proof hinge, explosion-proof pressure relief door,   explosion-proof seven-inch touch screen instrument (with curve and program   function), explosion-proof mouse
