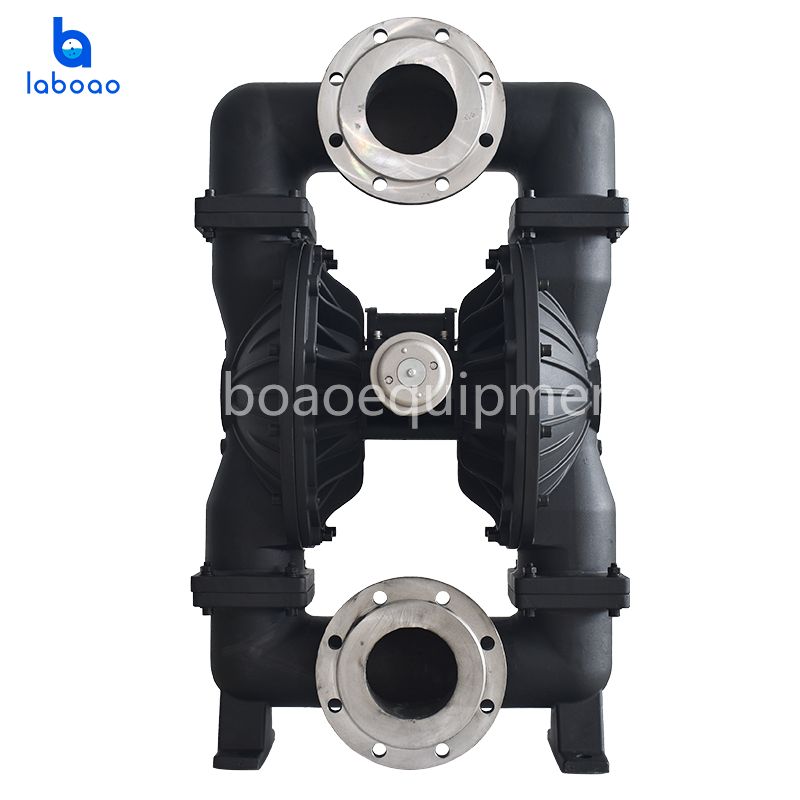

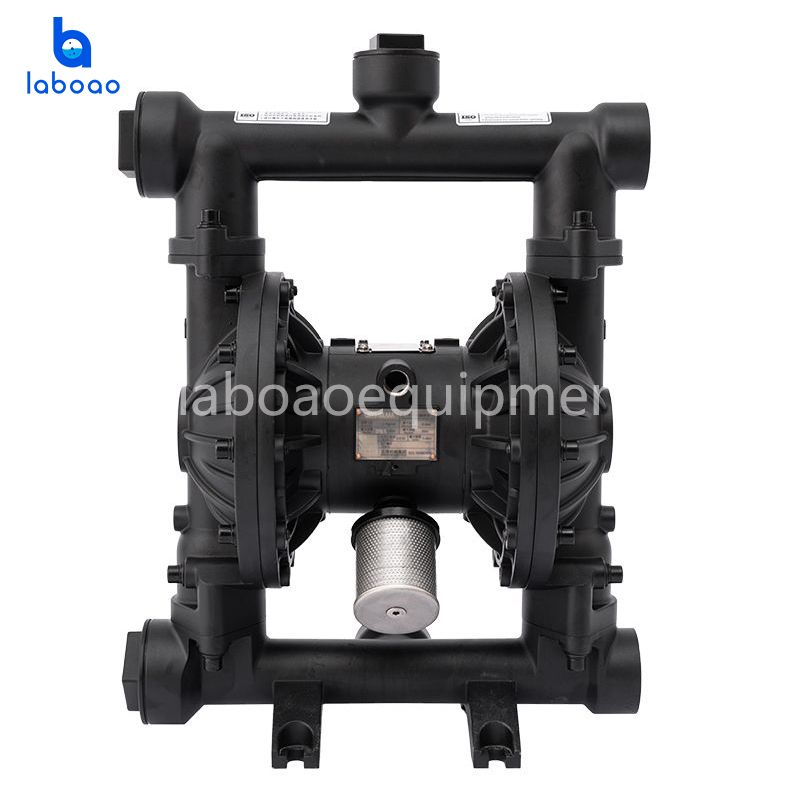

QBY Series And BFQ Series Pneumatic Diaphragm Pump

BFQ series and QBY3 series are the third generation of pneumatic diaphragm pumps, which use compressed air as the power source, and the volume change is caused by the reciprocating deformation of the diaphragm.
  • BrandLABOAO
  • ModelQBY/BFQ Series
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download


DESCRIPTION

Pneumatic diaphragm pump, using compressed air as the power source, is a positive displacement pump whose volume changes due to the reciprocating deformation of the diaphragm. It has six advantages such as reliable quality, long service life, low noise, low vibration, no crash, and fine workmanship. It can not only pump flowing liquids, but also transport some difficult-to-flow media. Many advantages of conveying machinery such as pumps, mud pumps and impurity pumps.

FEATURES

1. Six advantages: reliable quality | long life | low noise, fine workmanship, small vibration, no crash.

2. It can pump flowing liquid, and can also transport some medium that is not easy to flow. It combines many advantages of conveying machinery such as self-priming pump, submersible pump, canned pump, mud pump and impurity pump.

3. The lift and flow can be adjusted steplessly through the valve opening.

4. No rotating parts, no shaft seals, the diaphragm completely separates the pumped medium from the moving parts of the pump, and will not leak to the outside. And when the toxic, volatile or corrosive medium is pumped, it will not cause environmental pollution and endanger personal safety.

5. No need to use electricity, it is safe and reliable to use in flammable and explosive places.

SPECIFICATIONS

Model

Maximum   flow (L/min)

Maximum   lift (m)

Maximum   suction lift (m)

Outlet   pressure (kg)

Caliber   (DN)

Inlet   port (in)

Particle   Diameter (mm)

Air   Consumption (scfm)

QBY4-10

22

70

4

7

10

1/4

1.5

6.3

QBY4-15

22

70

4

7

15

1/4

1.5

6.3

QBY3-20

57

70

4.5

7

20

1/4

2.5

12.7

QBY3-25

57

70

4.5

7

25

1/4

2.5

12.7

QBY3-32

151

84

5.48

8.4

32

1/2

3.2

23.66

QBY3-40

151

84

5.48

8.4

40

1/2

3.2

23.66

QBY3-50

378.5

84

5.48

8.4

50

1/2

4.8

32

QBY3-65

378.5

84

5.48

8.4

65

1/2

4.8

32

QBY3-80

568

84

5.48

8.4

80

1/2

6.4

45

QBY3-100

568

84

5.48

8.4

100

1/2

6.4

45

QBY3-125

1041

84

7.6

8.4

125

3/4

10

82.6

BFQ-25

116

84

5.48

8.4

25

1/2

3.2

23.66

BFQ-40

378.5

84

5.48

8.4

40

1/2

4.8

32

BFQ-50

568

84

5.48

8.4

50

1/2

6.4

45

BFQ-80

1041

84

7.6

8.4

80

3/4

9.4

82.6
