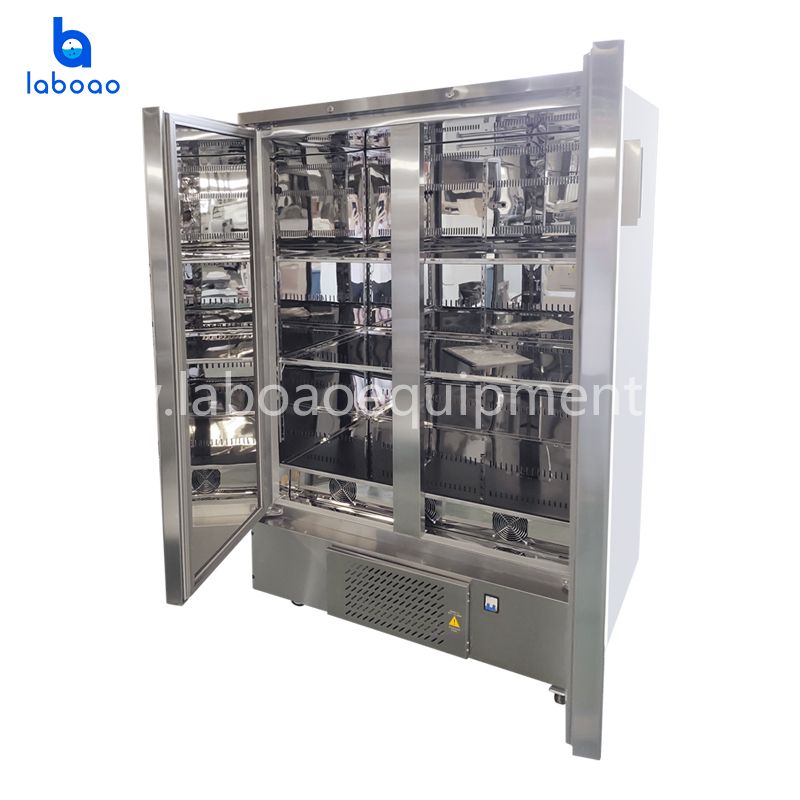

The stainless steel biochemical incubator is suitable for environmental protection, sanitation and epidemic prevention, drug inspection, agriculture and livestock, aquatic product research, colleges and universities and production departments. dedicated constant temperature equipment.
1.Microcomputer control, 7 inch color LCD touch screen, real-time reading data curve analysis.
2.Programmable control mode: 50 segments of programming can be achieved.
3.Three-level permission password setting, audit tracking function, data output in PDF format, unchangeable, conducive to experimental data protection and tracking query.
4.Hot start and power failure memory function, power again from the power point according to the original set value to continue to run.
5.Intelligent low temperature long-term refrigeration anti-icing technology, to ensure that OC above no refining, no icing.
6.The box is the whole foam, insulation layer is greater than 5CM, the thermal conductivity is smaller, the temperature retention, stability, reduce energy consumption by 30%.
7.German EBM cooling fan, low noise, quiet, durable.
8.Fully enclosed imported brand Embraco compressor, low noise, low energy consumption, smooth operation.
9.Built-in low power 220V waterproof power supply, BOD and other active experiments.
10.485 communication, can achieve data acquisition, monitoring, remote setting.
Model number | LPX-168T | LPX-260T | LPX-300T | LPX-380T | LPX-450T | LPX-530T | LPX-820T | LPX- 1000T | LPX- 1260T | LPX- 1500T |
Working power supply |
220V/50hz | |||||||||
Rated power | 800w | 800w | 800w | 800w | 1000w | 1000w | 1200w | 1200w | 1500w | 1800w |
Operating power | 500w | 550w | 600w | 600w | 800w | 800w | 1000w | 1000w | 1300w | 1500w |
Volume | 168L | 260L | 300L | 380L | 450L | 530L | 820L | 1000L | 1260L | 1500L |
Open-door structure | Single door | Single door | Single door | Single door | Single door | Single door | Double doors | Double doors | Three doors | Three doors |
Temperature control range | 0-70℃ | |||||||||
Fluctuation degree | ≤±0.5℃ | |||||||||
Temperature distribution accuracy | ±0.5℃ | |||||||||
Warming time | 0 ° C rises to 40 ° C for no more than 50 minutes | |||||||||
Cooling time | The temperature drops from 40℃ to 10℃ for no more than 50 minutes | |||||||||
Controller | 32-bit stand-alone chip | |||||||||
Display mode | Color LCD touch screen | |||||||||
Temperature resolution | 0.1℃ | |||||||||
Running mark | The screen displays functions and fault information | |||||||||
Timing function | 1.9999hours | |||||||||
Sensor | PT100 | |||||||||
Refrigerant | 134a | |||||||||
Built-in、lighting | 304 Mirror stainless steel/Built-in LED lighting | |||||||||
Outer fitting | Wenli Stainless Steel (anti-fingerprint slag treatment) | |||||||||
Heat cut-off mode | Polyurethane one time foaming integral forming | |||||||||
Number of laminates | 3 layers, the height can be adjusted freely | |||||||||
laminate | 304 Mirror Stainless Steel, Hollow Forming (not wire welded) | |||||||||
Bulkhead bearing | 30Kg | |||||||||
Data storage | USB fast storage, data export, can record 100,000 data (more than 6 months temperature data) | |||||||||
Communication function | Port 485 for remote device monitoring | |||||||||
Power supply | Built-in 220V, low load power supply (waterproof type) | |||||||||
Internal chamber size （WxDxH mm） | 500*545*615 | 510*480*1050
| 500*455*1300 | 500*575*1300 | 600*575*1300 | 600*685*1300 | 1100*575*1300 | 1100*690*1300 | 1700*570*1300 | 1350*800*1400 |
Overall dimension（WxDxH mm） | 600*760*1250 | 600*700*1590 | 600*700*1940 | 600*800*1940 | 720*820*1940 | 700*900*1940 | 1210*820*1940 | 1210*920*1940 | 1800*720*1940 | 1500*1000*1940 |
Matching | Mobile phone APP remote control, embedded printer, add layer, PC analysis and monitoring software, electronic door lock and door opening magnetic card. Can be customized according to a variety of functions, sizes, materials of the experimental box. | |||||||||
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
