Safe, reliable and automatic controlled small fast bench sterilization equipment, suitable for medical and health, pharmaceutical, scientific research and other units. It provides rapid sterilization for items that are resistant to saturated steam, such as surgery, dental, ophthalmic instruments, glassware, medicines, culture media and fabric dressings, and food.
1. Indicator shows working status
2. Fast sterilization 4-6 minutes
3. Sterilization temperature and sterilization time can be set by yourself
4. Steam water internal circulation system, does not discharge steam to the outside, the environment is clean and dry
5. Over temperature, over pressure automatic protection function
6. Water break protection control
7. Automatically discharge cold air

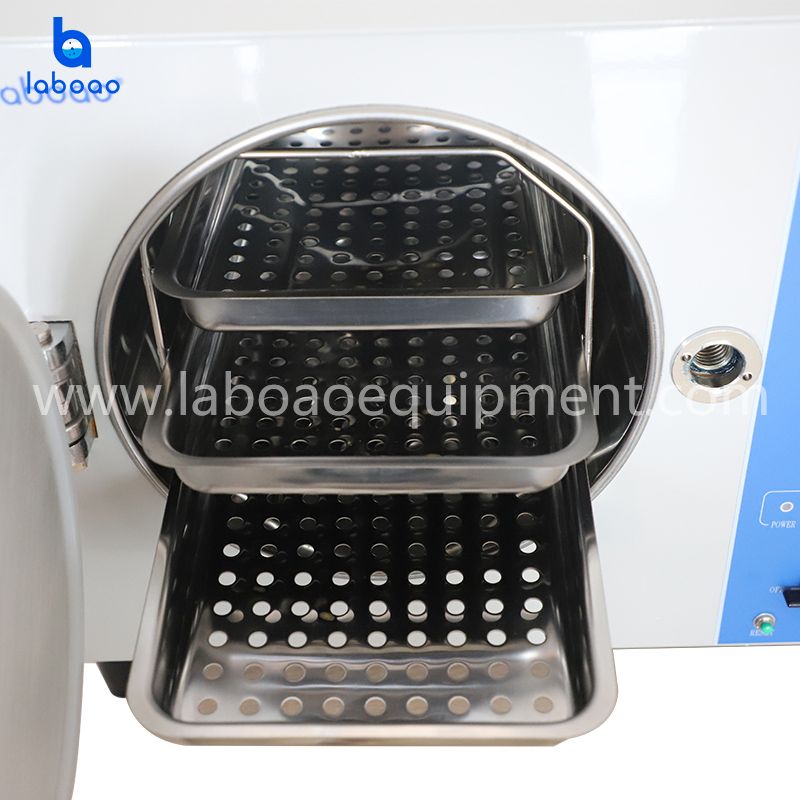

8. Equipped with three layers of stainless-steel disinfection tray
9. The sterilization room is made of high-quality stainless steel
10. Buzzer reminds automatic shutdown at the end of the sterilization cycle
L-20J | L-24J | |
Sterilizing chamber volume | 20L（φ250×420 mm） | 24L（φ250×520 mm） |
Maximum working pressure | 0.22Mpa | |
Maximum working temperature | 134℃ | |
Adjustment of temperature | 105-134℃ | |
Timer | 0-60 min | |
Heat average | ≤ ± 1℃ | |
Power | 1.5 KW / AC220V 50Hz (AC 110V 60HZ) | |
Sterilizing plate | 340x200x30mm(3pieces) | 400x200x30mm (3pieces) |
Dimension | 480x480x380mm | 580x480x384mm |
Package dimension | 700x580x500mm | 800x580x500mm |
G. W/N. W | 44/40kg | 50/45kg |
