1L Rotary Evaporator With Dual Digital Display

Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • BrandLABOAO
  • ModelLRE-2000B
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.


FEATURES

Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.

1. the move up and down lift system adopts motor revolved lifting structure.

2. the condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space.

3. the axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts use teflon + teflon two-way sealing, and the effect is good.

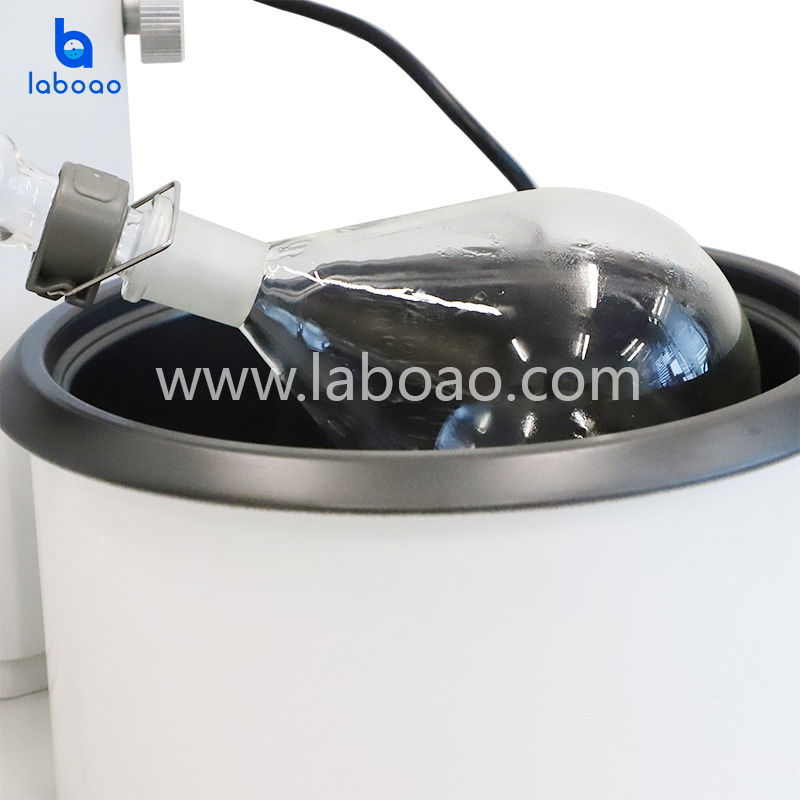

4. it is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.

5. the device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant.

6. B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.

SPECIFICATIONS

Model

LRE-2000B

Voltage/Frequency

220V/50HZ

Whole power

1260W

Rotary power

40W

Lifting power

20W

Heating power

1200W

Vacuum degree

0.0098Mpa

Rotary flask volume

Eggplant shape 1L,Φ131mm/24# standard port

Receiving flask volume

Round shape 1L,Φ131mm/35# ball mill port

Rotary speed

0-200rpm/min

Temp.cotrolling range

room temperature -99

Temp. accuracy

±1

Hosting lifting distance

120mm

Condenser size

Φ85*430H(mm) ,down with 35# ball mill port

Condensation area

0.17

Charging valve

19# standard plug valve, feed nozzle(pagoda-shape connectors),outer   diameter 10mm

Vacuum suction nozzle

Pagoda-shape connectors, outer diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape connectors, outer diameter 12mm

Pot bravery size

Φ235*145H(mm) about 6.6L3.5kg

Overall dimensions (W*L*H)

630*400*(690-810)mm

Net weight

20.5kg

Packing dimensions

620*620*490mm, 0.19m³

Packing weight

25kg
