-86°C Ultra Low Temperature Freezer With Dual System

This product is designed and manufactured for long-term storage of a variety of biological products, including viruses and bacteria. Red blood cells, white blood cells and skin. Applications in blood banks, hospitals, epidemic prevention services, research institutions, electronic laboratories and chemical factories, bioengineering institute and marine fisheries corporation.
  • BrandLABOAO
  • ModelLDF-86VD Series
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

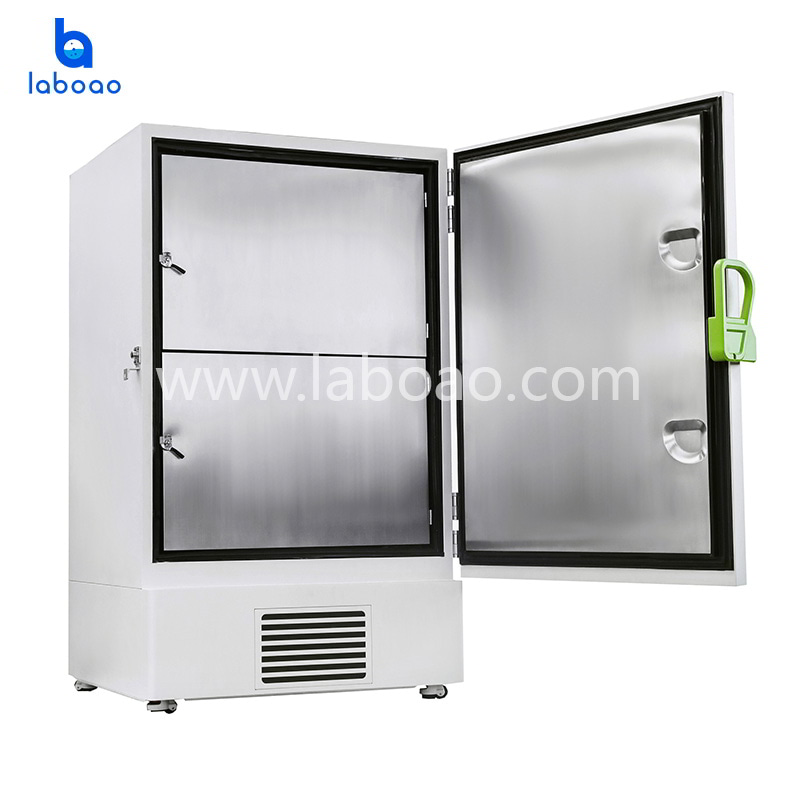

The dual system's microprocessor control with 2 separate interior doors that can be opened independently to minimize frost accumulation in the room. The unique door seal design minimizes the temperature loss when the door is opened. The stainless steel handle ensures that the door opens, even in the case of frost. 7-inch touch screen, all data is displayed.The screen is easy to observe and writes a short record of the board. This will be passed to the next user green handle, making it easy to use 2 locks.

FEATURES

1. Two independent refrigeration systems are used, one of which can maintain a temperature of -70 in one set.

2. Dual system can work at the same time to achieve rapid cooling, and the cooling time is shortened by more than 50%.

3. Touch screen, temperature curve, alarm information record and query, user management mode, self-diagnosis

4. Two independent refrigeration systems are used, one of which can maintain the temperature of the cabinet at -80 °C when the fault occurs.

5. Standard test hole, USB interface and remote alarm interface

6. High temperature and low temperature alarm in the box, sound and light alarm, optional SMS notification and other alarm methods

7. Increased cooling rate by 20% and uniformity by 30%

8. A refrigeration circuit that doubles the system components compared to a conventional two-stage cascade system

9. Double-machine cascade refrigeration system using fluorine-free environmentally friendly alkane refrigerant, energy saving 50%

10. VIP(Vacuum Insulation Panel) second generation vacuum insulation board technology, the refrigerator has good insulation performance, designed for entering the elevator

11. Product structure optimized for biological sample libraries, providing storage space of up to 40,000 samples

12. When power is restored, the simultaneous start of all equipment will cause a large impact on the power grid, which may cause the circuit breaker to trip; the specially designed equipment delay start function for this case may make the equipment

13. The inner door is detachable for easy defrosting and cleaning of customers;

SPECIFICATIONS

Specifications

Model

LDF-86V408D

LDF-86V588D

LDF-86V838D

Shelf/drawer QTY

Stainless   steel shelf/3

Stainless   steel shelf/3

Stainless   steel shelf/3

Cooling

 Direct cooling

 Direct cooling

 Direct cooling

Defrost

Manual

Manual

Manual

Refrigerant

Mixed-gas

Mixed-gas

Mixed-gas

Power Consumption(kWh/24h)

11

15.5

24

Noisedb)

53

50

55

Ambient temperature

10~32

10~35

10~32

Temperature range

-40~-86

-40~-86

-40~-86

Cooling system

Compressor brand/QTY

SECOP/2

SECOP/2

SECOP/2

Sensor

PTC

PTC

PTC

Temperature controller

Microprocessor

Microprocessor

Microprocessor

Display

LCD display

LCD display

LCD   display

Power

Voltage/frequencyV/Hz)

220/50Hz

220/50Hz

220/50Hz

PowerW)

725w

800w

840W

CurrentA)

5.7

6.9

6.5

Material

Inside material

Stainless   steel

Stainless   steel

Stainless   steel

Outside material

Color   sprayed steel

Color   sprayed steel

Color   sprayed steel

Insulation

PURF

PURF

PURF

Size

CapacityL/cu.ft)

408

588

838

NT./GT.kg)

215/245

249/275

275/305

Exterior size(W*D*H)(mm)

872×940×1945.5

872×1100×1994.5

1160×1085×1994.5

Interior size(W*D*H)(mm)

606×575×1180

606×738×1310

894×718×1310

Package size(W*D*H)(mm)

950×960×2110

970×1140×2190

1280×1120×2210

Frozen Racks

Racks

16(5X4,4X4)

16(5X5)

24(5X5)

Boxes (2 Inches)

288

400

600

Samples(2ml)

28800

40000

60000

Alarm

High/low temperature

Y

Y

Y

Power failure

Y

Y

Y

Abnormal voltage

Y

Y

Y

Sensor error

Y

Y

Y

Filter screen check

Y

Y

Y

Thermostat failure

Y

Y

Y

Low battery

Y

Y

Y

Condenser clean

Y

Y

Y

High ambient temperature

Y

Y

Y

Door ajar

Y

Y

Y


Castor

Y

Y

Y

Inside door

2

2

2

Test hole QTY/diameter

1/25MM

1/25MM

1/25MM

USB port

Y

Y

Y

Chart recorder

/

/

/

Data logger

Optional

Optional

Optional

Power failure backup   system(alarm)

72h

72h

72h

Remote alarm port

Y

Y

Y

CO2 back up system

Optional

Optional

Optional

LN2 back up system

Optional

Optional

Optional

Certification

Certification

ISO.CE

ISO.CE

ISO.CE

WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of -86°c ultra low temperature freezer machine.
