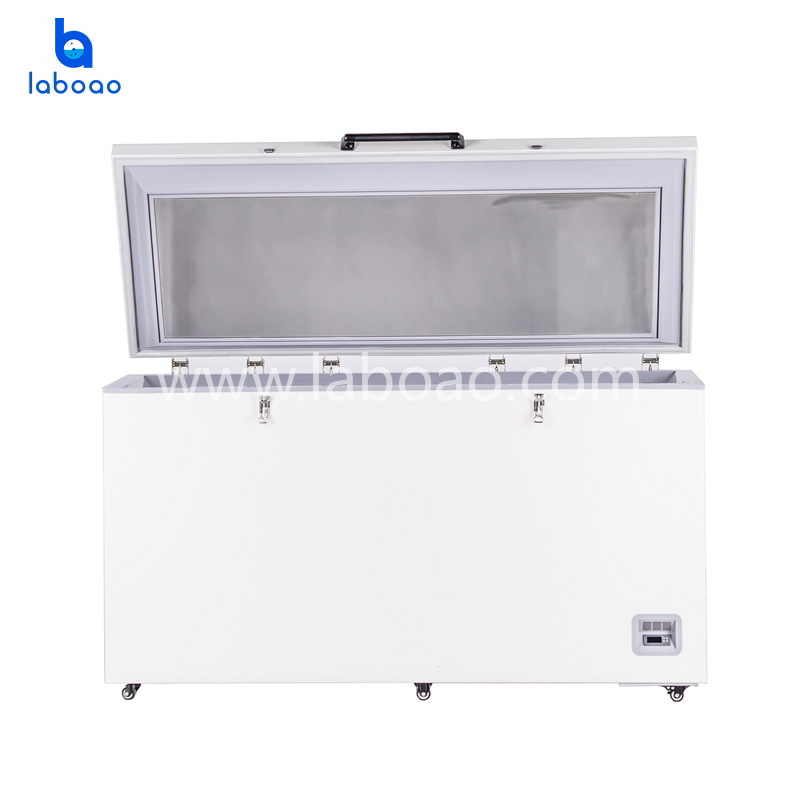

-60℃ Ultra Low Temperature Medical Freezer With Password Protection

This product is designed to store vaccines, blood plasma.,and many other biological materials. installations can be found in researching institutions and clinical sites in life science, electronic testing and medical markets.
  • BrandLABOAO
  • ModelLDF-60H/LDF-60V Series
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

The -60°C Medical Freezer is the with universal casters,mobile more convenient Directional casters. High-end professional controller with full function.With Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.

The shell of the cabinet is sprayed with cold plate, the inner wall is made of high quality 304 stainless steel, durable. The precision reaches 0.1 °C, the temperature inside the box is adjustable from -25°Cto -60°C. The password protection function prevents the operating parameters from being adjusted at will.

FEATURES

1. Adopt international famous brand high-precision temperature control system, the temperature inside the box is adjustable from -25°C to -60°C

2. Imported brand-name compressor, low noise, fluorine-free, environmentally-friendly and efficient refrigerant

3. Optimized single-stage self-cascading refrigeration system with fast cooling speed, low power consumption and large cooling capacity

4. The shell of the cabinet is sprayed with cold plate, and the inner wall is made of high quality 304 stainless steel, which is durable.

5. Password protection function to prevent arbitrary adjustment of operating parameters; power failure protection

6. With high and low temperature alarm, sensor fault alarm function, and sound buzzer and light flashing alarm mode 0° C

7. Efficient noise reduction structure design, leading the industry

8. Efficient heat exchange copper tube evaporator, air-cooled refrigeration system design, fast cooling speed, low power consumption

SPECIFICATIONS



Specifications

Model

LDF-60V50

LDF-60H105(C)

LDF-60H485(D)

Shelf/drawer

Shelves

/

/

Cooling method

Direct cooling

Direct cooling

Direct cooling

Defrost

Manual

Manual

Manual

Refrigerant

CFC-Free

CFC-Free

CFC-Free

Power consumption(kWh/24h)

6.5

4.2

8.05

Noisedb)

49.5

53

55

Ambient temperature

10~32

10~32

10~32

Temperature range

-25~60

-25~60

-25~60

Cooling system

Compressor brand/QTY

SECOP/1

CUBIGEL/1

CUBIGEL/1

Sensor

PTC

NTC

PTC

Temperature controller

Microprocessor

Microprocessor

Microprocessor

Display

Digital display

Digital display

Digital display

Power

Voltage/FrequencyV/Hz)

220/50Hz

220/50Hz

220/50Hz

PowerW)

420W

280W

450W

CurrentA)

2.8

1.85

2.85

Material

Inside material

Stainless steel

Stainless steel

Stainless steel

Outside material

Color sprayed   steel

Color sprayed   steel

Color sprayed   steel

Insulation

PURF

PURF

PURF

Size

CapacityL/cu.ft)

50\1.76

105\3.70

485\17.12

NT./GT.kg)

75/95

62/70

124/138.5

Exterior size(W*D*H)(mm)

540×620×1145

680×580×935

1655×755×915

Interior size(W*D*H)(mm)

361×429×406

480×380×665

1455×525×665

Package size(W*D*H)(mm)

607*707*1253

740*685*1040

1750*900*1040

Alarm

High/low temperature

Y

Y

Y

Sensor error

Y

Y

Y

Thermostat failure

Y

Y

Y


Castor

Y

Y

Y

Inside door

Y

/

/

Test hole QTY/diameter

1/18MM

1/25MM

1/25MM

USB port

/

/

/

Temperature recorder

Optional

Optional

Optional

Power failure backup   system(alarm)

/

/

/

Other

Certification

ISO9001, 13485, 14
  001, CE

ISO9001, 3485, 14
  001, CE

ISO9001, 13485, 14
  001, CE
