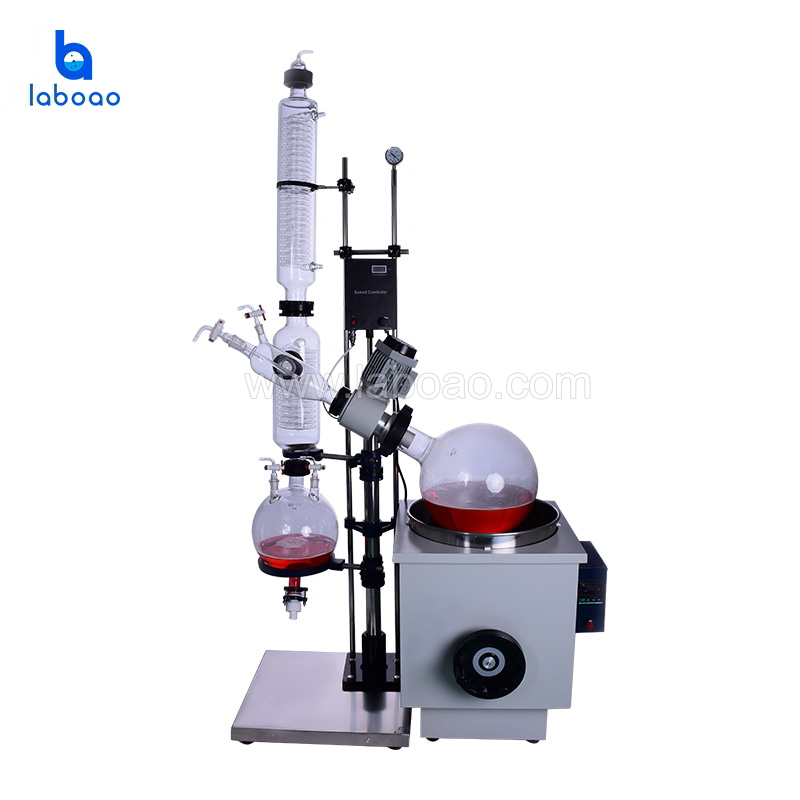

10L rotary evaporator

Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • BrandLABOAO
  • ModelLRE-1002
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

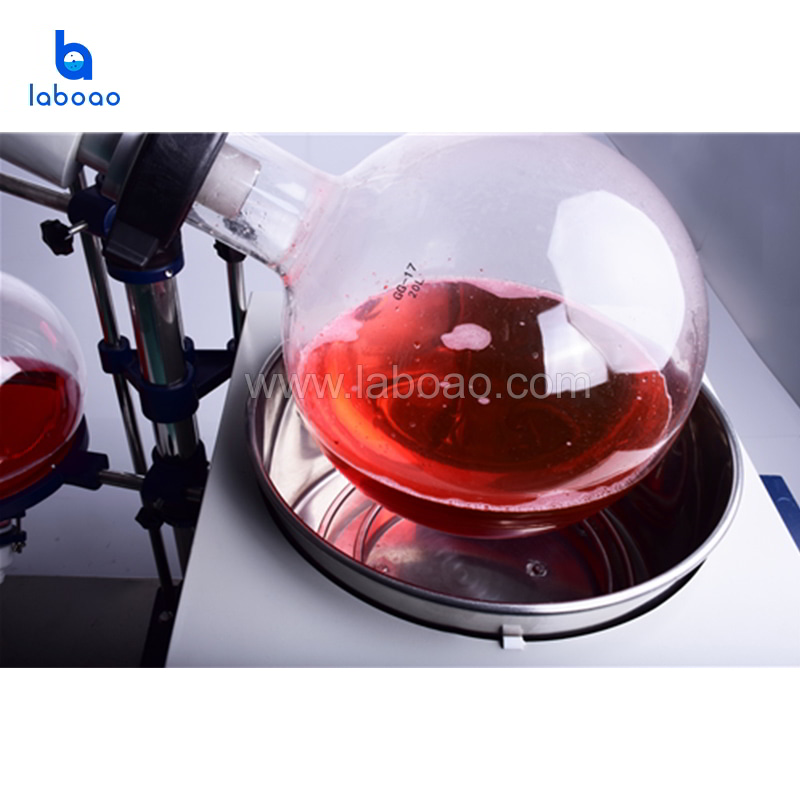

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.


1. Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .

2. USES the main and secondary efficient double condenser to ensure high recovery rate.

3. Rotating bottle with nut connection, it is easy to load and unload.

4. There is tap valve under the collection bottle mouth, recycled solvent is very fast.

5. Feeding continuously.

6. Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

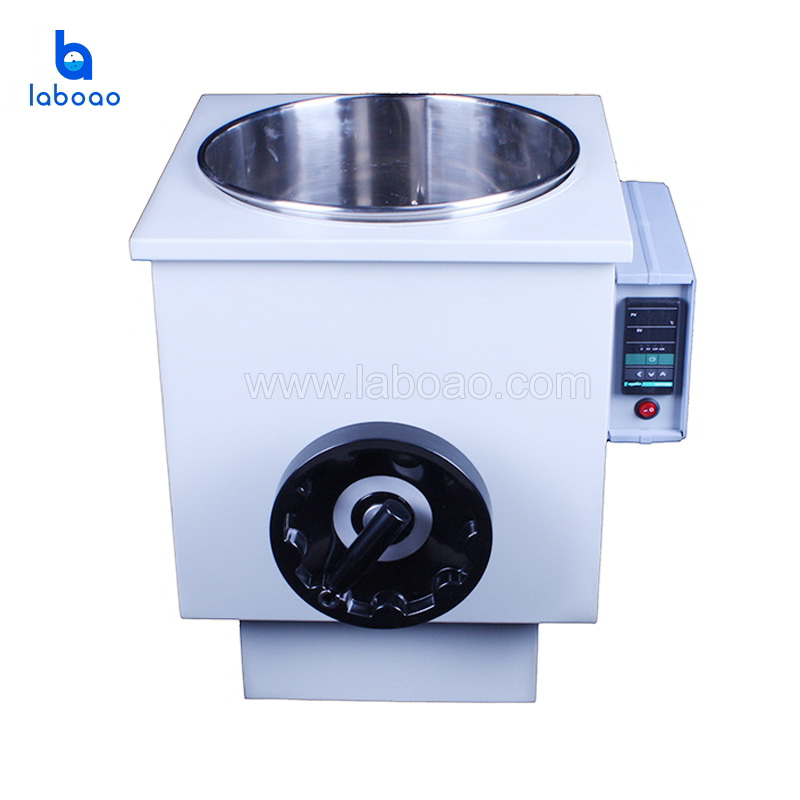

7. Water bath with digital and continuous temperature controlling.

8. Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.





Glass material


Frame material

Stainless steel

Pot shell Material

Spray anti-corrosion  490*430*540mm

Pot bravery material

Stainless steel    350*220mm

Plate size


Evaporator flask

10L    95Flange port

Collect flask

5L     50Flange port

Vacuum degree


Rotary power


Rotary speed


Heating power

3KW 220V/50Hz

Heating temp.range


Temp. accuracy


Lifting disctance




Packing size(mm*mm*mm)

1340*350*450  1340*590*700  0.76CBM

Packing weightKG


Configuration list

Speed mode

Electronic stepless adjustable   speed

Rotor speed display

digital display

Temp. display

K type sensor with digital display

Temp. control

Intelligent temp.control

Sealing method

PTFE sealing

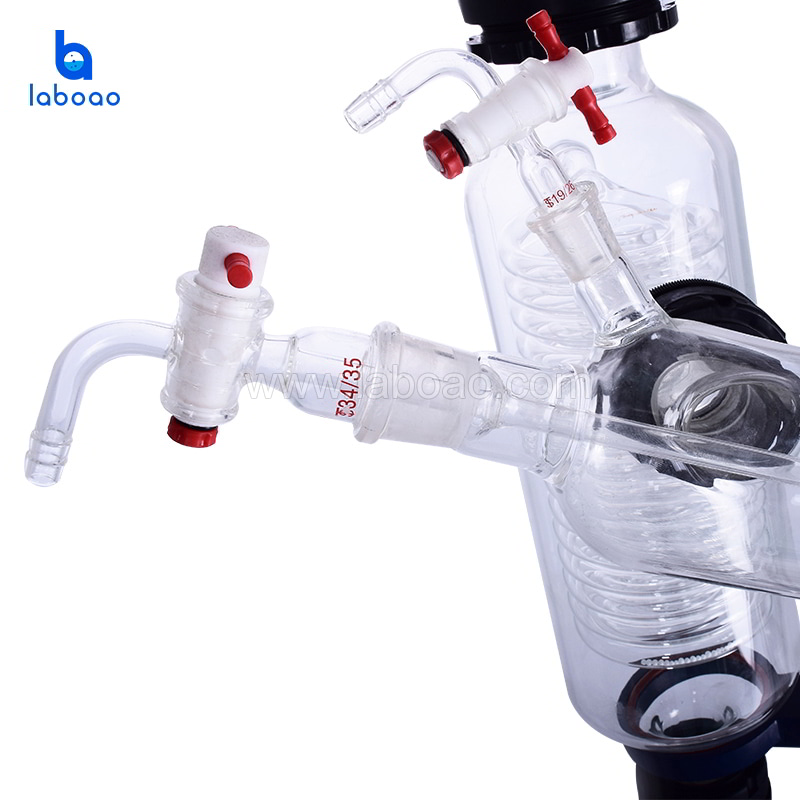

Vertical efficiency three reflux   condenser,Main condenser120*640Secondary condenser135*470


non-return valve control

Lifting mode

Bath Manual lifting

  measurement methods

19#Standard port

Continuous feed

34#Standard port feeding valve

Discharge valve

PTFE discharge valve,¢50Flange port

Vacuum display

Vacuum gauge


Lifting mode

Automatic electric lifting

Collecting device

Double collect bottle


Explosion-proof   motor&Explosion-proof inverterEX120W

Frame material optional

Spray or spray PTFE

Bath material

Fully304Stainless steel
