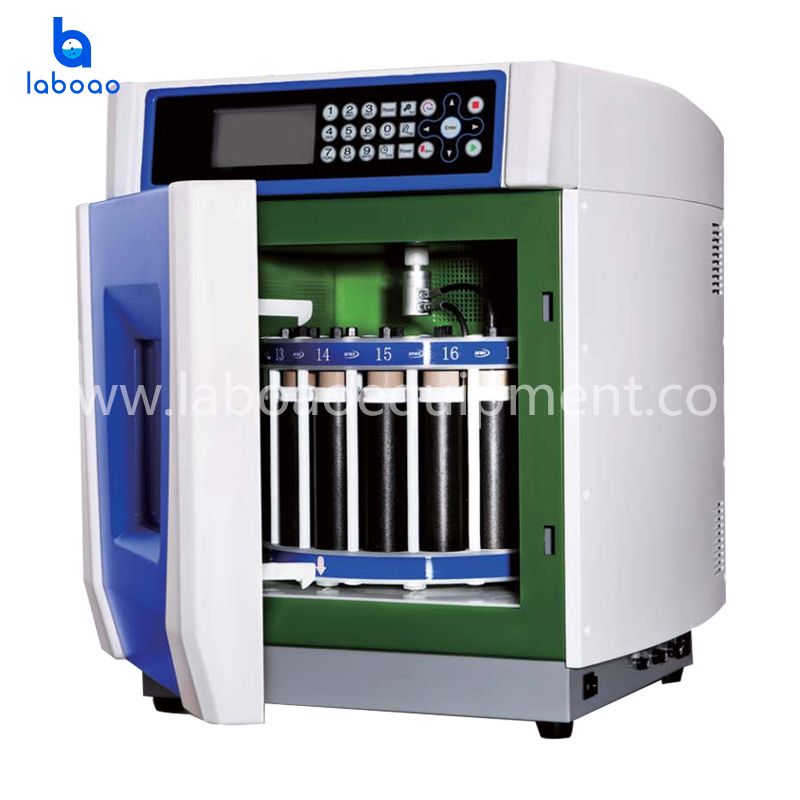

Ultra High Throughput Closed Microwave Digestion System Ultra High Throughput Closed Microwave Digestion System
Ultra High Throughput Closed Microwave Digestion System Ultra High Throughput Closed Microwave Digestion System

Ultra High Throughput Closed Microwave Digestion System

the master series high-throughput closed microwave digestion and extraction synthesis workstation is an effective combination of high-throughput and ultra-high pressure technology. it can be adapted to a variety of digestion tank rotors to meet the application requirements of different users.
  • BrandLABOAO
  • ModelMASTER
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

MASETER Series is versatile for 16-vessel independent frame-type high pressure digestion rotor, 18-vessel carousel integrated ultrahigh pressure digestion rotor, 40/100-vessel ultrahigh throughput carousel rotor and 16-200ml-vessel carousel large capacity rotor etc., meets different experiment application requirements. Other core technologies including airplane Xtra Fiber digestion outer vessel, quantitative Safety Bolt patented design, UTH-Caro design of high throughput carousel, unique piezoelectric crystal pressure measuring technology and Uni-Turn technology of one direction continuous rotation of digestion rotor in chamber.

FEATURES

1. The outer tank of Xtra Fiber, a high-strength composite fiber that will not burst, burst or tear, is corrosion-resistant and easy to clean.

2. Piezoelectric crystal pressure measurement technology to ensure that the main control tank is free of cross-contamination

3. Safety Bolt not only ensures safety but also high accuracy of test results

4. Uni-Turn technology for continuous rotation of the digestion rotor in the same direction to increase uniformity and reliability

5. Rugged and durable industrial-grade furnace chamber structure strengthens the impact resistance of the furnace chamber

6. The high-strength alloy tank rack rotor allows the digestion tank to withstand higher pressure and digests insoluble samples

7. The UTH-Caro design of the high-throughput tank rack stirs the microwave magnetic field evenly during rotation to ensure uniform digestion of high-throughput samples

8. 15 minutes of rapid cooling of the digestion tank

9. The temperature measurement of the main control tank is combined with the infrared full tank temperature scanning to monitor the temperature in all the digestion tanks

10. Various supporting operating tools make the operation of high-throughput digestion easy and simple

11. A variety of rotors and digestion tanks meet the needs of various types of users

SPECIFICATIONS

Model

MASTER

Power

220-240 VAC, 50/60Hz, 16A

Microwave source

2450MHz, dual magnetron design 6 layer   steel structure and popup cushioning explosion-proof sliding chamber door   (Auto-Pop) design, electronic and mechanical dual-control door lock

Installed power

3600W

Maximum output power

2200W, non-pulse continuous automatic   variable frequency control

Cavity

65L stainless steal industrial grade   professional chamber, multi-layer chemical resistant PFA coating

Door design

6 layer steel structure and popup   cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic   and

mechanical dual-control door lock

Video monitoring system (Optional)

Wireless video monitoring system,   mobile phones and tablets can realize the observation and monitoring of the   reaction

Pressure measurement and control   system

Piezoelectric crystal pressure sensor,   pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa

Temperature measurement and control   system

High-precision platinum resistor   temperature sensor, temperature range :0-300°C, accuracy ±1; IR temperature sensor as optional,   temperature range :0-300°C, accuracy ±1

Outer vessel material

Explosion-proof outer vessel made of   aerospace composite fiber. high temperature and pressure resistance reach 600and 66

Mpa(10000psi).

Inner vessel material

Modified TFM material

Chamber exhaust system

High-power anticorrosion axial fan, 20   minutes cooling time (from 200°C to 60°C)

Working environment

0-40°C, 15-80%RH


Supporting various flux digestion tanks and rotor specifications:

Name of reaction vessel

16-vessel high pressure rotor

14-vessel high/medium pressure large   volume rotor

18-vessel ultrahigh pressure rotor

40-vessel high/medium pressure rotor

100-vessel high/medium pressure rotor

Model of reaction vessel

GP-100

LV-200

XXP-100

HP-40

HP-100

Processing capacity in one batch

16

14

18

40

100

Magnetic stirring function

none

optional

optional

none

none

Inner vessel material

TFM

TFM

TFM

TFM

TFM

Outer vessel material

Xtra Fiber

Xtra Fiber

Xtra Fiber

Xtra Fiber

Xtra Fiber

Frame structure of digestion rotor

Independent frame structure of each digestion   vessel

Independent frame structure of each digestion   vessel

Independent frame structure of each digestion   vessel

Independent frame structure of each digestion   vessel

Independent frame structure of each digestion   vessel

Reaction vessel volume

100ml

200ml

100ml

45ml, 70ml

15ml, 30ml, 50ml

Maximum design pressure

15MPa(2200psi)

8Mpa (1000psi)

18MPa (2600psi)

10MPa (1450psi)

10MPa (1450psi)

Maximum design temperature

310

260

320

300

300

Maximum   sample amount

0.5-1.0g

1-2g

0.5-1.0g

0.5-1.0g

0.5-1.0g

Typical application

Foods, soil, metal, alloy, plastics,   cosmetic, agricultural products and semiconductor

environmental samples and biological samples

Indissolvable metal and mineral, plastic,   ceramics, Extreme microwave reaction

Food, environment (such as waste water,   sludge and soil etc.) biological samples

geological samples and biological samples
