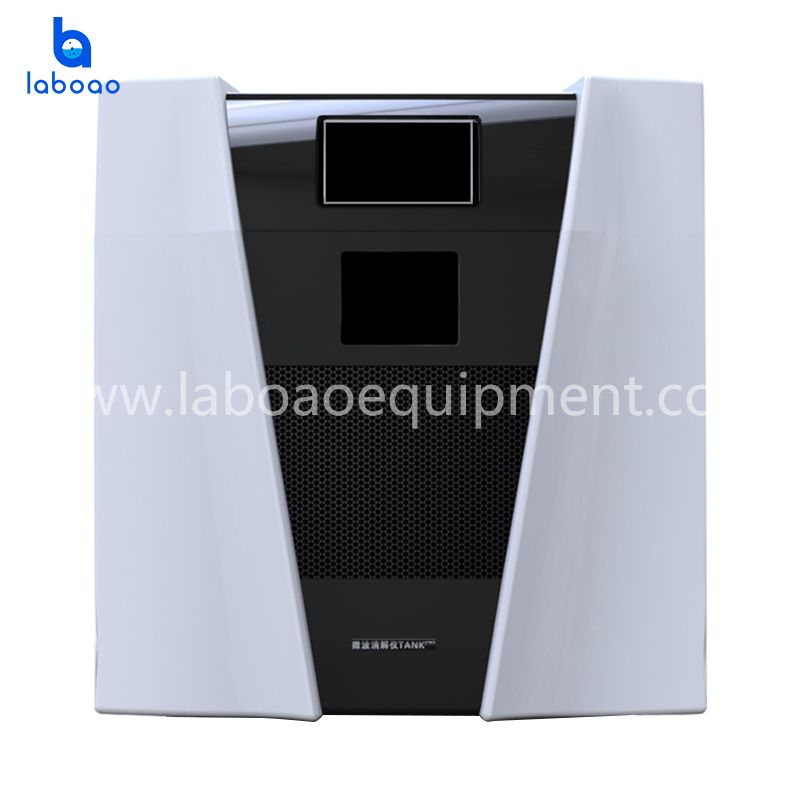

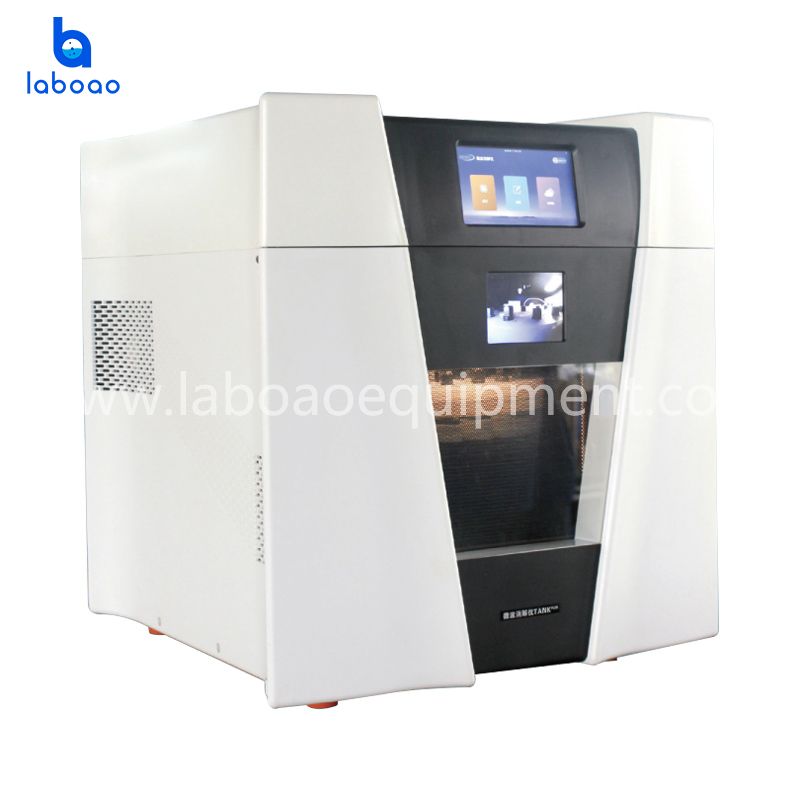

Closed Microwave Digestion Extraction System Closed Microwave Digestion Extraction System
Closed Microwave Digestion Extraction System Closed Microwave Digestion Extraction System

Closed Microwave Digestion Extraction System

MDS-6G is built to meet the needs of a wide range of applications in the market, and is widely used in various fields such as heavy metal detection, organic pollutant extraction, and material synthesis. The product has the characteristics of safe operation, lightness and flexibility, and durability. Its compact furnace cavity design, high-power microwave output, and high-pressure closed digestion tank can achieve quantitative and safe pressure relief while improving the digestion capacity of the sample.
  • BrandLABOAO
  • ModelMDS-6G
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.
Download

DESCRIPTION

The outer vessel of MDS-6G exclusively made by ultrastrength aerospace composite fiber is invincible in anti-explosion, and its performance indicators such as corrosion resistance, high temperature/impact/pressure resistance are far better than that of the widely used modified PEEK engineering plastics vessel (this material is fusible at high temperature, fragile at high pressure and explosive by chemical corrosion). The compressive strength of aerospace composite fiber is up to 10000psi and temperature 500-600℃, fundamentally eliminating safety risks to operator in use.

FEATURES

1. The outer tank of Xtra Fiber, a high-strength composite fiber that will not burst, burst or tear, is corrosion-resistant and easy to clean.

2. Piezoelectric crystal pressure measurement technology to ensure that the main control tank is free of cross-contamination

3. SafetyBolt not only guarantees safety but also high accuracy of test results

4. Uni-Turn technology for continuous rotation of the digestion rotor in the same direction to increase uniformity and reliability

5. 15 minutes of rapid cooling of the digestion tank

SPECIFICATIONS

Model

MDS-6G

Power

220-240 VAC   50/60Hz 8A

Microwave   frequency

2450MHz

Installed   power

1800W

Maximum   output power

1000W, non-pulse   continuous automatic variable frequency control

Turntable   design

Load 8   MP-100 closed digestion vessels at same time

Pressure   measurement and control system

Piezoelectric   crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy   ± 0.01MPa

Temperature   measurement and control system

High-precision   platinum resistor temperature sensor, temperature range :0-300°C,   accuracy ±1℃

Outer vessel   material

Explosion-proof   outer vessel made of aerospace composite fiber

Inner vessel   material

TFM material

Chamber   exhaust system

High-power   anticorrosion axial fan, exhaust speed: 3.1 m3/min

Operating   ambient temperature

0-40℃

Working   environment humidity

15-80%RH

Whole   physical size

450 x 515 x 510mm (W   x D x H)

Net weight

40 KG


Name

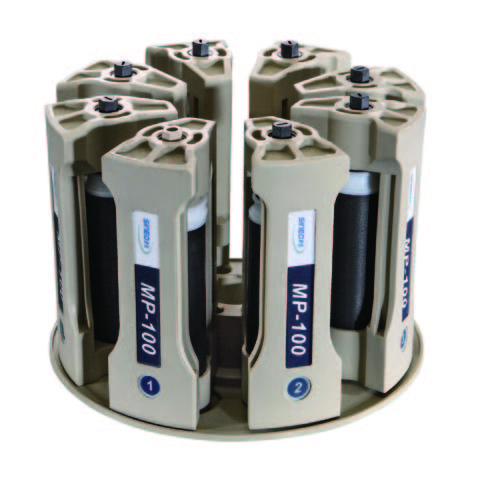

MP-100   closed high-pressure reaction vessel

Maximum Pressure

15MPa(2250psi)

Maximum sustained temperature

300 °C

Maximum working temperature

250 °C

Inner vessel volume

100ml

Outer vessel material

Ultra strength aerospace composite fiber

Inner vessel material

TFM (Modified PTFE)

Batch volume

Standard 6 cans, the maximum can be increased   to 8 cans



WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of microwave digestion machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).

Inquiry the Closed Microwave Digestion Extraction System

Get Factory Price in 1 Hour?
